Bosch Rexroth 3842992903
SECTION PROFILE SP 2/B-50
- MPN
- 3842992903
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842992903?

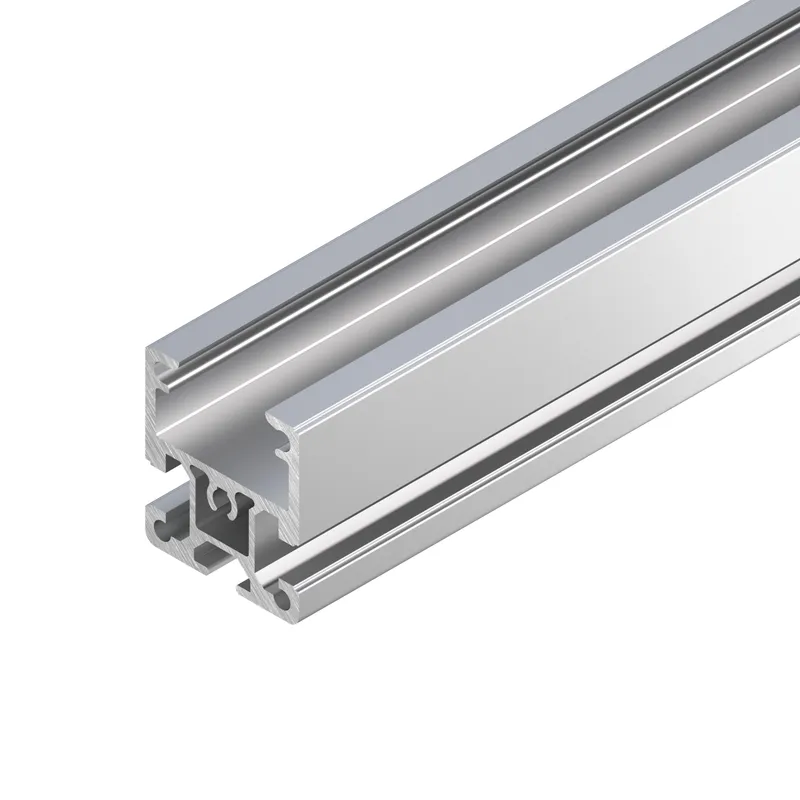

Section Profile SP 2/B-50
Used for self-construction of low-profile conveyor units and the conveyor medium belt
For use in conjunction with all AS 2/B-... drive modules, UM 2/B return units and FP 2/B guide profiles
Longitudinal grooves for easy mounting
Suitable for installation at manual workplaces
Specifications

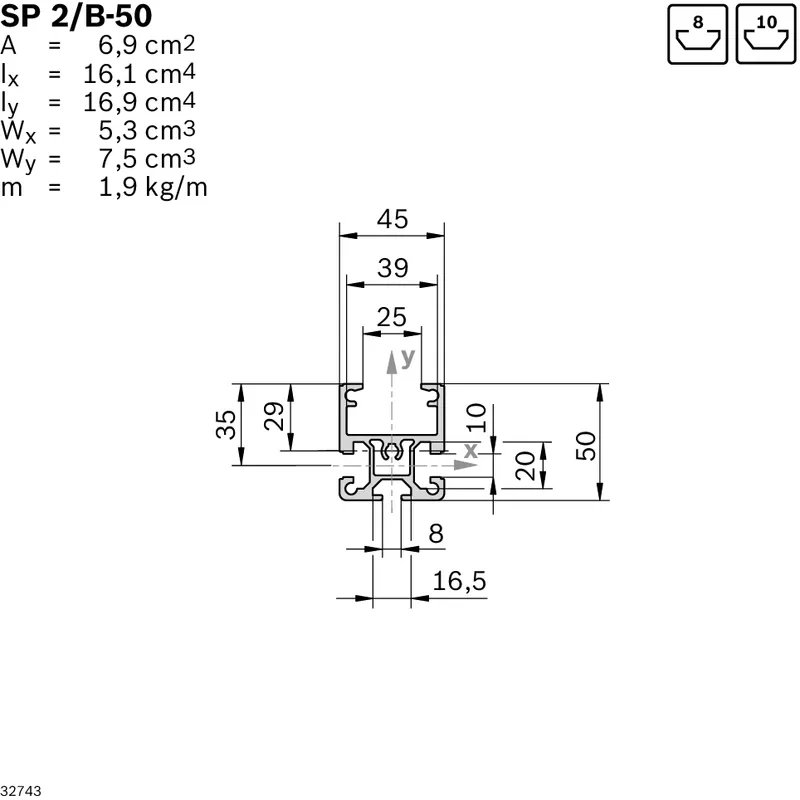

Specifications
| Condition on delivery | Variable length |
| Profile slot | 10; 8 |
| Color | Natural |
| Length max [L max] [mm] | 6000 |
| Length min [L min] [mm] | 60 |
| Mass [m] [kg] | 1.9 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 46.2 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 16.9 |
| Profile surface [A] [cm²] | 6.9 |
| Moment of resistance in the x-direction [Wx] [cm³] | 5.3 |
| Moment of resistance in the y-direction [Wy] [cm³] | 7.5 |
| Material | Aluminum, anodized |
| Weight [kg] | 0 |
