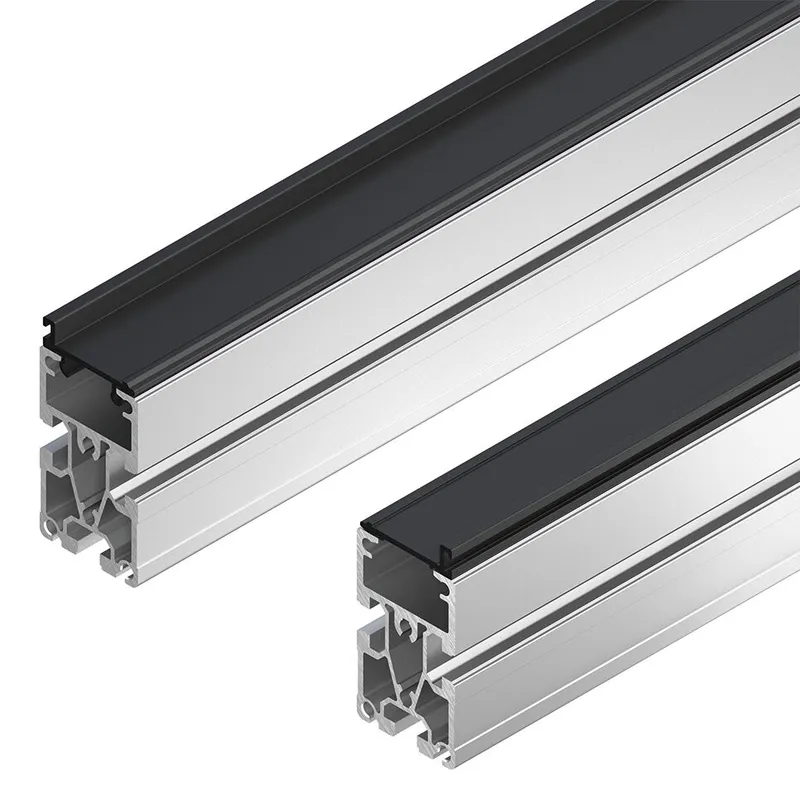

Bosch Rexroth 3842992650
CONVEYOR SECTION ST 2/B
- MPN
- 3842992650
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842992650?
The section is used for self-assembly of conveyor units in conjunction with the drive module AS 2/B-... and the return unit UM 2/B
For conveyor unit self-assembly
Easy insertion of the guide profile into the section profile
Easily replaceable if worn out
Conveyor medium: Belt (suitable for use in an EPA)
Can be combined with workpiece pallet WT 2/LS
Can be combined with scraper
Specifications
Specifications
| ESD | Yes |
| Length max [L max] [mm] | 6000 |
| Length min [L min] [mm] | 60 |
| Dry room [%rF] | <1 |

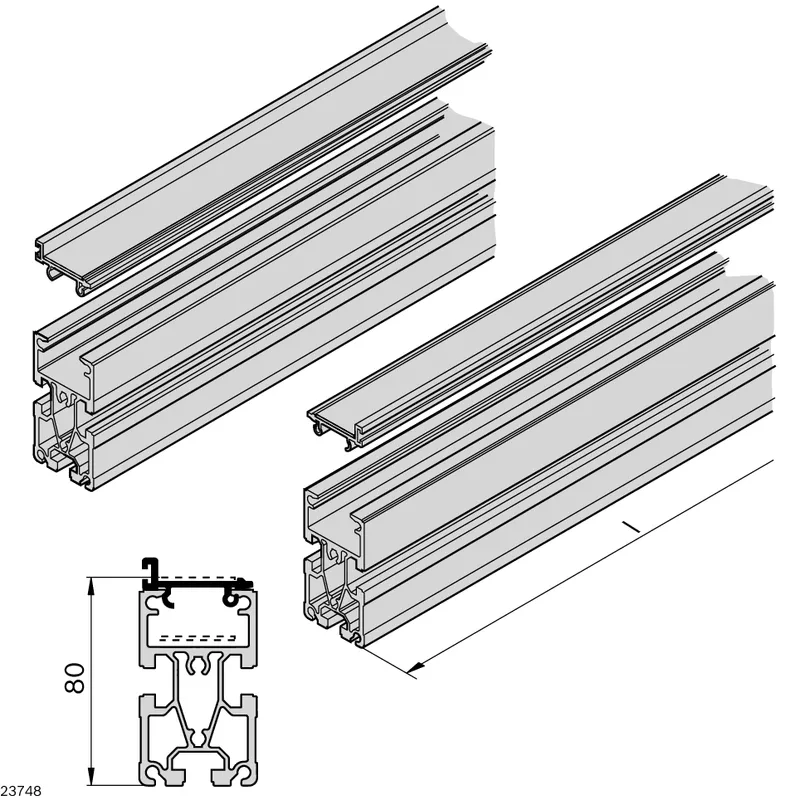

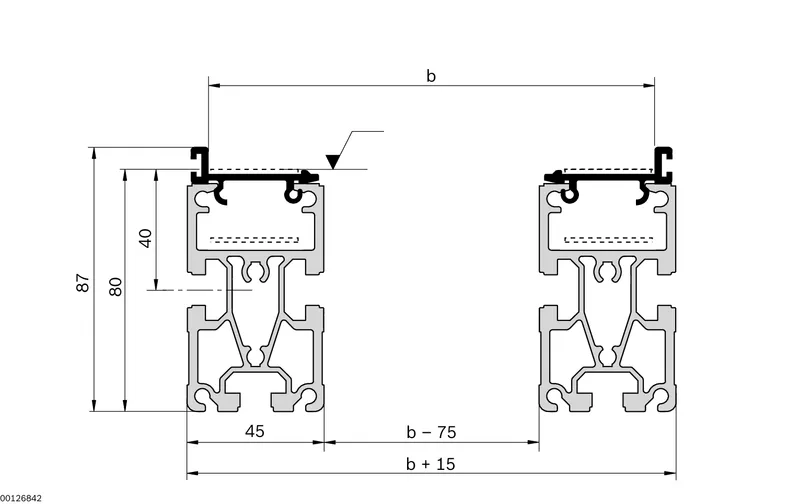

| Conveying level height [b] [mm] | 80 |
| Scope of delivery | 2x FP 2/B guide profile; 2x SP 2/B section profile |
| Delivery information | Not assembled |
| Material information | Guide profile: Polyamide; Section profile: Aluminum, anodized |
| Clean room classification | ISO class 7 |
| Conveyor medium | Belt (suitable for use in an EPA) |
| Recommended accessories | Cross Connector; Profile connector; Section supports SZ 2/... |
| Weight [kg] | 0 |
