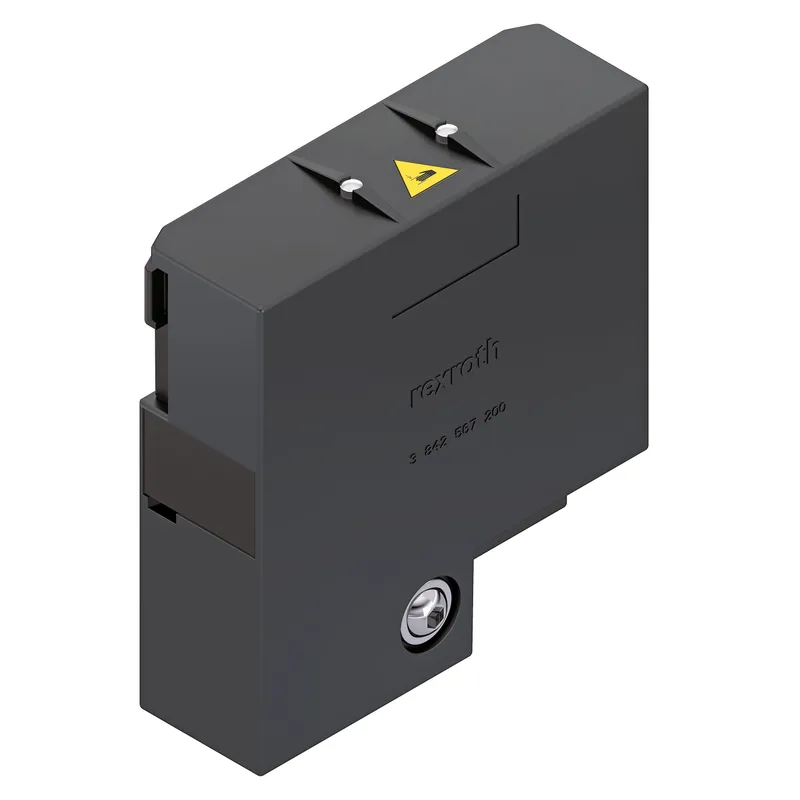

Bosch Rexroth 3842567200
ROCKER WI 2/M-H
- MPN
- 3842567200
- Category
- Rockers
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842567200?
The rocker WI 2/M-H is used for area monitoring on transfer systems for heavy-duty applications. The metal element in the rocker switch uses a sensor to enable detection. Alternatively, a pneumatic cylinder switch can be used to convert the rocker activation directly into a pneumatic signal.
Area monitoring, even for heavy-duty applications

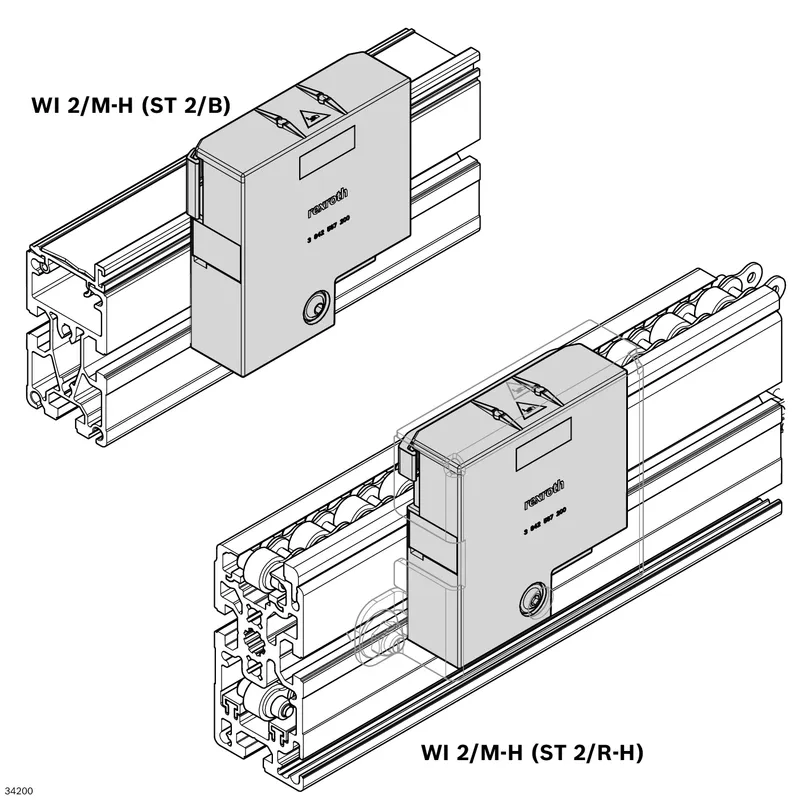

Can be combined with WT 2/H, WT 2/F-H, WT 2, WT 2/F, WT 2/LS
Simple and compact construction
Suitable for use in an EPA
Spring-mounted rocker switch for mechanical detection of workpiece pallets
Depending on the WT weight, an additional stop or damper must be provided to absorb the impact pulse
Not suitable for use as a stop for workpiece pallets arriving from the transverse conveyor

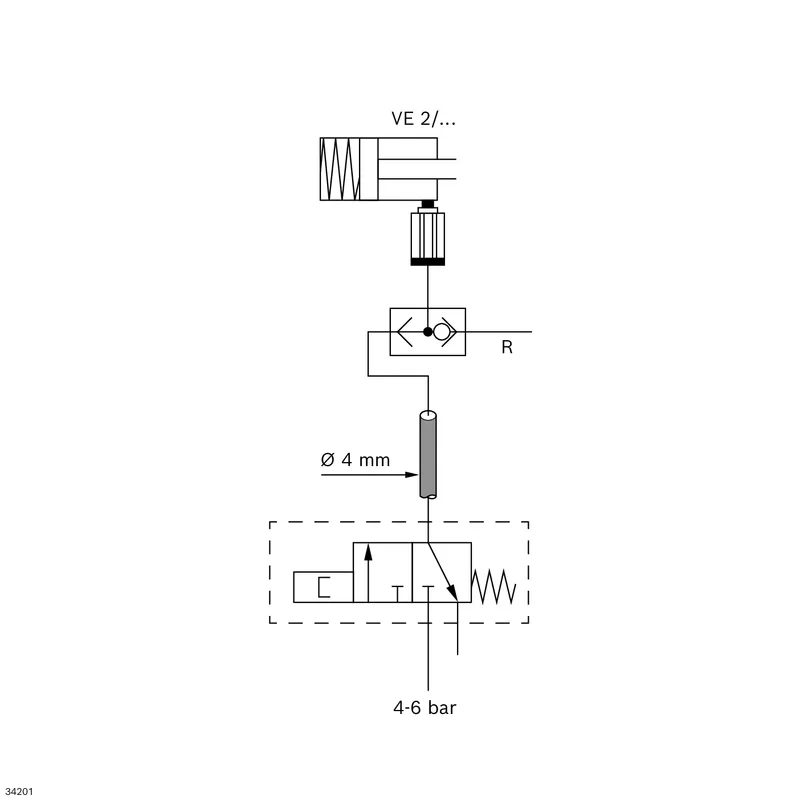

Simple, purely pneumatic accumulation pressure regulation can be established in conjunction with a stop gate VE 2
Specifications
Specifications
| ESD | Yes |
| Delivery unit | 1 |
| Scope of delivery | Including adapter clips for different workpiece pallets and fastening material for installation on conveyor sections ST 2/... or belt sections BS 2/... |
| Monitoring range [mm] | 95 |
| Material information | Housing: PA66 |
| Clean room classification | ISO class 7 |
| Recommended accessories | Pneumatic cylinder switch; Protective cover 3842567202; Sensor M12x1 with rated switching distance SN = 4 mm (for rated switching distance ≥ 4 or ≤ 4 a correct query is not possible), overall length 70 mm |
| Weight [kg] | 0.28 |
3842567200: frequently asked questions
When can 3842567200 be shipped?
3842567200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842567200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842567200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842567200, subject to availability and destination.
