Bosch Rexroth

Bosch Rexroth 3842567086

SWITCH BRACKET SH 2/ST

MPN: 3842567086
Category: Switch bracket TS 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

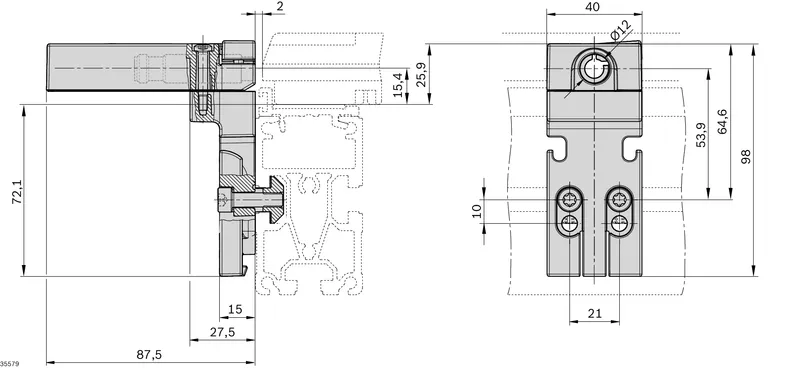

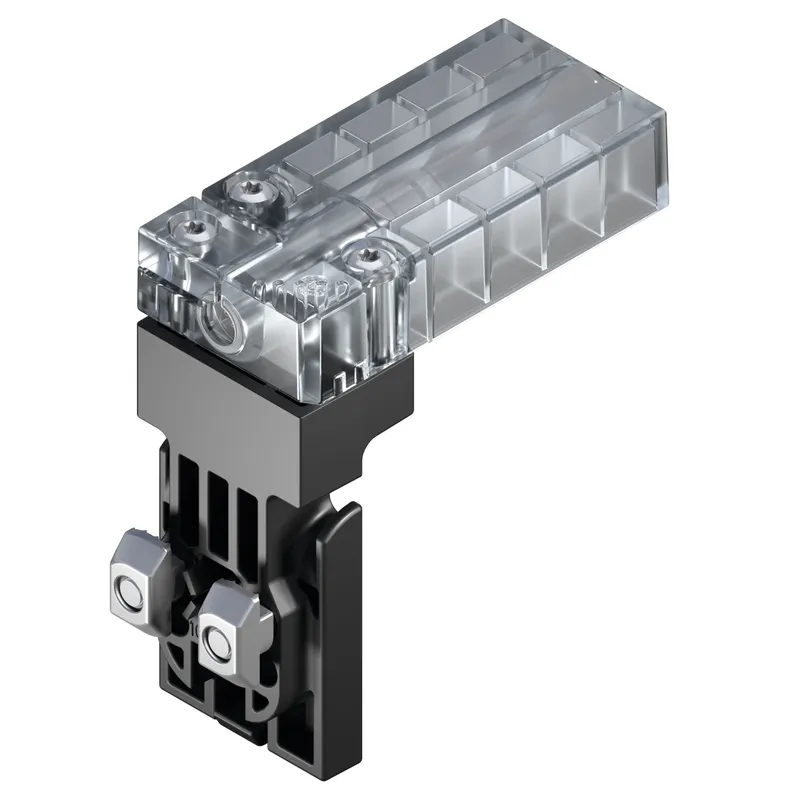

What is the Bosch Rexroth 3842567086?

The switch bracket can be used to fix a sensor M12x1 in place for lateral sensing of the workpiece pallet position

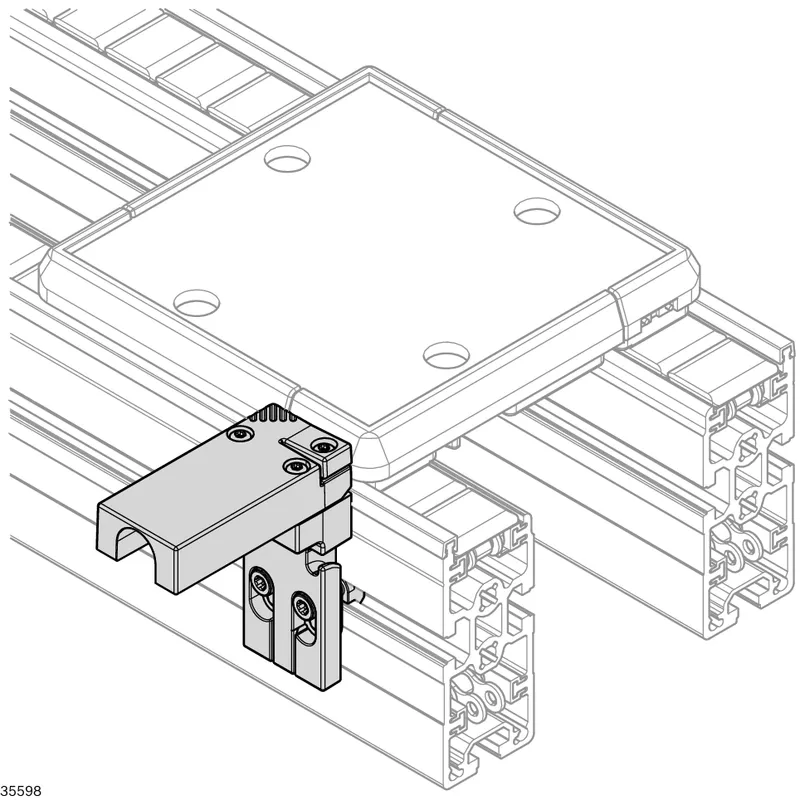

For fastening a sensor and attaching to the outside groove of a conveyor section

Suitable for lateral sensing of the workpiece pallet position

Switch cover to protect sensor and cable

Transparent cover to recognize the operating state of the sensor

Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position

The integrated cable routing and cable clamping allows secure and protected cable routing

Side query adjustable

One-time switch bracket setting on installation

Specifications

Condition on delivery	Not assembled
Scope of delivery	fastening material included
Material information	Housing: PA66; black; Switch cover: ABS; transparent
Required accessories	Sensor M12x1, SN = 8 mm, L ≥ 44 mm can be installed flush or not flush
Weight [kg]	0.13
