Bosch Rexroth 3842563247

What is the Bosch Rexroth 3842563247?

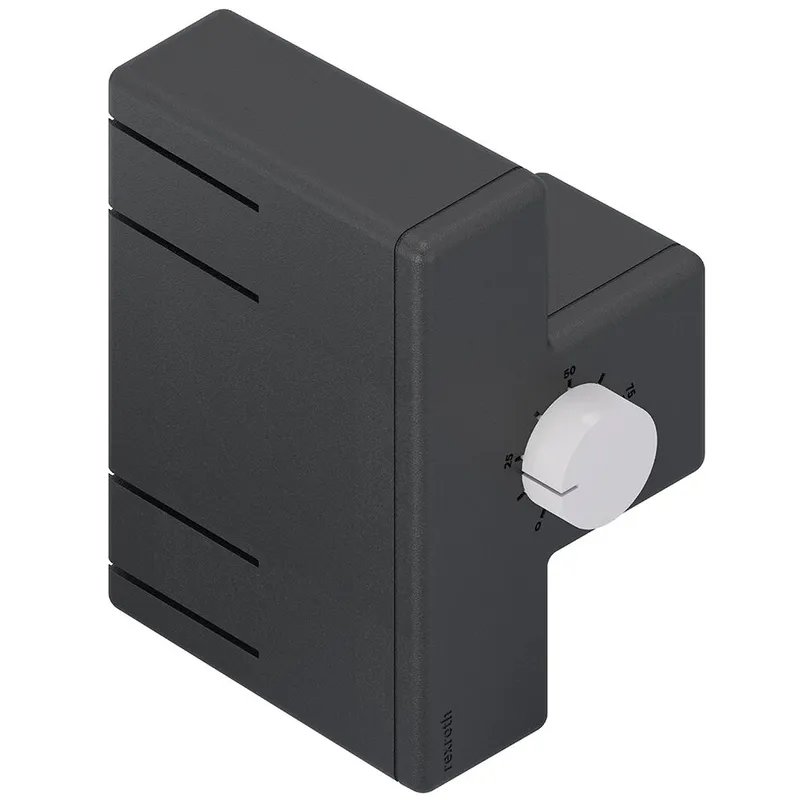

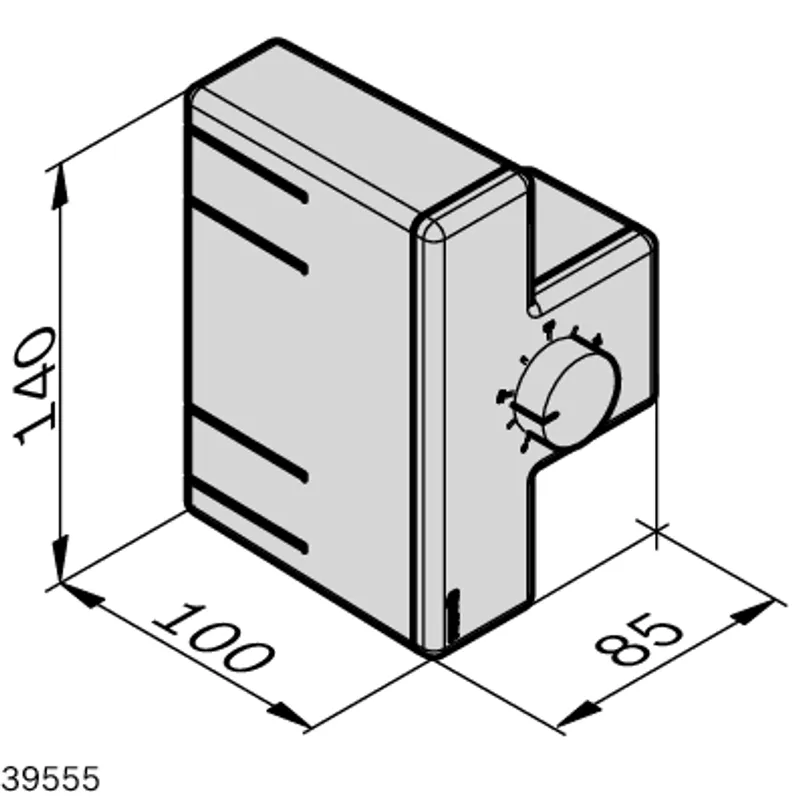

Power supply DIM box

SL 24 basic: Easy and fast fastening in slot with mounting base; through-wired with two outputs for connecting further lamps

SL 12 basic: Easy and fast fastening in slot with mounting base; with one output for connecting another lamp

Suitable for use at ESD workstations when using fastening kit Plate or Bracket

Color temperature: 5000 K

Power supply DIM box

For power supply of up to two SL 24 basic or four SL 12 basic system lamps (combinations of SL 12 basic and SL 24 basic possible)

Stepless dimming (0 – 100 %) via ergonomic rotary control

Mains connection via GST (with mains cable, connection cable, connecting plug)

DC lamp connection via GST mini (GST mini connection cable)

Simple and versatile fastening options in slot thanks to mounting base (included)

Can be connected directly to the socket strip via the GST connecting plug

Fastening kit Plate

For installation on hanger

Fastening kit Bracket

For installation on a strut extension; swivel-mounted

Connection cable

For connection of power supply DIM box with system lamp basic

For connection of system lamp basic with additional system lamp basic

Note: According to IEC 60364-4-4 1: Low-voltage electrical installations – Part 4-41: Protection for safety – Protection against electric shock:411.3.3 Additional protection In a.c. systems, additional protection by means of a residual current protective device (RCD) in accordance with 415.1 shall be provided for – socket-outlets with a rated current not exceeding 20 A that are for use by ordinary persons and are intended for general use.
