Bosch Rexroth 3842563245

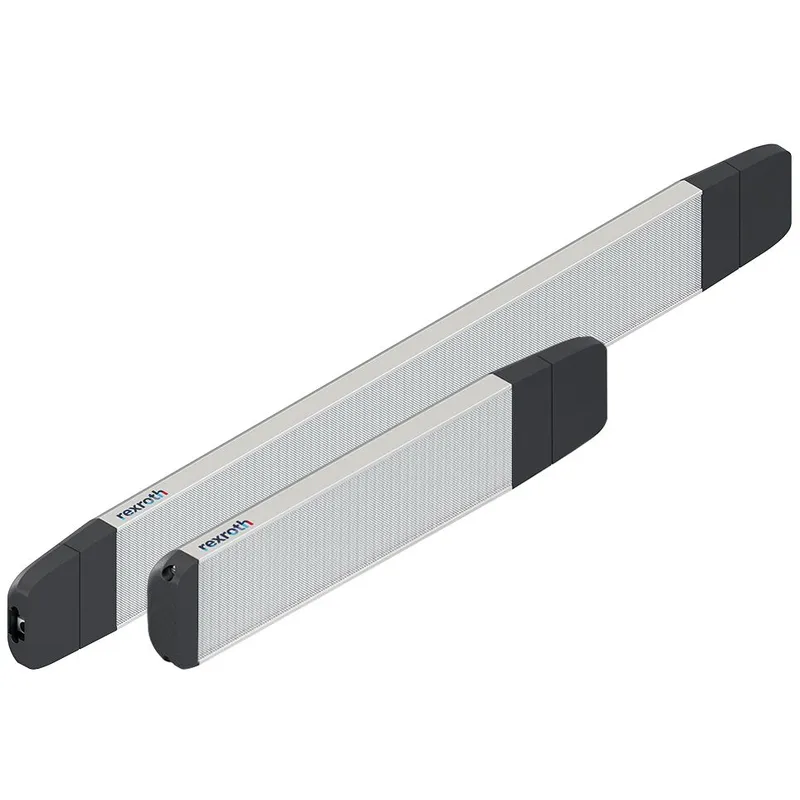

SYSTEM LAMP SL24LED BASIC
- MPN
- 3842563245
- Category
- Lighting
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842563245?
System lamps LED basic, SL 24 LED basic
SL 24 basic: Easy and fast fastening in slot with mounting base; through-wired with two outputs for connecting further lamps
Suitable for use at ESD workstations when using fastening kit Plate or Bracket
Color temperature: 5000 K
Note: According to IEC 60364-4-4 1: Low-voltage electrical installations – Part 4-41: Protection for safety – Protection against electric shock:411.3.3 Additional protection In a.c. systems, additional protection by means of a residual current protective device (RCD) in accordance with 415.1 shall be provided for – socket-outlets with a rated current not exceeding 20 A that are for use by ordinary persons and are intended for general use.
Specifications
Specifications
| Conformity | CSA; UL |
| ESD | Yes |
| Mass [m] [kg] | 1 |
| Protection class | IP20 (DIN EN IEC 60529) |
| Color temperature [K] [K] | 5000 |
| Service life | 60000 |
| Voltage/frequency combination [U/f] | <60 V (DC SELV) |
| Scope of delivery | Incl. fastening material (10 mm slot) |
| Material information | Housing: aluminum, anodized |
| Required accessories | Connection cable; Mains cable; Power supply DIM box |
| Weight [kg] | 1.2 |
3842563245: frequently asked questions
When can 3842563245 be shipped?
3842563245 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842563245 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842563245 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842563245, subject to availability and destination.
