Bosch Rexroth 3842563103

STOP GATE VE 2/D100-E

MPN: 3842563103
Category: Electrical stop gates TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

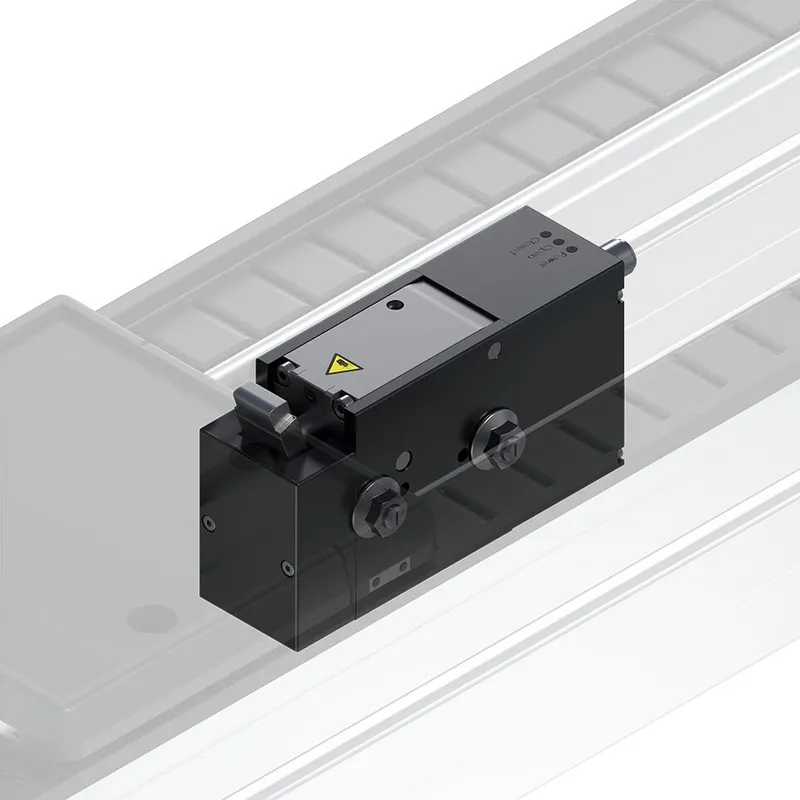

What is the Bosch Rexroth 3842563103?

Stop gate VE 2/D100-E

To the workpiece pallet separation in sections

Dampened stop gate

Can be combined with WT 2, WT 2/E, WT 2/F, WT 2/LS

Can be combined with all TS 2plus components (except for HD components)

Air damping adjustable by means of throttle screw

Damping effect adjustable on the upper surface

If the damping is set, weights of ± 50% of the set weight can be properly damped

Loading only in the direction of transport

No spring return, the stop blade of the stop gate is reset or put up by means of a step motor

Electrical stop gate for the set-up of plants without pneumatic system

Little installation work as there is no pneumatic system

Low noise development

Notice: A workpiece pallet may only hit the stop if the latter is completely in its top position

Specifications

ESD	Yes
Operating temperature [T] max	+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]	100; 100
Cycle Time [s]	3
Material information	Housing: Aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	6 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	70 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	60 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	55 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	50 kg
Required accessories	Actuator and sensor system cables common in the market (5-pole)
Weight [kg]	0.99
