Bosch Rexroth

Bosch Rexroth 3842563101

STOP GATE VE 1/20-E

MPN: 3842563101
Category: Electrical stop gates TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842563101?

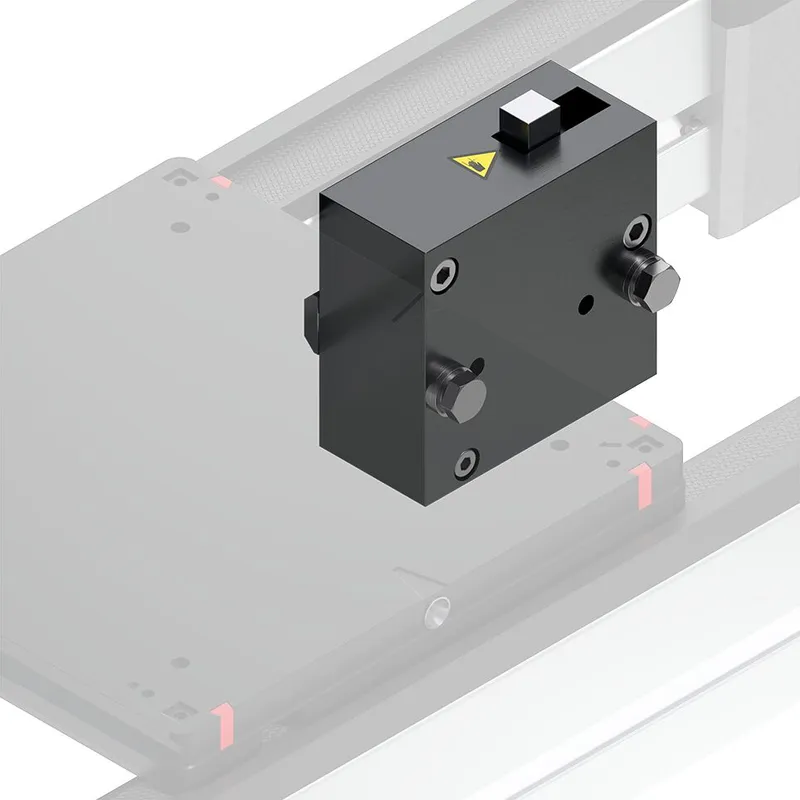

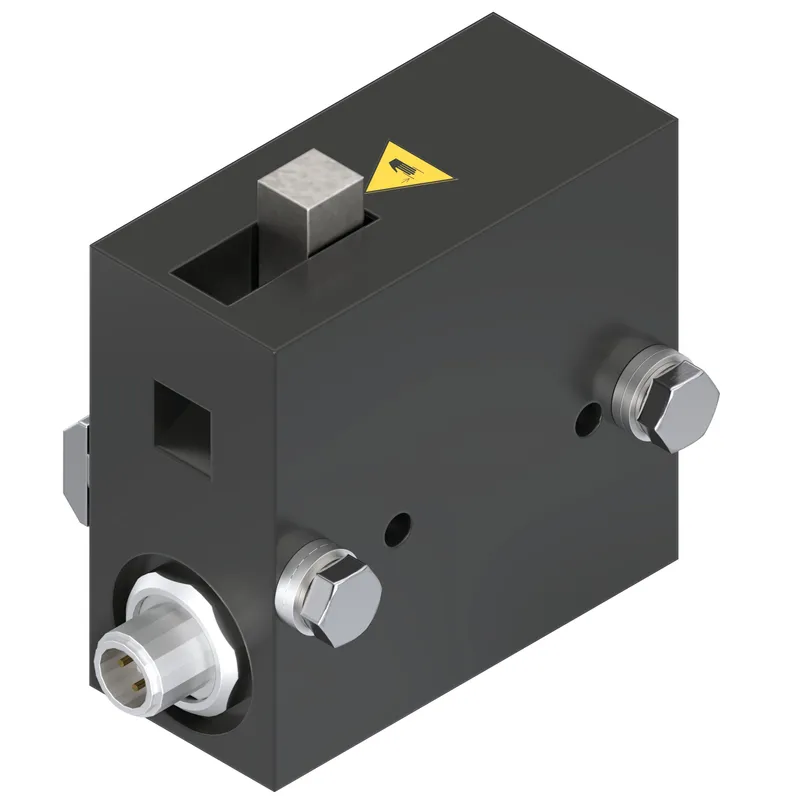

Stop gate VE 1/20-E

To the workpiece pallet separation in sections

The stop gate stops one or several workpiece pallets at a defined position and releases them for further transport as required

Can be combined with WT 1 workpiece pallet

Compact, robust construction

Suitable as stop gate for HP 1/P and PE 1/P

Specifications

Operating temperature [T] max	+5 ... +40 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	20; 12; 20; 4; 6; 8
Cycle Time [s]	2
Material information	Housing: Aluminum, anodized; Tilt stop: Steel, hardened, elastomer
Min. workpiece pallet weight m	0.35 kg
Required accessories	Actuator system cable common in the market (4-pole)
Weight [kg]	0.44
