Bosch Rexroth 3842558795

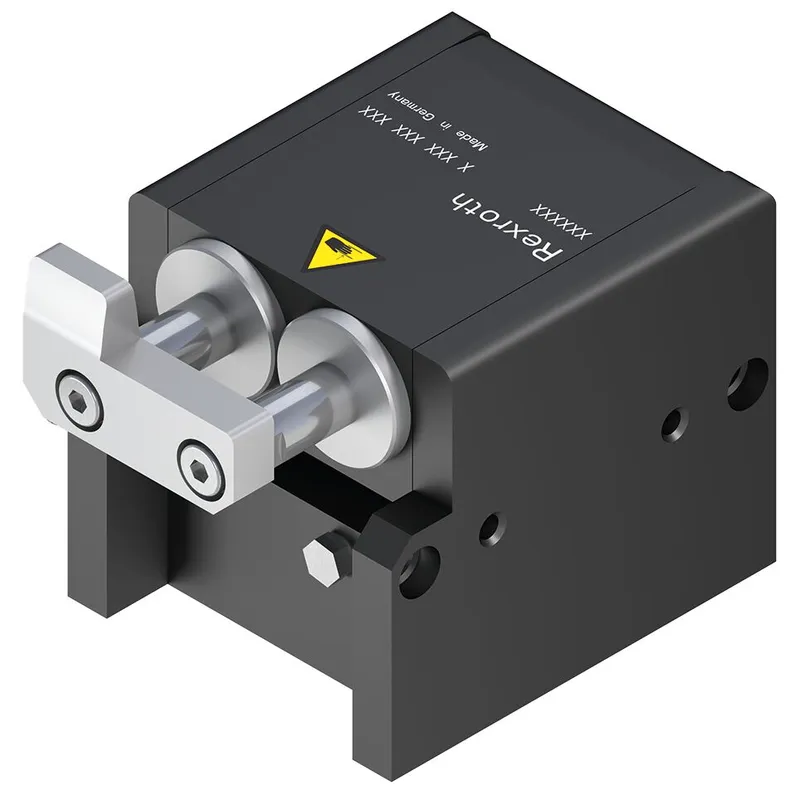

STOP GATE VE 2/D-175

MPN: 3842558795
Category: Dampened stop gates

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842558795?

Dampened stopping of the first accumulating workpiece pallet

Pneumatic stop gate

Especially sturdy all-metal design with double piston damper

Infinitely adjustable damping

Optimal damping for total WT weights up to 175 kg

Short damping path of 20 mm

Short damping time

Short installation dimension

Can be combined with WT 2, WT 2/F and WT 2/LS (only with version LS)

Suitable for use in an EPA

The stop gate stops one or more accumulating workpiece pallets at the defined workpiece pallet stop surface

When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped

Mounted inside the tracks, directly on the conveyor section

Specifications

ESD	Yes
Material information	Housing: Aluminum, hard anodized; Stop cam: Steel, hardened
Min. workpiece pallet weight m	5 kg

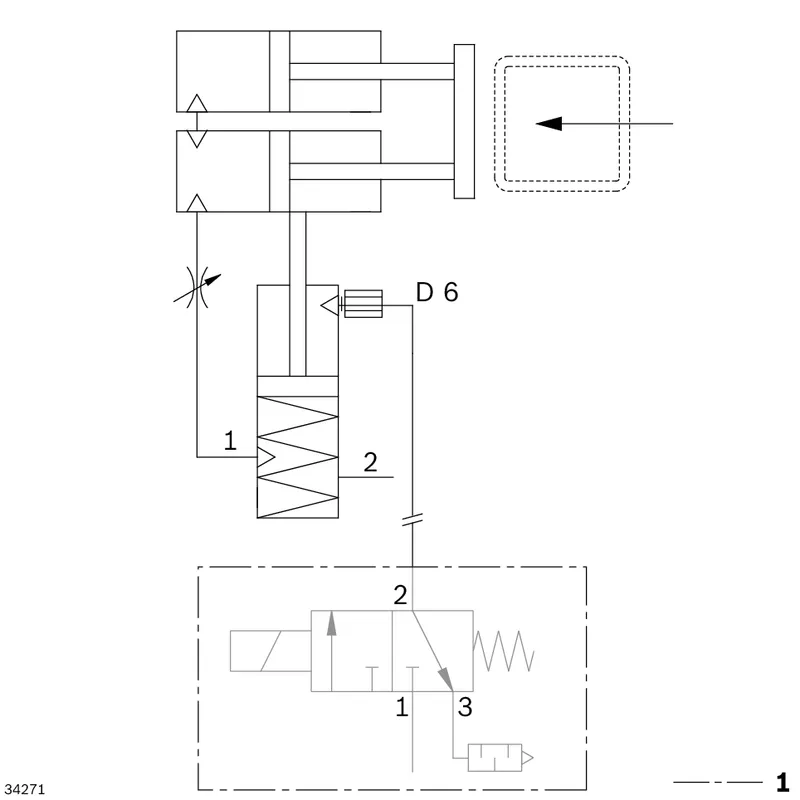

Pneumatic circuit diagram	1 Not included in the scope of delivery
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Operating temperature [T] max	+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]	175
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section
Delivery information	Fully assembled
Notice	High-temperature stop gate on request
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	175 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	160 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	145 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	110 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	90 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 24 m/min	50 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 30 m/min	35 kg
Recommended accessories	VE 2/RS Return Stop
Weight [kg]	1.6
