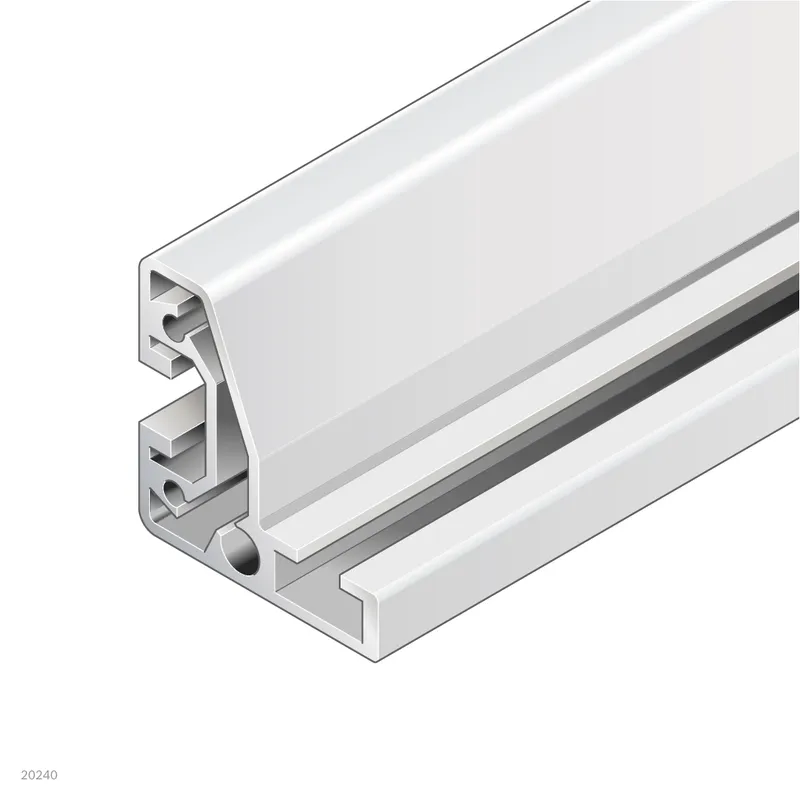

ALUMINUM ANGLE PROFILE 45X45 6170 MM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Material shelves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842558304 be shipped?
3842558304 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842558304 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842558304 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842558304, subject to availability and destination.

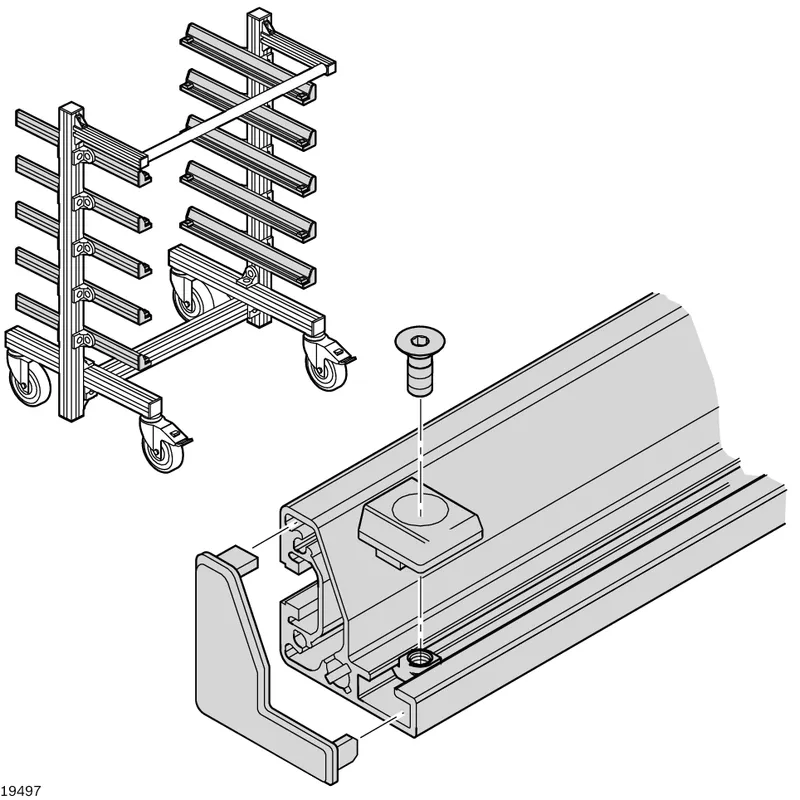

Angle profile For supporting containers, plates, or workpiece pallets in flow racks, material shuttles, or hopper stackers Stopper and cover cap The stopper prevents containers from shifting on the angle profile Cover cap to prevent injuries at open profile ends Attractive design
Specifications
Specifications
| Condition on delivery | Single rod in standard length |
| Profile slot | 8, 10 |
| ESD | Yes |
| Packaging unit | 1 |

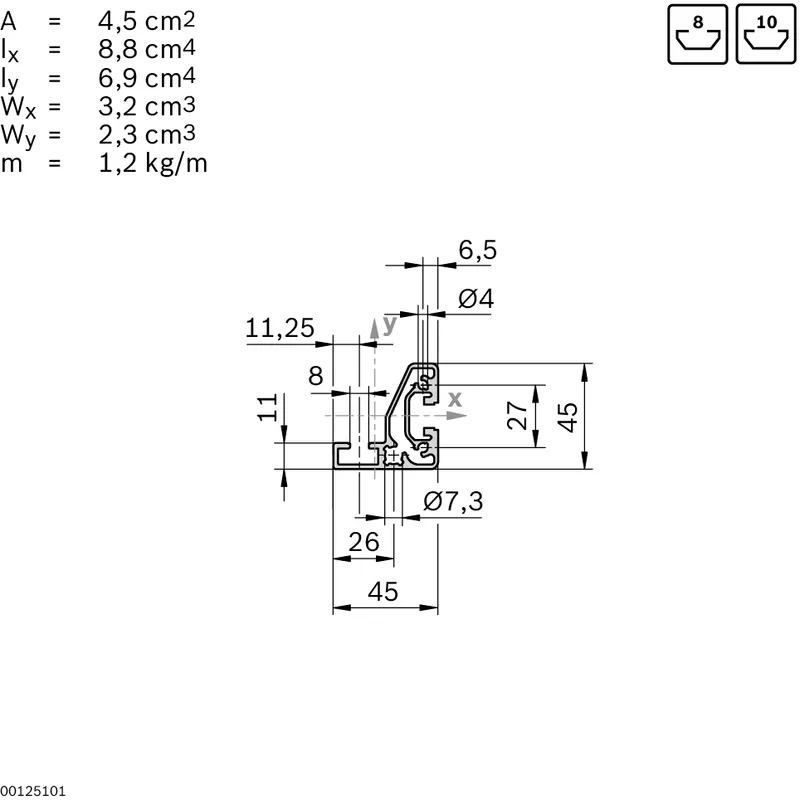

| Mass [m] [kg] | 1.2 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 8.8 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 6.9 |
| Profile surface [A] [cm²] | 4.5 |
| Moment of resistance in the x-direction [Wx] [cm³] | 3.2 |
| Moment of resistance in the y-direction [Wy] [cm³] | 2.3 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Recommended accessories | Plug and cover cap, black; Plug and cover cap, signal gray |
| Weight [kg] | 7.4 |
