Bosch Rexroth 3842558303
FRAME PROFILE 22,5X45 L=6170 MM
- MPN
- 3842558303
- Category
- Material shelves
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842558303?

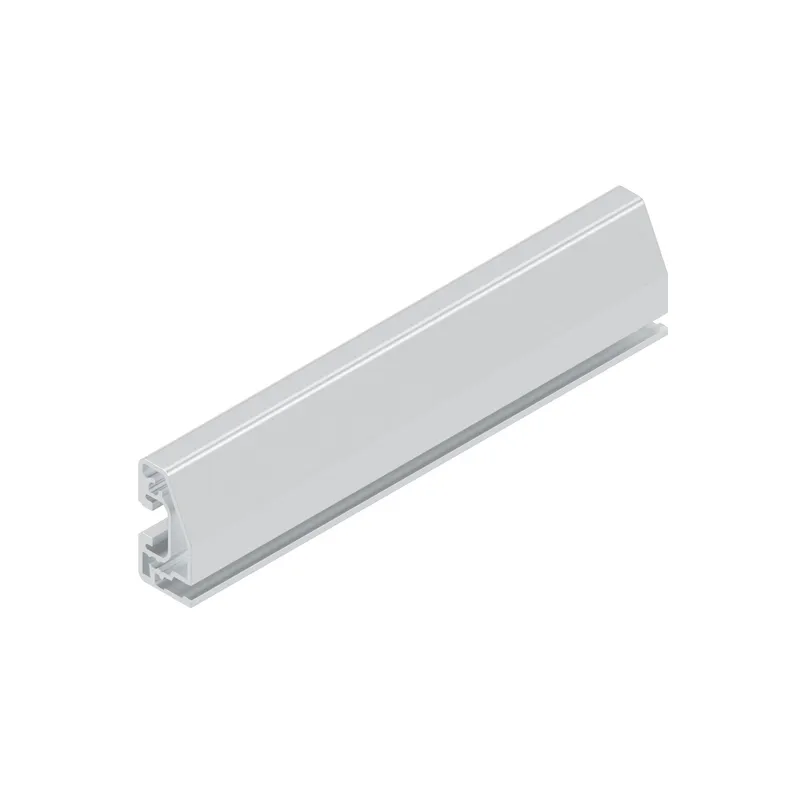

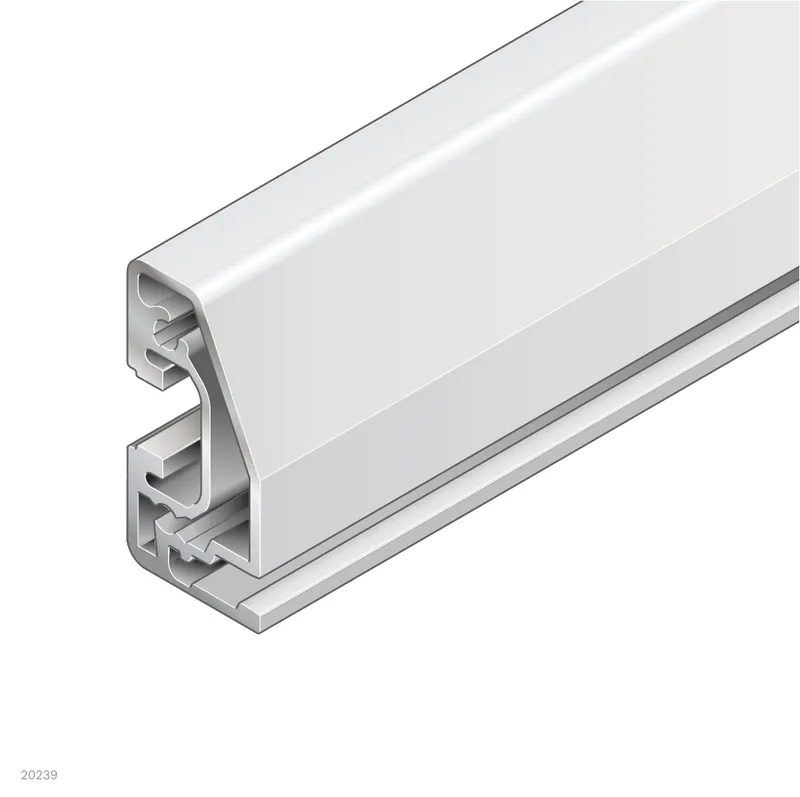

Frame profile 22.5x45 L6070
For inexpensive construction of trays and material shelves
Surface elements are mounted under tension so that they do not rattle

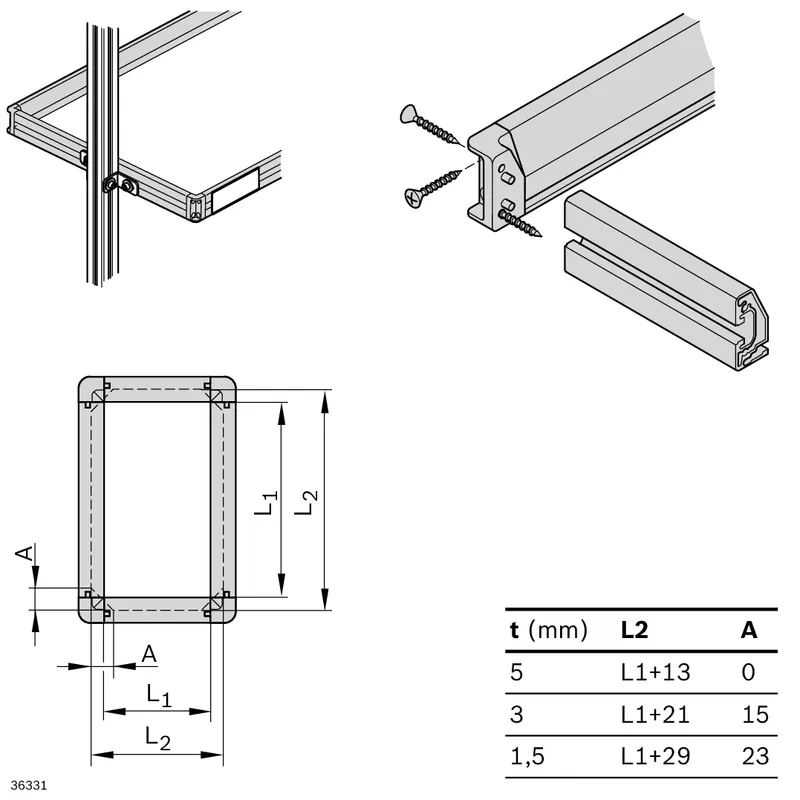

Corner bracket for frame profile 22.5x45
For the right-angled connection of two 22.5x45 frame profiles
Profile finishing: not required
Specifications
Specifications
| Condition on delivery | Single rod in standard length |
| Cross-section | 22,5x45 |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| ESD | Yes |
| Dimensions | 22,5x45 |
| Open slots | 2.0 |
| Profile type | Standard |
| Color | Natural |
| Packaging unit | 1 |
| Mass [m] [kg] | 0.9 |

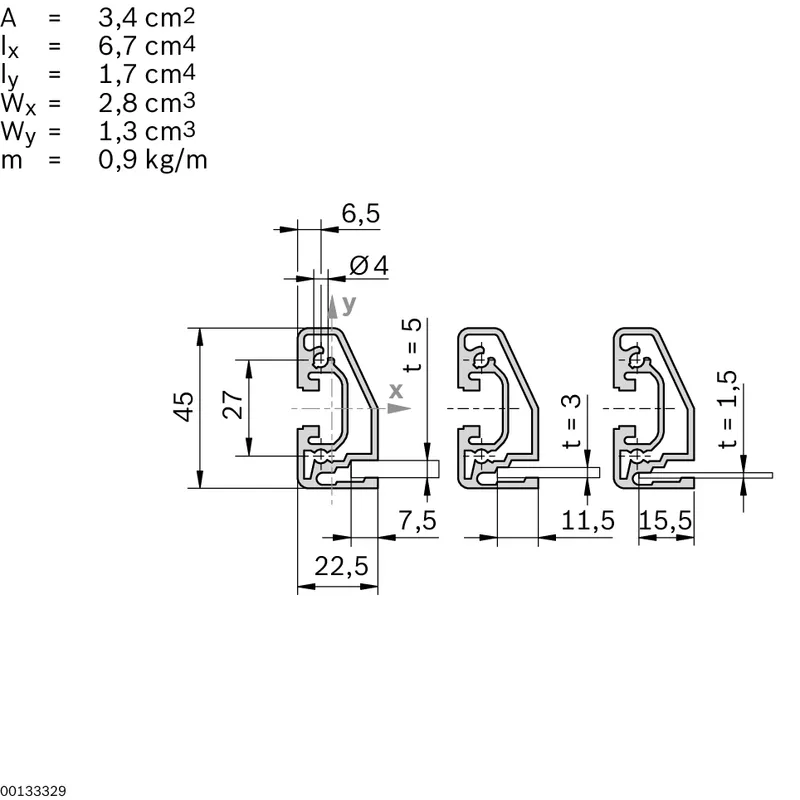

| Area moment of inertia in x-direction [lx] [cm⁴] | 6.7 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 1.7 |
| Profile surface [A] [cm²] | 3.4 |
| Moment of resistance in the x-direction [Wx] [cm³] | 2.8 |
| Moment of resistance in the y-direction [Wy] [cm³] | 1.3 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Recommended accessories | Corner piece 22.5x45 |
| Weight [kg] | 5.3 |
