Bosch Rexroth 3842557251

SECTION TUBE D28L/N10 L=6170

MPN: 3842557251
Category: Round tube

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557251?

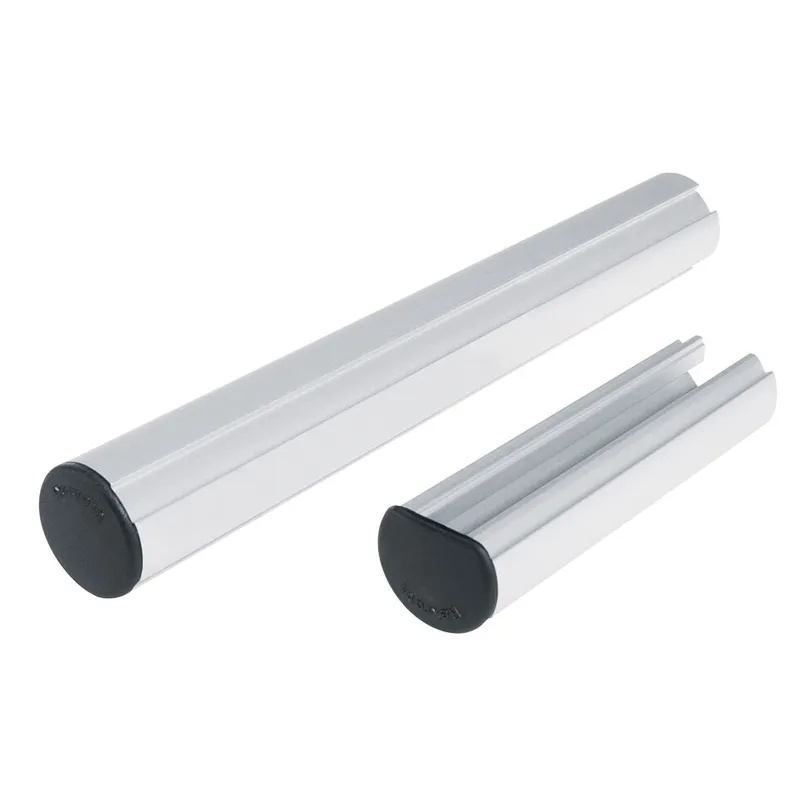

D28L round tube, N10

D28L round tube with 4 interfaces for attaching EcoShape connectors

D28L round tube, N10 with a 10 mm slot for mounting accessories from the modular aluminum framing system

3 interfaces for attaching EcoShape connectors

Slide rail for creating a simple conveyor track or manual slide section by clipping the slide rail onto the D28L or D28L round tube, N10

Cover cap for D28L and D28L round tube, N10

Impact protection device for D28 and D28L round tube

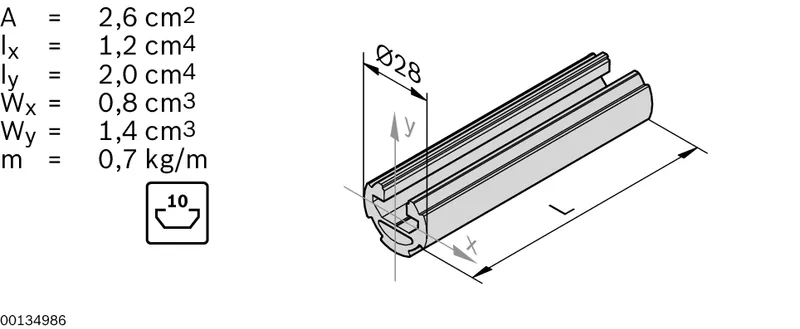

Specifications

Condition on delivery	Single rod in standard length
Packaging unit	1
Mass [m] [kg]	0.7
Area moment of inertia in x-direction [lx] [cm⁴]	1.2
Area moment of inertia in y-direction [ly] [cm⁴]	2
Profile surface [A] [cm²]	2.6
Moment of resistance in the x-direction [Wx] [cm³]	0.8
Moment of resistance in the y-direction [Wy] [cm³]	1.4
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap D28L, N10, black; Cover cap D28L, N10, signal gray; Cover cap D28L, black; Cover cap D28L, signal gray; Slide rail, signal gray; Slider rail black ESD
Weight [kg]	4.4
