Bosch Rexroth 3842557247
FRAME PROFILE 30X45 WG40 L=6170
- MPN
- 3842557247
- Category
- Protective grille profile WG40
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

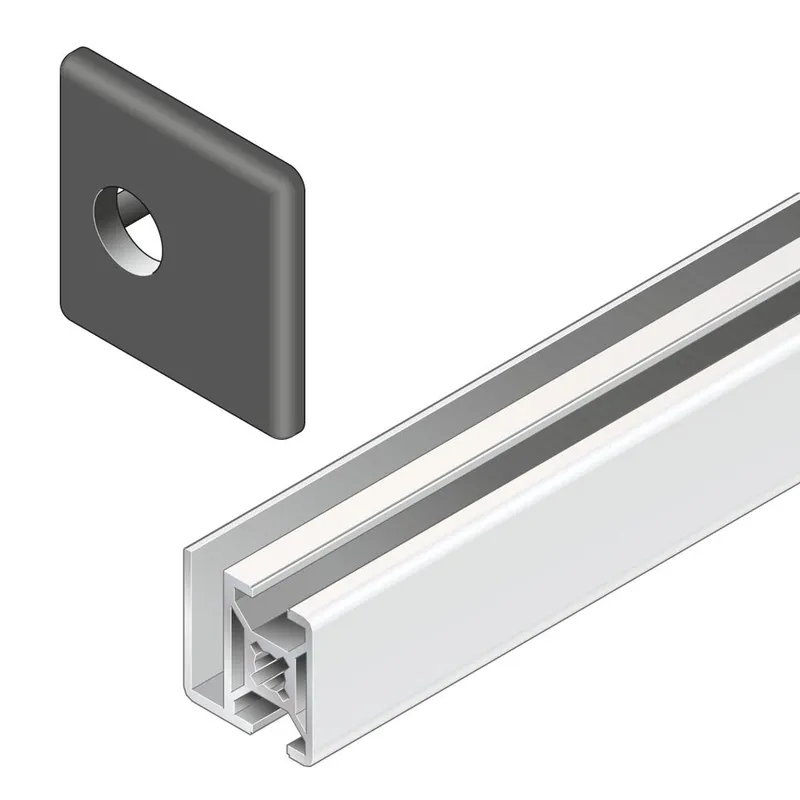

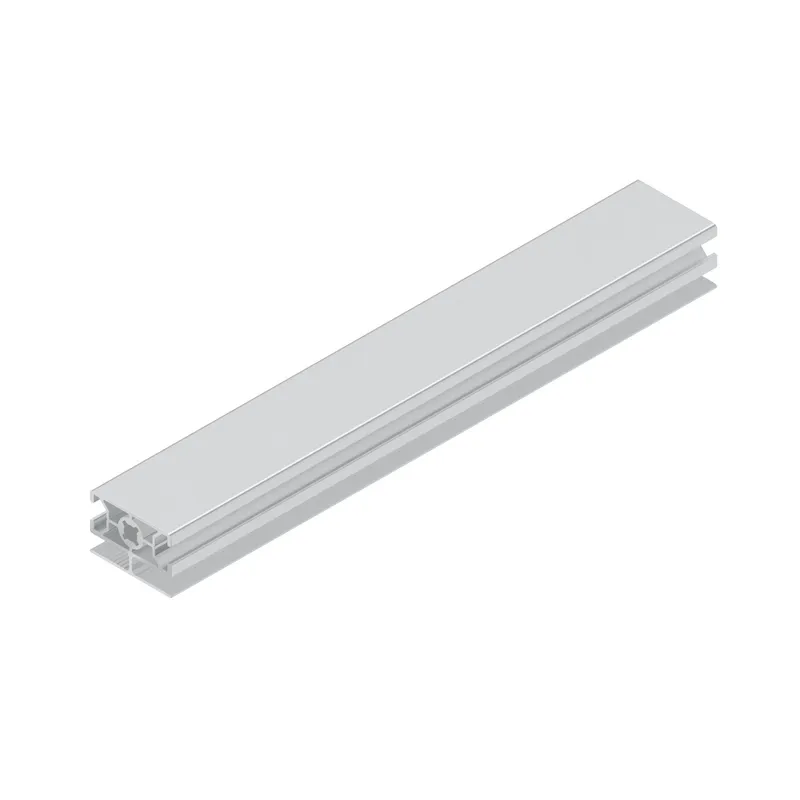

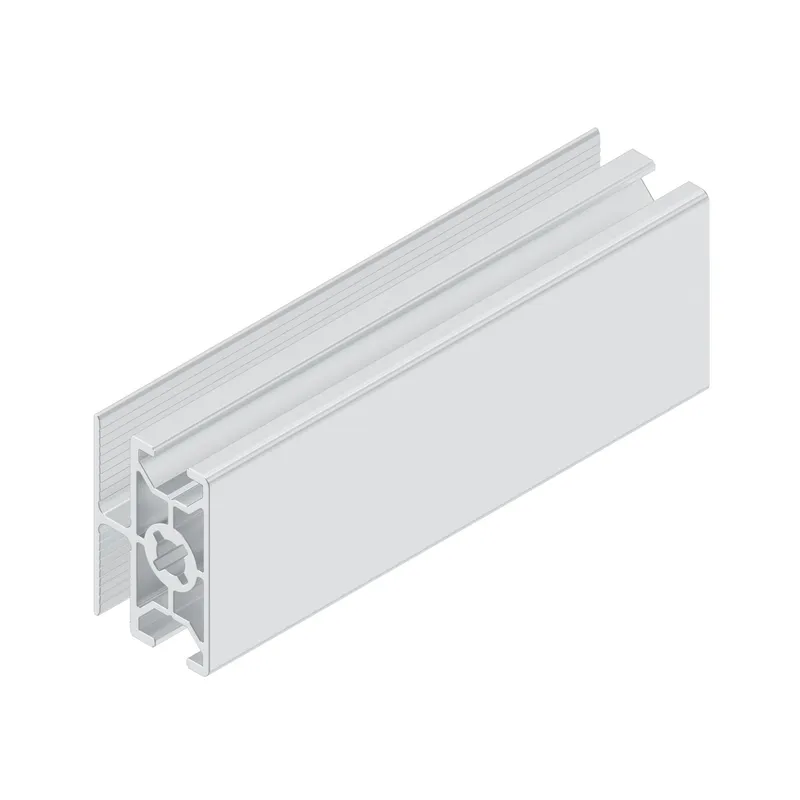

What is the Bosch Rexroth 3842557247?
Protective grille profile 30x45 WG40
for the low-cost construction of protective barriers with woven wire grilles WG30 and WG40
Fastening of woven wire grilles: directly in the special profile slot
Fastening of surface elements: in the special profile slot using spring clamping elements (accessories)
The profiles are connected using a central bolt (profile machining required)
Modular dimension "B" relates to 45x45 supports

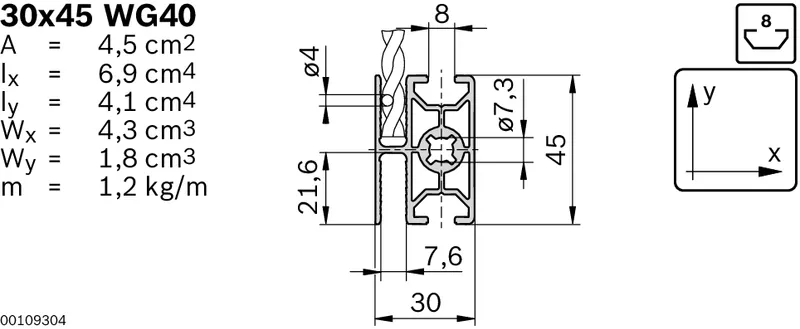

Specifications
Specifications
| Condition on delivery | Single rod in standard length |
| Profile slot | 8 |
| Delivery unit | 1 |
| Packaging unit | 1 |
| Mass [m] [kg] | 1.2 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 6.9 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 4.1 |
| Profile surface [A] [cm²] | 4.5 |
| Moment of resistance in the x-direction [Wx] [cm³] | 4.3 |
| Moment of resistance in the y-direction [Wy] [cm³] | 1.8 |
| Length [L] | 6170.0 |
| Material | Aluminum, anodized |
| Required accessories | Central bolt; Spring clamping elements; Woven wire grille |
| Weight [kg] | 7.5 |
