Bosch Rexroth

Bosch Rexroth 3842555616

GUSSET 180X180 DYNAMIC LOAD

MPN: 3842555616
Category: Heavy-duty connector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842555616?

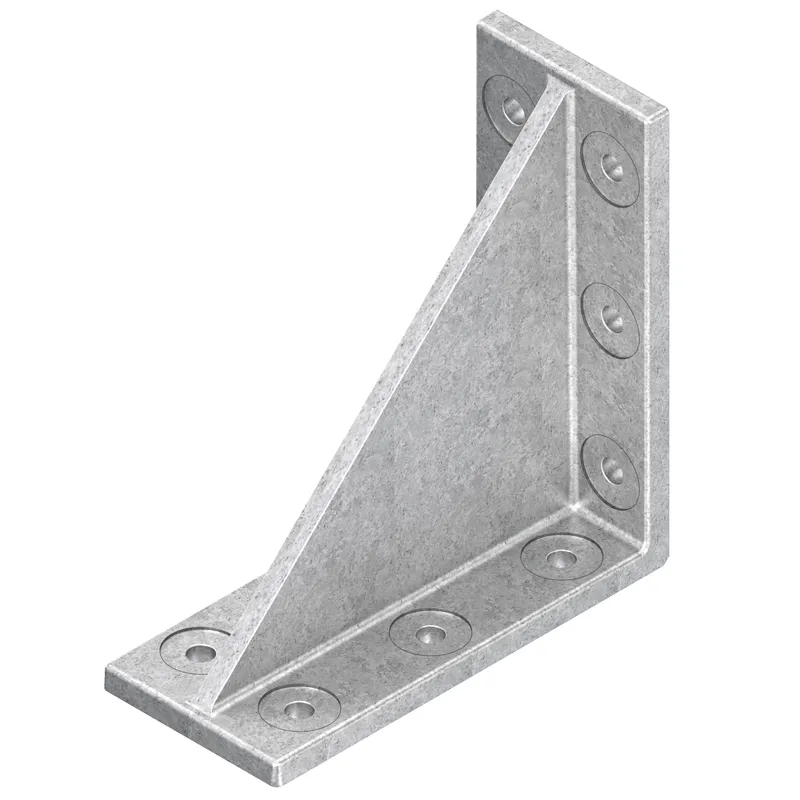

Heavy-duty connector 180x180 dynamic load

Heavy-duty connector for reliable absorption of high forces

Can be used for both static and dynamic forces

Connection possible in any position

Profile finishing: not required

Calculation program for static and dynamic forces included in MT pro engineering software

Focus profile: 90x90, 90x180, 90x360

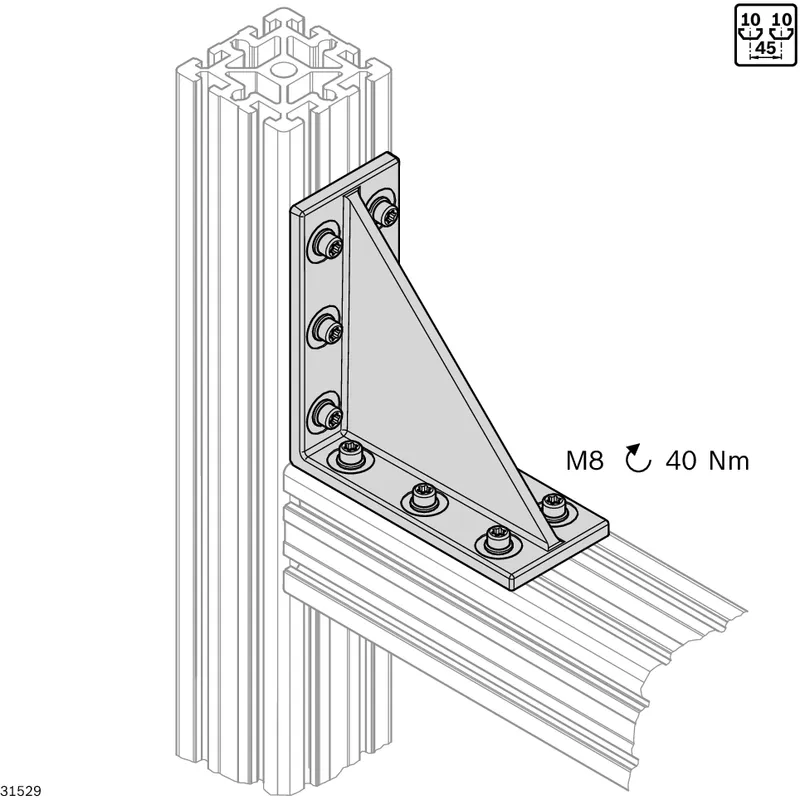

Mounting kit

For connecting a heavy-duty angle to a profile

Set consists of 4 sliding blocks and 12 screws with washers

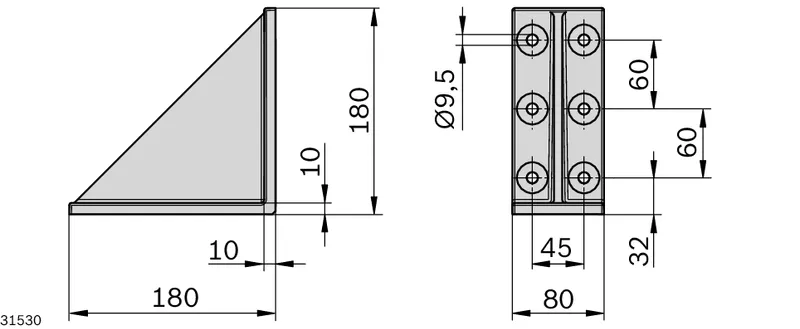

Specifications

Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Bending moment 1 [Nm]	5600.0
Bending moment 2 [Nm]	5600.0
Torsional moment [Nm]	1400
Scope of delivery	Bracket
Material	Cast iron, galvanized
Required accessories	Mounting kit
Weight [kg]	2.79
