LIFTING WHEEL D80 ROTATABLE PEDAL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Lifting wheel |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842555610 be shipped?
3842555610 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842555610 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842555610 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842555610, subject to availability and destination.

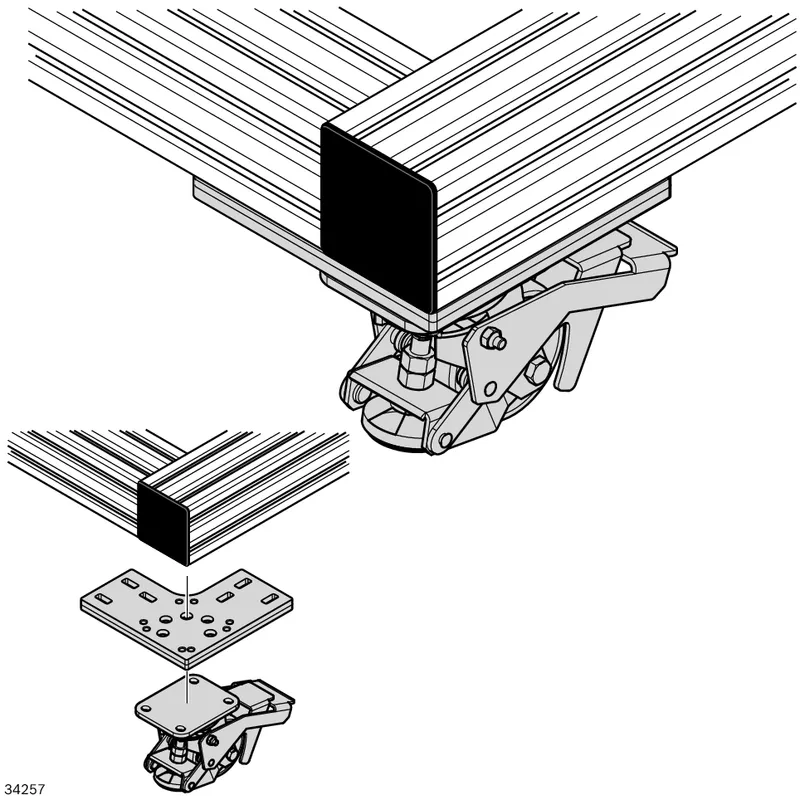

Lifting wheel - Rotatable Pedal Steerable lifting wheel The wheel turns into a stable base simply by engaging the stop lever The locking lever moves with the wheel The locking lever can be moved under the frame if necessary
Specifications
Specifications

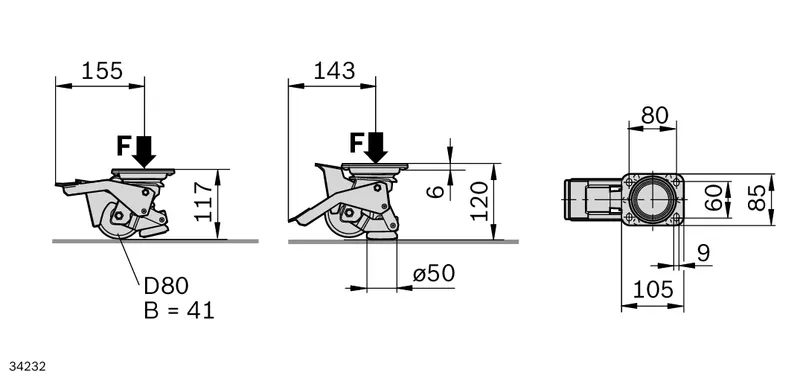

| Profile slot | 10 |
| ESD | Yes |
| Packaging unit | 1 |
| Total height [mm] | 120.0 |
| Material information | Wheel: PA 6, natural white, housing: Steel, galvanized |
| Force F [N] | 2000.0 |
| Material | PA 6 |
| Required accessories | Flange head screw similar to ISO 7380-2 10.9 M8x25, however, Torx 40 (tightening torque 25 Nm), T-nut 10 M8, central bolt M12 or S12 for fastening the screw-on plate at the profile frame; Screw M8x20 (ISO 4762), washer A8 (DIN EN ISO 7089), locking washer 8 FSt for attaching to the screw-on plate; Screw-on plate, lifting wheel |
| Weight [kg] | 2 |
