Bosch Rexroth 3842553613

STRUT PROFILE 90X90L 6X6070MM

MPN: 3842553613
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842553613?

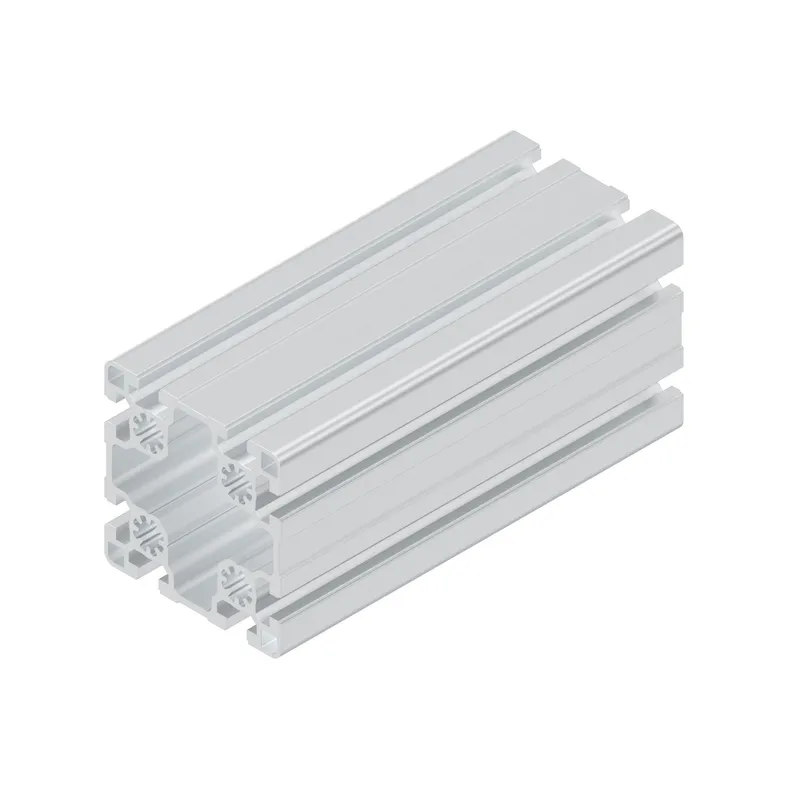

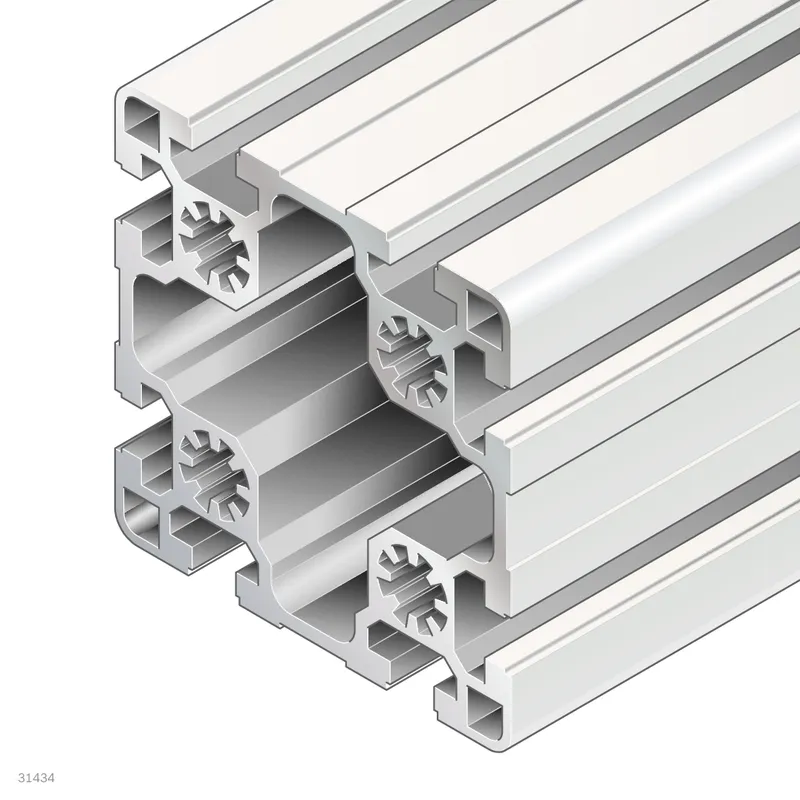

Strut profile 90x90L, 6xL=6070mm

Specifications

Condition on delivery	Packaging unit in standard length

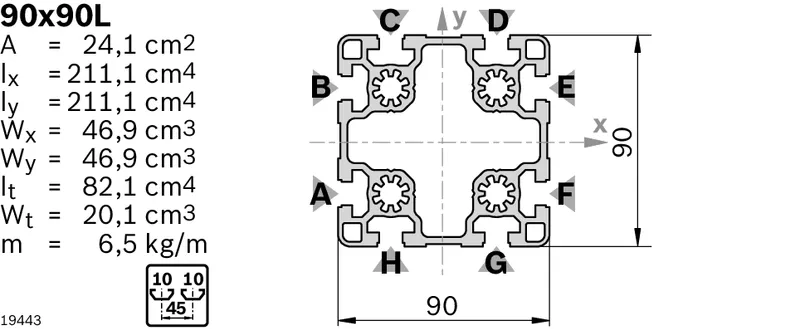

Cross-section	90x90L
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	90x90
Open slots	8.0
Profile type	Standard
Color	Natural
Delivery unit	6
Mass [m] [kg]	6.5
Area moment of inertia in x-direction [lx] [cm⁴]	211.1
Area moment of inertia in y-direction [ly] [cm⁴]	211.1
Profile surface [A] [cm²]	24.1
Moment of resistance in the x-direction [Wx] [cm³]	46.9
Moment of resistance in the y-direction [Wy] [cm³]	46.9
Torsional moment of inertia [It] [cm⁴]	82.1
Moment of torsion resistance [Wt] [cm³]	20.1
Profile adaption	D17: in slots C/H, D/G; D17V: in slots A/F, B/E; LF: in slots C/H, D/G; M12: in all core holes
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 90x90L, black; Cover cap 90x90L, signal gray
Weight [kg]	241

3842553613: frequently asked questions

When can 3842553613 be shipped?

3842553613 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842553613 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842553613 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842553613, subject to availability and destination.
