Bosch Rexroth 3842547099

CURVE 160+ VERT AL 7,5°R500

MPN: 3842547099
Category: Curve AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547099?

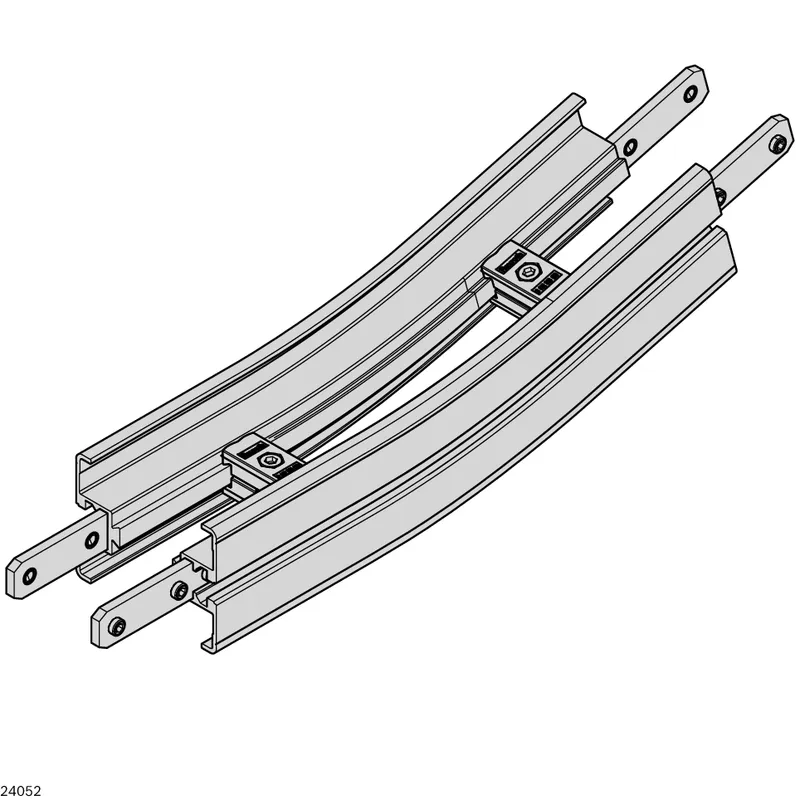

Vertical curve AL VFplus 160 7.5°

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa

Specifications

Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Notice	Effective sliding rail length with support profile

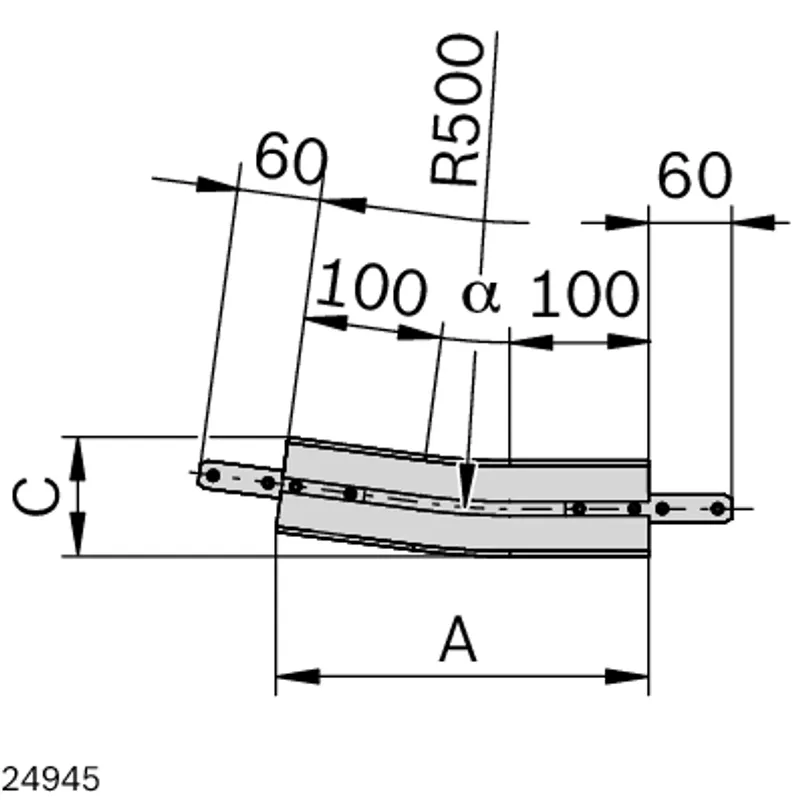

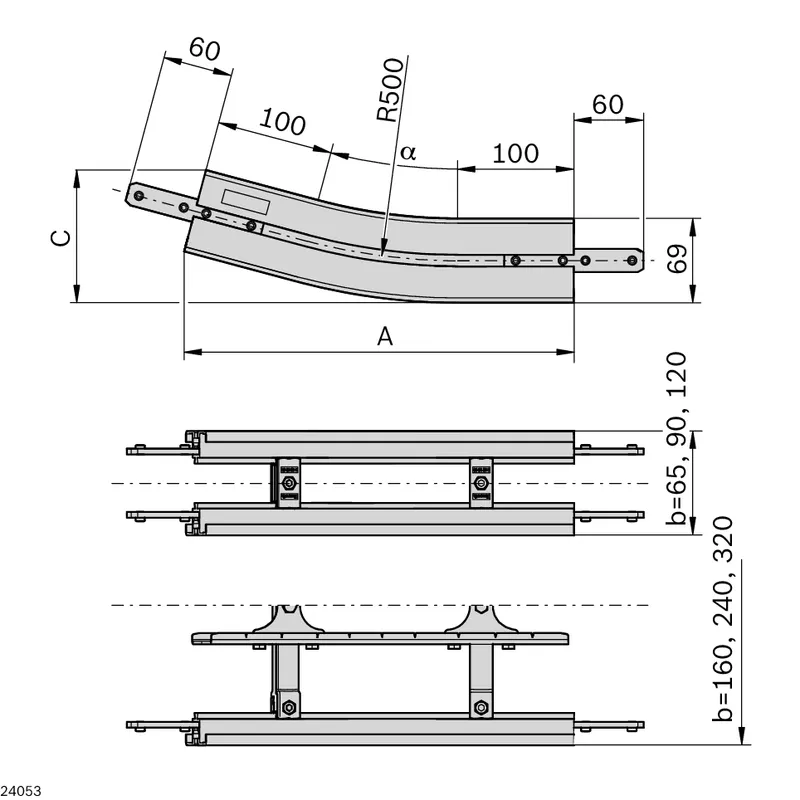

Deflection angle [α] [°]	7.5
Dimension A [mm] [mm]	268.9
Size [b] [mm]	160
Material information	Cross connector: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized; Support profile from size 160: Non-rusting steel 1.4301
Actual chain length [m]	2x 0,26
Effective sliding rail length [m]	8x 0,26
Required accessories	Slide rail: Length calculation
Weight [kg]	2.27

3842547099: frequently asked questions

When can 3842547099 be shipped?

3842547099 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842547099 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842547099 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547099, subject to availability and destination.
