Bosch Rexroth 3842547098

CURVE 160+ VERT AL 5°R500

MPN: 3842547098
Category: Curve AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547098?

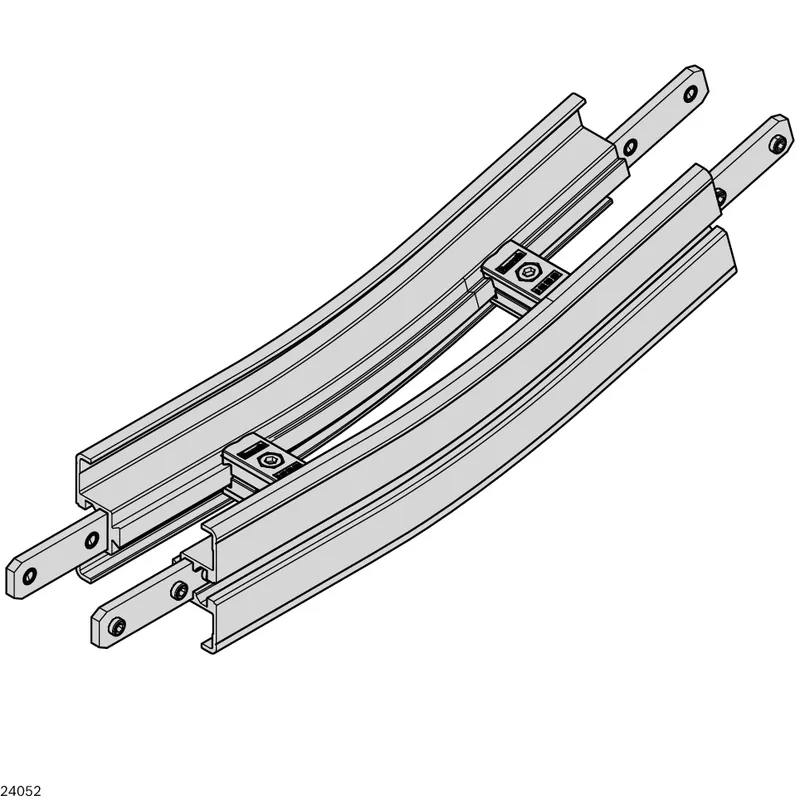

Vertical curve AL VFplus 160 5°

The vertical curve is used for the transition from a horizontal conveyor section to an ascending section and vice versa

Specifications

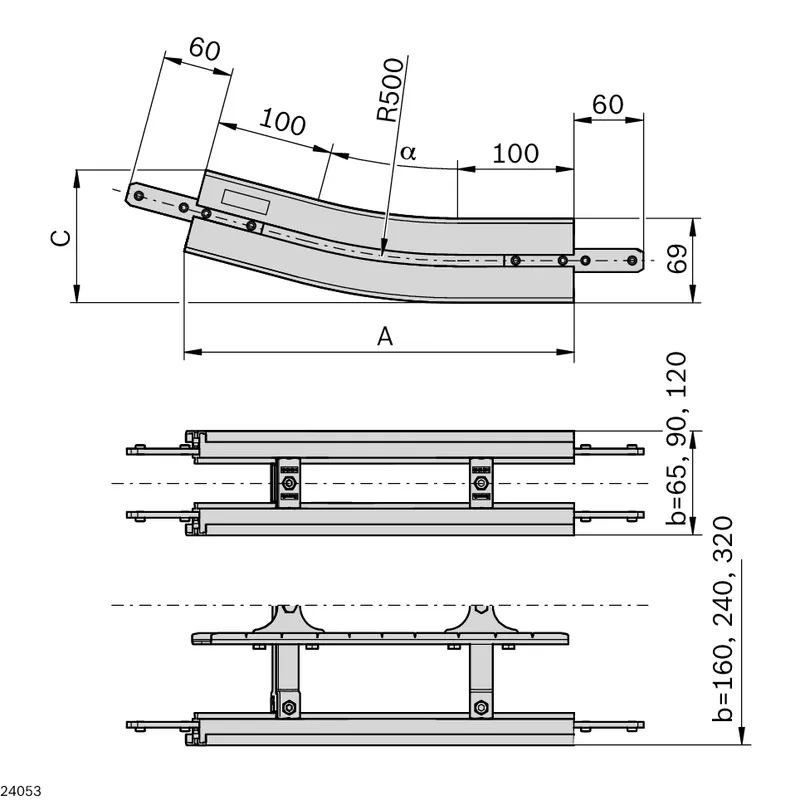

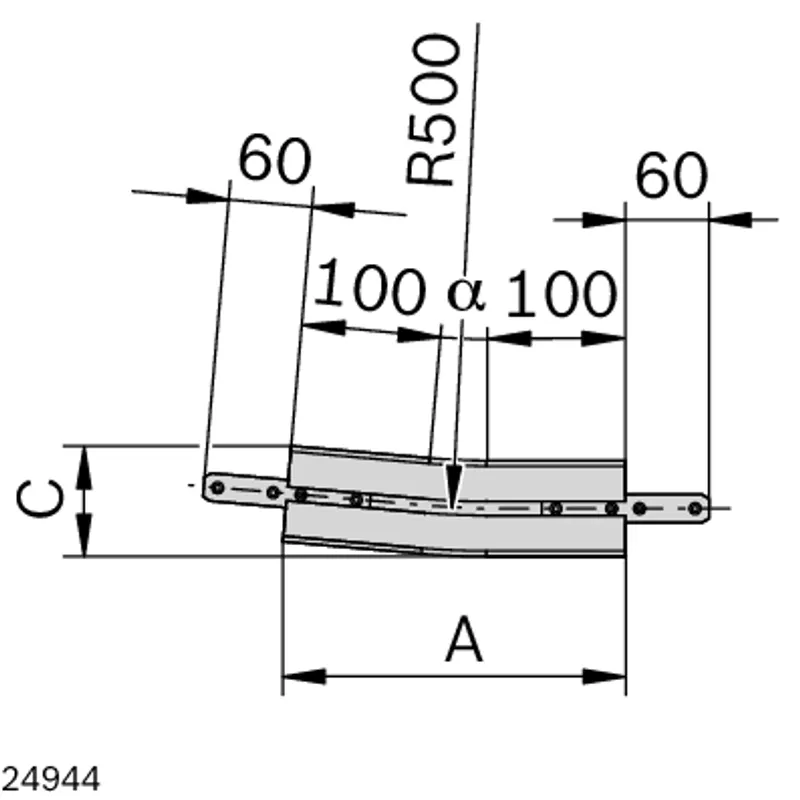

Deflection angle [α] [°]	5
Dimension A [mm] [mm]	246.2
Size [b] [mm]	160
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Notice	Effective sliding rail length with support profile
Material information	Cross connector: Diecast aluminum; Profile connector: Steel, galvanized; Profile: Aluminum, anodized; Support profile from size 160: Non-rusting steel 1.4301
Actual chain length [m]	2x 0,24
Effective sliding rail length [m]	8x 0,24
Required accessories	Slide rail: Length calculation
Weight [kg]	2.21
