Bosch Rexroth 3842545695

STOP SHEET 845 195

MPN: 3842545695
Category: End plates for conveyor unit with split rollers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842545695?

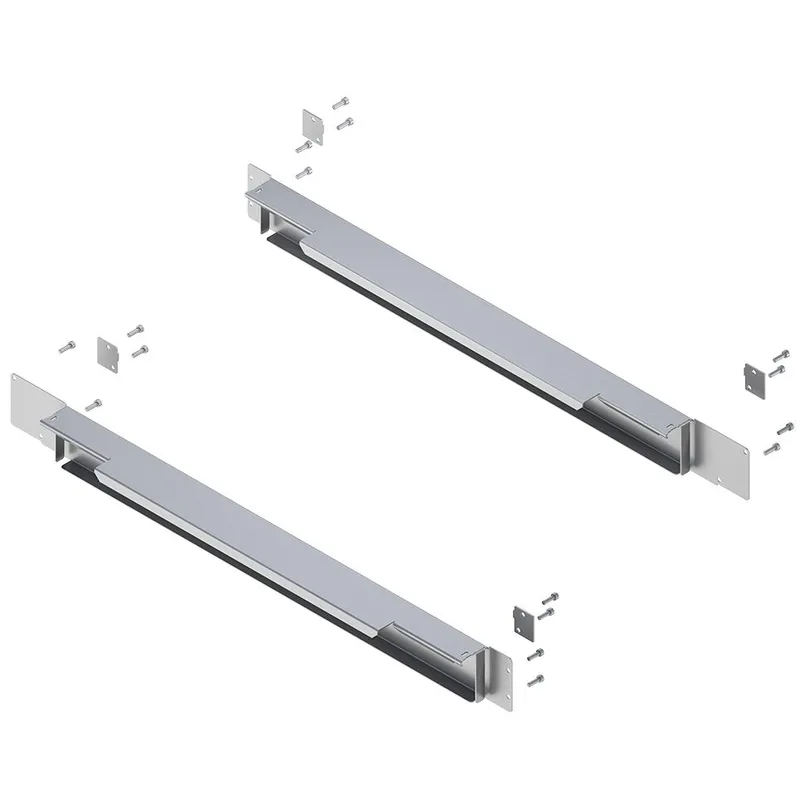

ST5/XH, ST5/H end plate; AS on right 845/195

The protective covers and end plates are provided in working areas to increase safety

They can be ordered separately for conveyor units; for curves, diverters, and junctions they are optionally included in the scope of delivery (SC = 2)

The protective covers and end plates are clipped between the rollers using spring elements

Note: Do not walk on the protective covers or end plates

Protective covers for various widths and roller spacings

Special covers for conveyor section center, transitions, and ends

End plates

End plate, left drive side ( D )

End plate, right drive side ( E )

Lateral guide cover

Lateral guide protective cover ( F ), 2x required

Thread forming screw

Screw ( G ), 4 required for each end plate ( D / E ) and 2 for each lateral guide cover ( F )

Spring element

Spring element ( H ), 2x required for each end plate

Caps

cover cap for the open profile ends ( J ), 2x required for each section end

Specifications

Roller spacing [p] [mm]	195
Track width [b] [mm]	845
Material	Steel, galvanized
Weight [kg]	2
