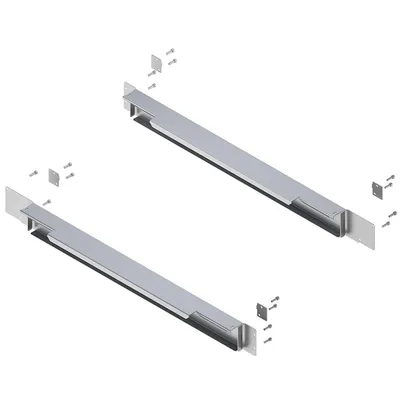

End plates for conveyor unit with split rollers Parts
Compare End plates for conveyor unit with split rollers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Roller spacing [p] [mm] | Track width [b] [mm] | Weight [kg] |
|---|---|---|---|
| 3842545697 | 325 | 845 | 2.76 |
| 3842545687 | 325 | 845 | 2.76 |
| 3842545696 | 260 | 845 | 2.4 |
| 3842545686 | 260 | 845 | 2.4 |
| 3842545695 | 195 | 845 | 2 |
| 3842545685 | 195 | 845 | 2 |
| 3842545694 | 130 | 845 | 1.6 |
| 3842545684 | 130 | 845 | 1.6 |
| 3842545693 | 260 | 650 | 1.9 |
| 3842545683 | 260 | 650 | 1.9 |
| 3842545692 | 195 | 650 | 1.6 |
| 3842545682 | 195 | 650 | 1.6 |
| 3842545691 | 130 | 650 | 1.3 |
| 3842545681 | 130 | 650 | 1.3 |
| 3842545690 | 195 | 455 | 1.16 |
| 3842545680 | 195 | 455 | 1.16 |
| 3842545689 | 130 | 455 | 0.98 |
| 3842545679 | 130 | 455 | 0.98 |
| 3842545698 | 260 | 1040 | 2.88 |
| 3842545688 | 260 | 1040 | 2.88 |
| 3842545477 | 195 | 1040 | 2.54 |
| 3842545475 | 195 | 1040 | 2.54 |
| 3842545476 | 130 | 1040 | 2.01 |
| 3842545474 | 130 | 1040 | 2.01 |
Common to all listed parts
| Material | Steel, galvanized |
