Bosch Rexroth 3842545134

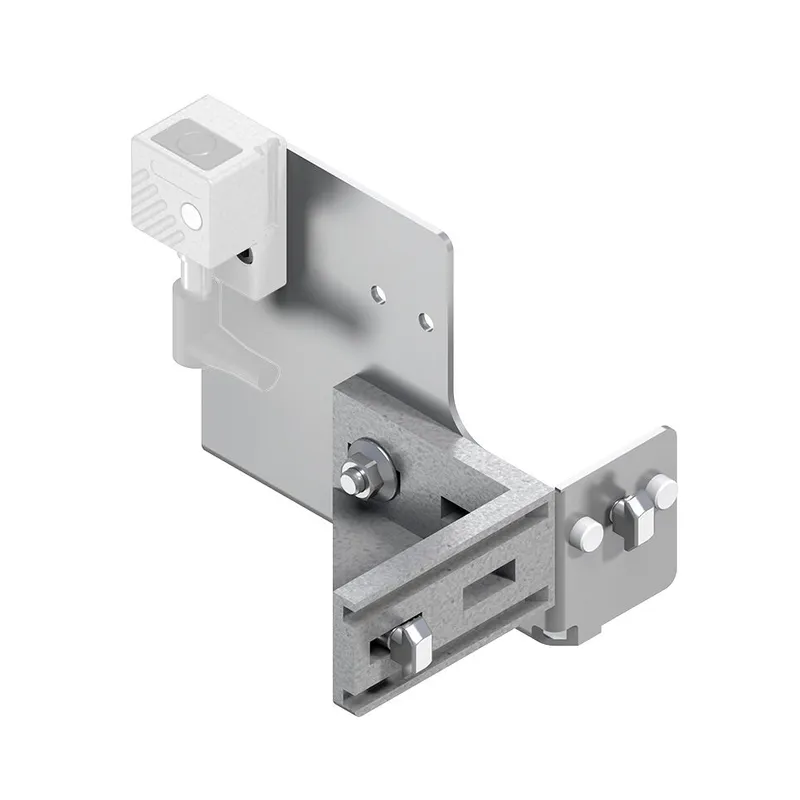

ASSEMBLY KIT SH 2/U-H

MPN: 3842545134
Category: Holder for sensors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842545134?

Assembly kit for SH 2/U-H on ST 5/H, ST 5/XH

Holding plate to bring the switch bracket into the correct inquiry position

Centering lugs for pre-positioning and fast assembly

Detection of the position of a workpiece pallet, position inquiry in respect of lift transverse units and positioning units.

Accessories, sensor in Open Center assembly kit for SH 2/U-H switch bracket

SH 2/U-H switch bracket

Fastening for an M12x1 proximity switch for workpiece pallet position sensing from below. Especially sturdy metal design

Integrated stop for 12 mm sensor

Mounting location: On the assembly kit for the switch bracket

Assembly kit for SH 2/U-H switch bracket

Installation location: on ST 5/H, ST 5/XH conveyor unit

SH 2/U-H assembly kit on PE 5 positioning unit or HQ 5 lift transverse unit

Installation location: on the PE 5 positioning unit and HQ 5 lift transverse unit; not required for b = 455 mm (fitted to stop gate without assembly kit)

Assembly kit for SH 2/U-H switch bracket on ST 5/OC conveyor unit

Mounting location: on the section profile

Specifications

Profile slot	10
Scope of delivery	incl. fastening material for assembly and a 45x90 bracket for reinforcement as needed.
Delivery information	Not assembled
Required accessories	M12x1 sensor with rated sensing range of S<sub>N </sub>≥ 4 mm; SH 2/U-H switch bracket
Weight [kg]	0.43
