What is the Bosch Rexroth 3842541888?
Workpiece pallet VFplus 65
Level WT surface with no indentations
The entire top of the WT can be built upon since everything else on the section is ready-mounted below the top of the WT.
Compatible with the ID 15 identification system. The integrated installation of a mobile data tag is also possible

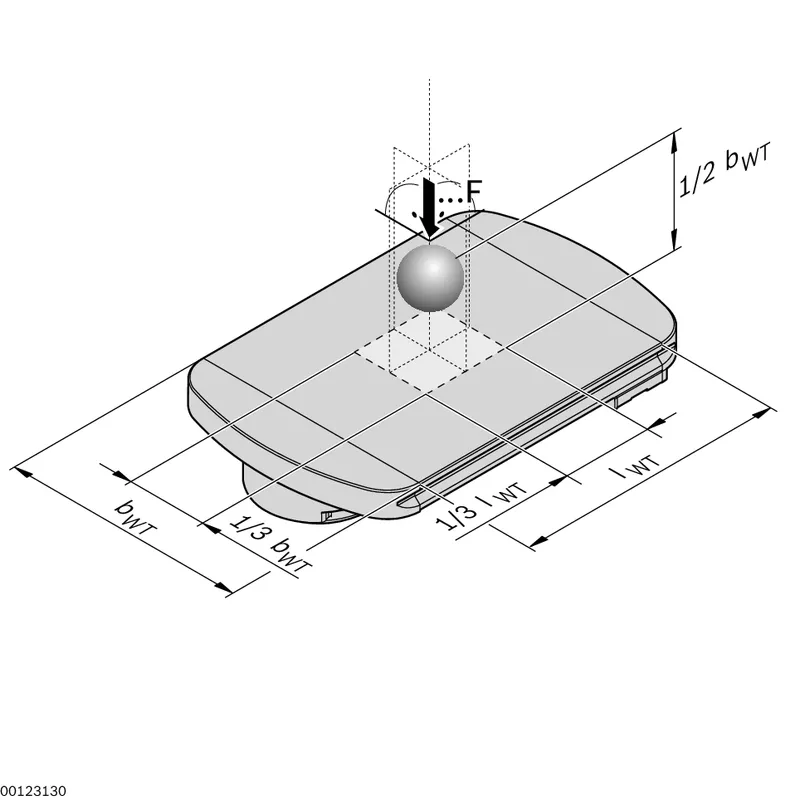

The product may also protrude beyond the WT if the position of the center of gravity is taken into consideration
The mounted workpiece pallet must be provided with wear pads (steel or PE) by the customer.

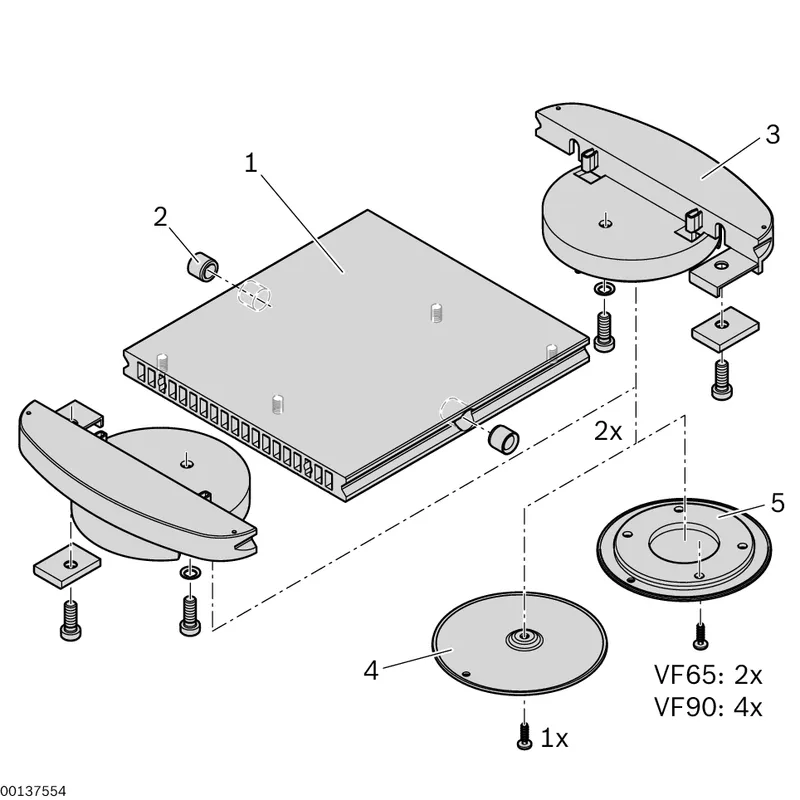

1: WT plate
2: Centering bushing
3: End pieces
4: Steel workpiece pallet wear pad
5: PE workpiece pallet wear pad

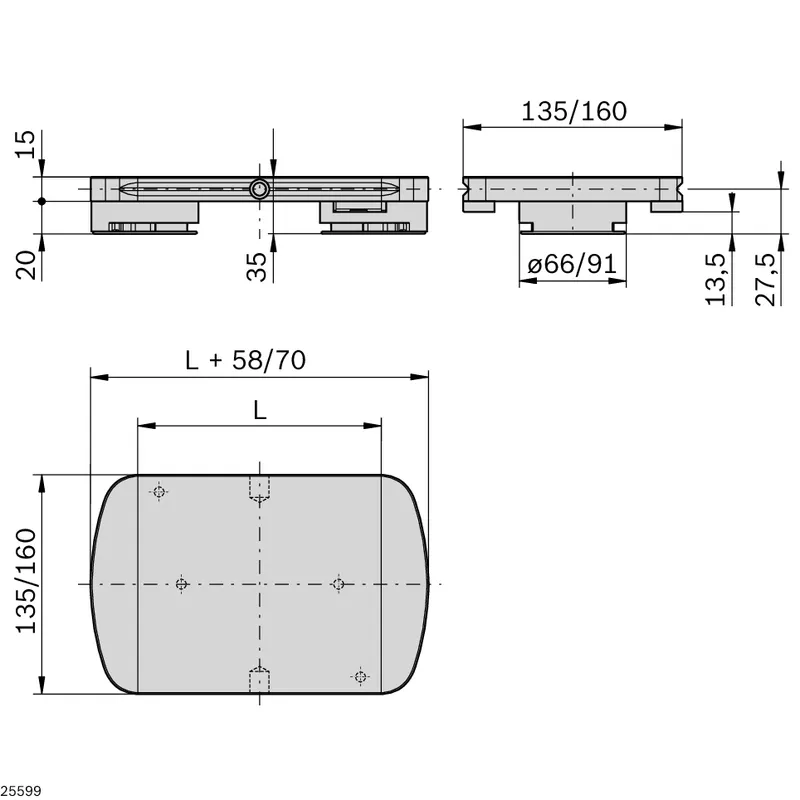

Specifications
Specifications
| Packaging unit | 1 |
| Length [L] | 150.0 |
| Material information | End pieces: PA, black; WT plate: Aluminum; natural, anodized; Workpiece pallet wear pads: Steel, stainless, HV ≥ 480 or PE |
| Size [b] [mm] | 65 |
| Delivery information | Mounted without wear pad, with positioning bushings |
| Weight [kg] | 0.7 |
