Bosch Rexroth 3842538300
STRUT PROFILE 90X90L 4NVS L=6170
- MPN
- 3842538300
- Category
- Strut profile
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth 3842538300?
Strut profile 90x90L 4NVS
Specifications
Specifications
| Condition on delivery | Single rod in standard length |

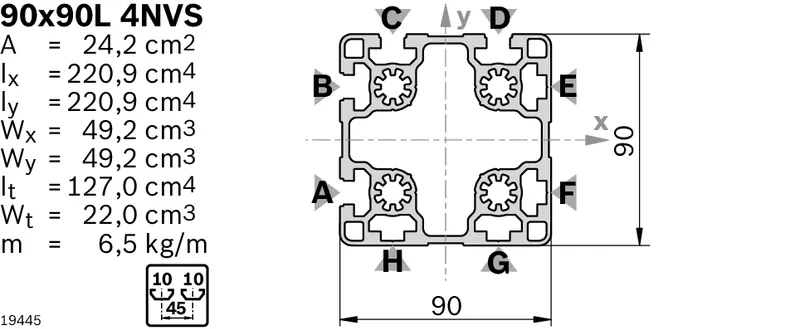

| Cross-section | 90x90L 4NVS |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Dimensions | 90x90 |
| Open slots | 4.0 |
| Profile type | 4NVS |
| Color | Natural |
| Packaging unit | 1 |
| Mass [m] [kg] | 6.5 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 220.9 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 220.9 |
| Profile surface [A] [cm²] | 24.2 |
| Moment of resistance in the x-direction [Wx] [cm³] | 49.2 |
| Moment of resistance in the y-direction [Wy] [cm³] | 49.2 |
| Torsional moment of inertia [It] [cm⁴] | 127.0 |
| Moment of torsion resistance [Wt] [cm³] | 22.0 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Recommended accessories | Cover cap 90x90L, black; Cover cap 90x90L, signal gray |
| Weight [kg] | 40.71 |
No matching specifications
3842538300: frequently asked questions
When can 3842538300 be shipped?
3842538300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842538300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842538300 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842538300, subject to availability and destination.
