Bosch Rexroth 3842537289

SWITCH BRACKET SH 2/U-H

MPN: 3842537289
Category: Switch bracket TS 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842537289?

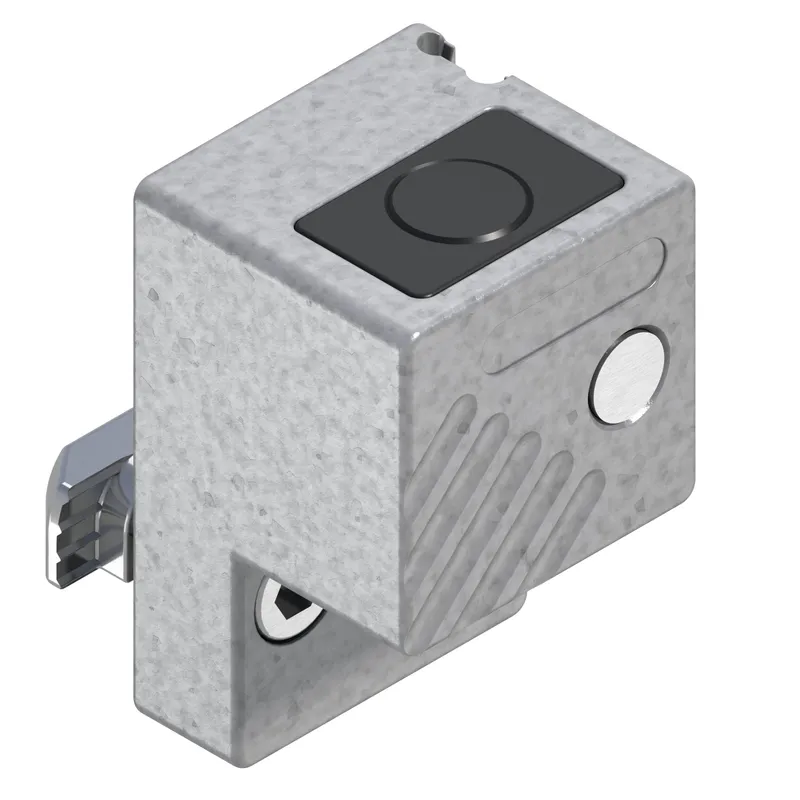

SH 2/U-H switch bracket

For fastening a sensor and attaching to the inside groove of a conveyor section

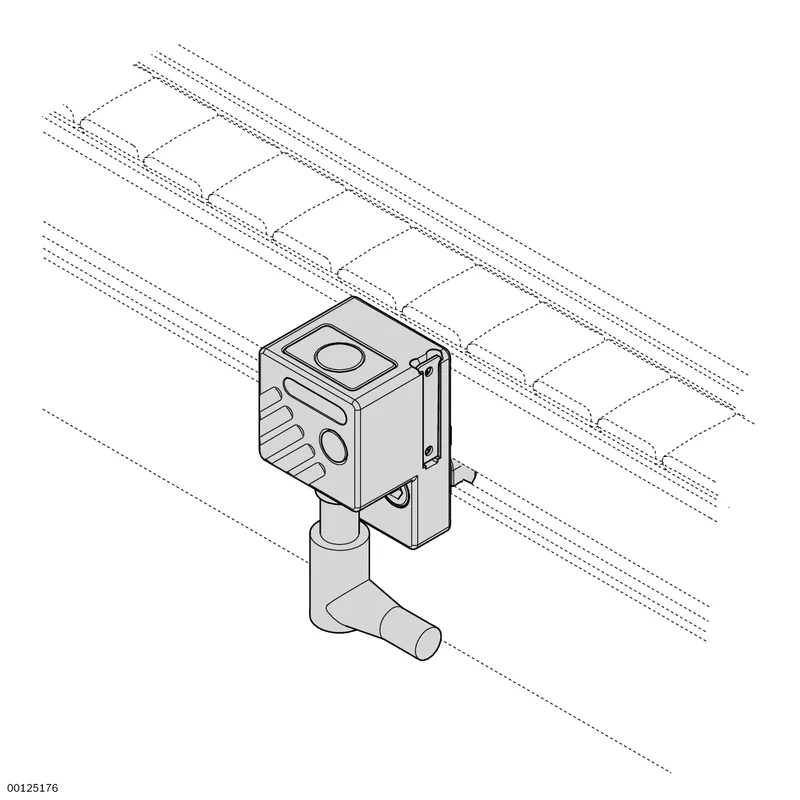

For sensing of the workpiece pallet position from below

Especially sturdy metal design

Able to bear loads of up to 100 kg

Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range

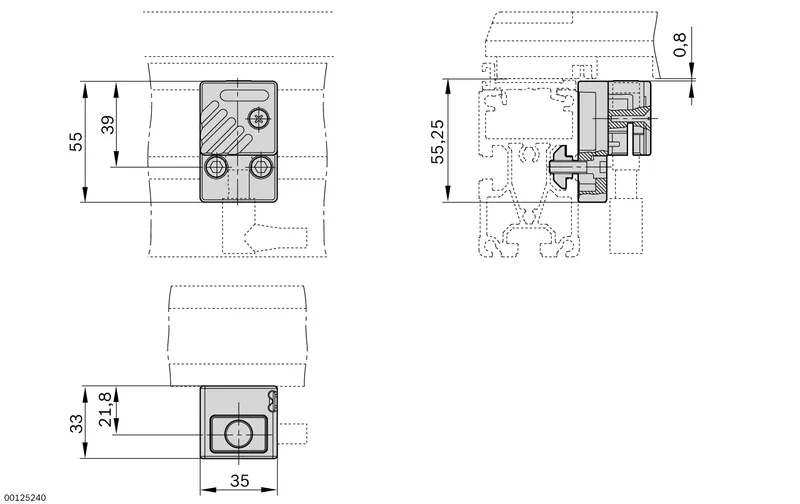

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position

The short length of the switch bracket enables recognition of the operating status of the sensor

The switch bracket can be used to fix a sensor M12x1 in place for lateral sensing of the workpiece pallet position

Specifications

Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Material	Diecast aluminum
Required accessories	Sensor M12, S<sub>N</sub> = 8 mm, L ≥ 44 mm can be installed flush or not flush
Weight [kg]	0.12
