Bosch Rexroth 3842537280

SWITCH BRACKET SH2/S-H M12

MPN: 3842537280
Category: Switch bracket TS 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842537280?

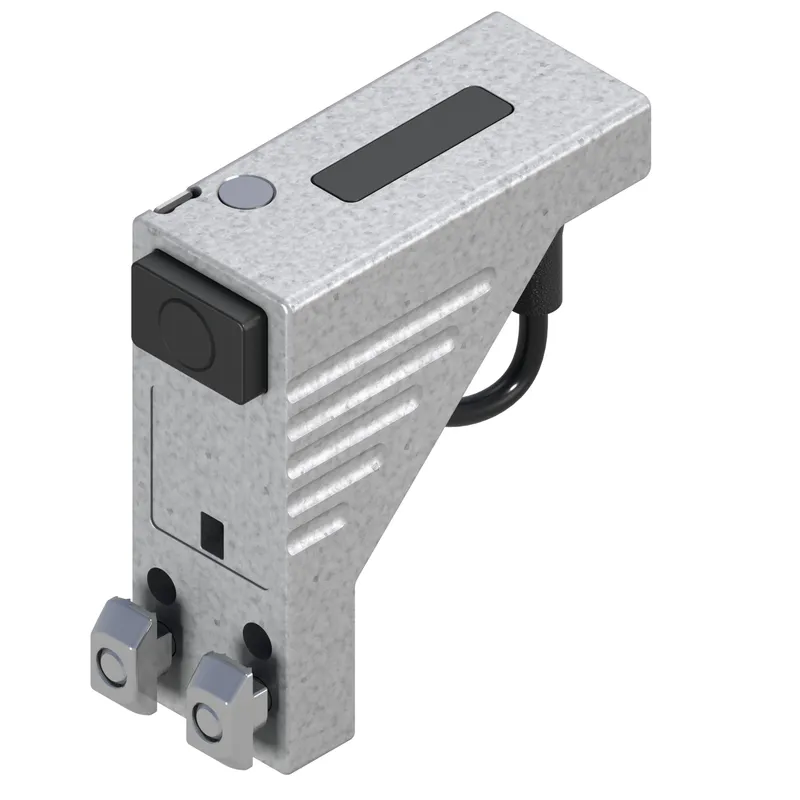

SH 2/S-H Switch Bracket

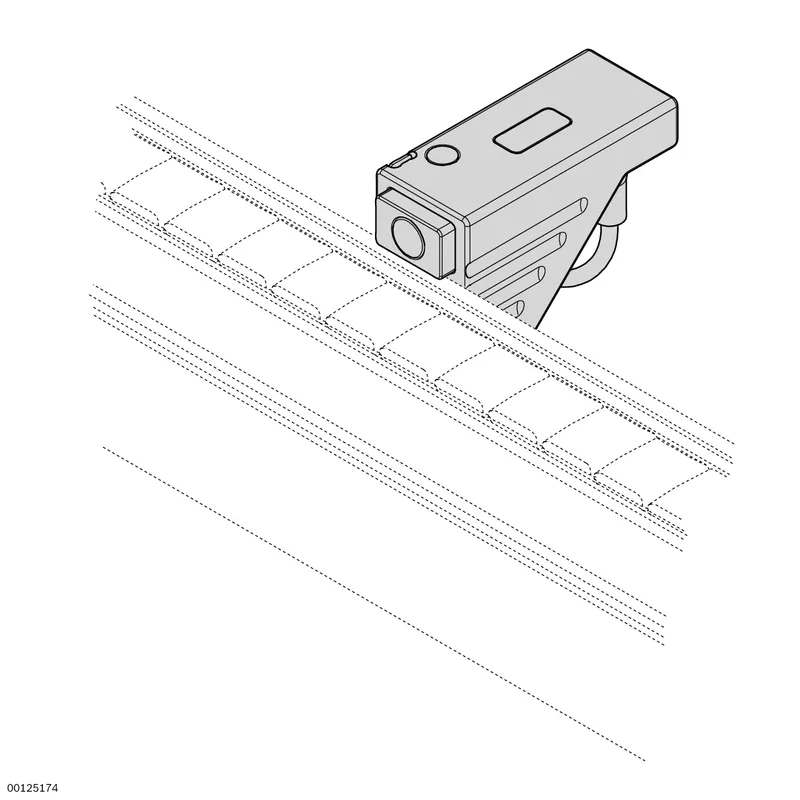

For fastening a sensor and attaching to the outside groove of a conveyor section

Suitable for lateral sensing of the workpiece pallet position

Inspection window to recognize the operating state of the sensor

Especially sturdy metal design

Able to bear loads of up to 100 kg

Switch cover to protect sensor and cable

Simple, fast mounting and replacement of the sensor without adjustment through flush installation with defined sensing range

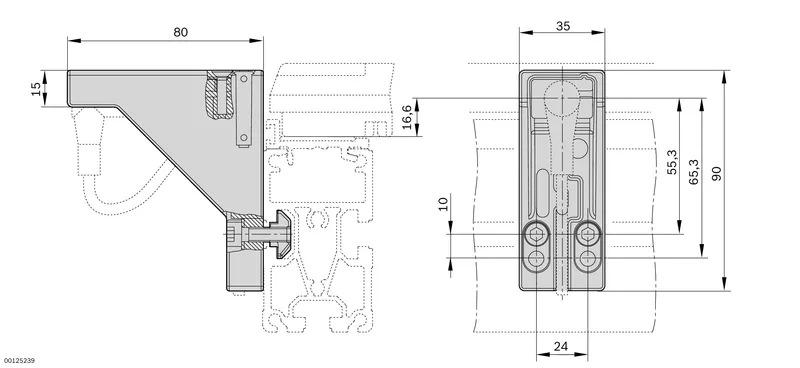

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Changing the sensor is quick and easy by loosening a separate clamping screw. The switch bracket stays in position

The integrated cable routing and cable clamping allows secure and protected cable routing

The switch bracket can be used to fix a sensor M12x1 in place for lateral sensing of the workpiece pallet position

Specifications

Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Material	Diecast aluminum
Required accessories	Sensor M12, S<sub>N</sub> = 8 mm, L ≥ 44 mm can be installed flush or not flush
Weight [kg]	0.2
