Bosch Rexroth 3842528817

POSITION SWITCH F.VE2 VE2L VA2

MPN: 3842528817
Category: Stop gate VFplus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842528817?

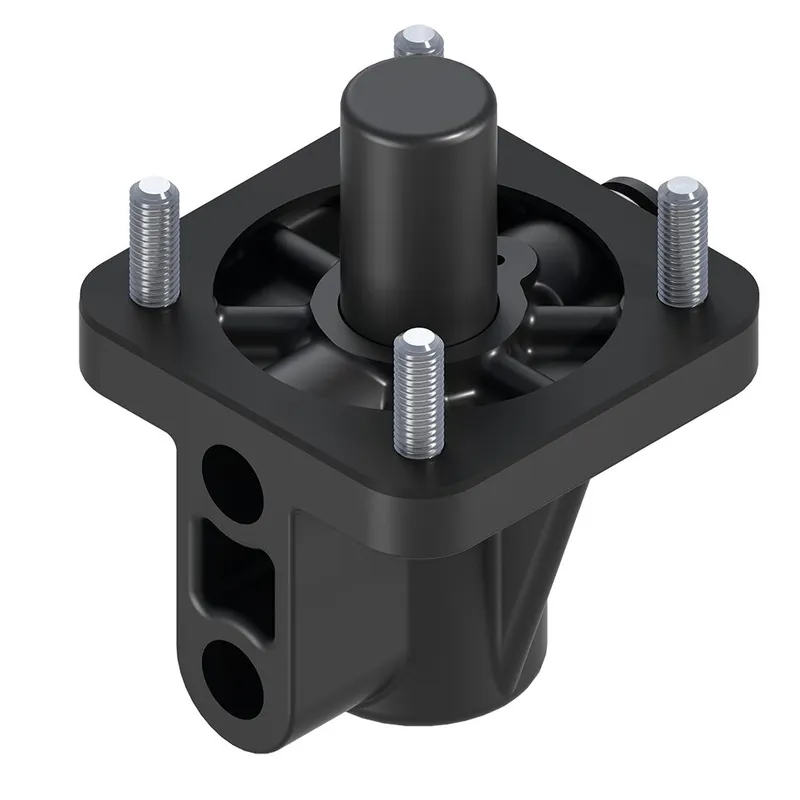

The stop gate position sensor is used to detect the position of the stop gate using sensors.

In the pressureless state, the stop gate goes through a spring in lock position, but is also optionally pneumatically controllable via the position sensing

Position sensing for querying the upper and lower positions

Compressed air connection for double-action stop gate operation

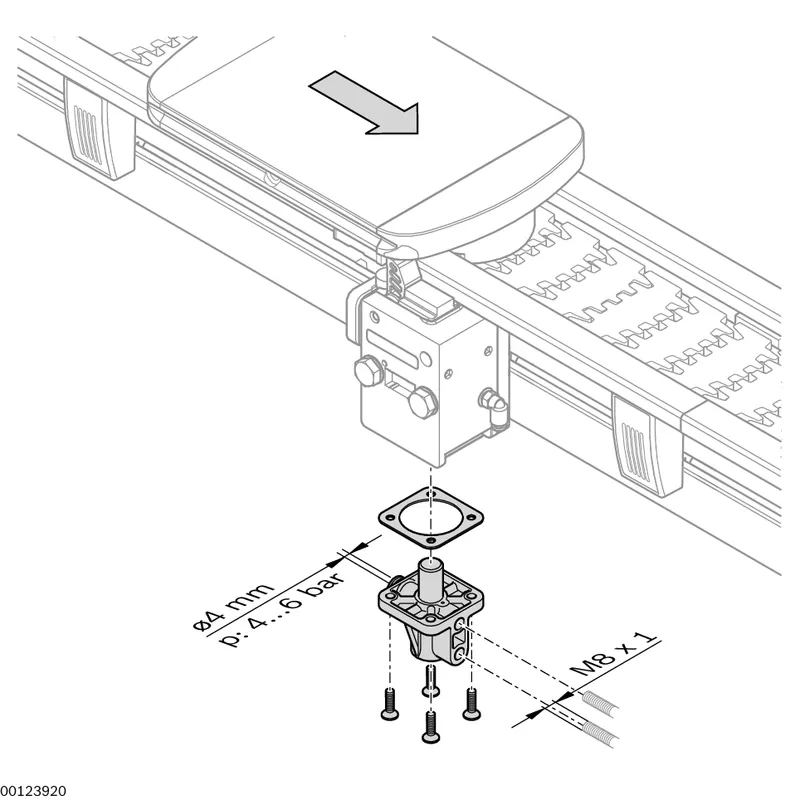

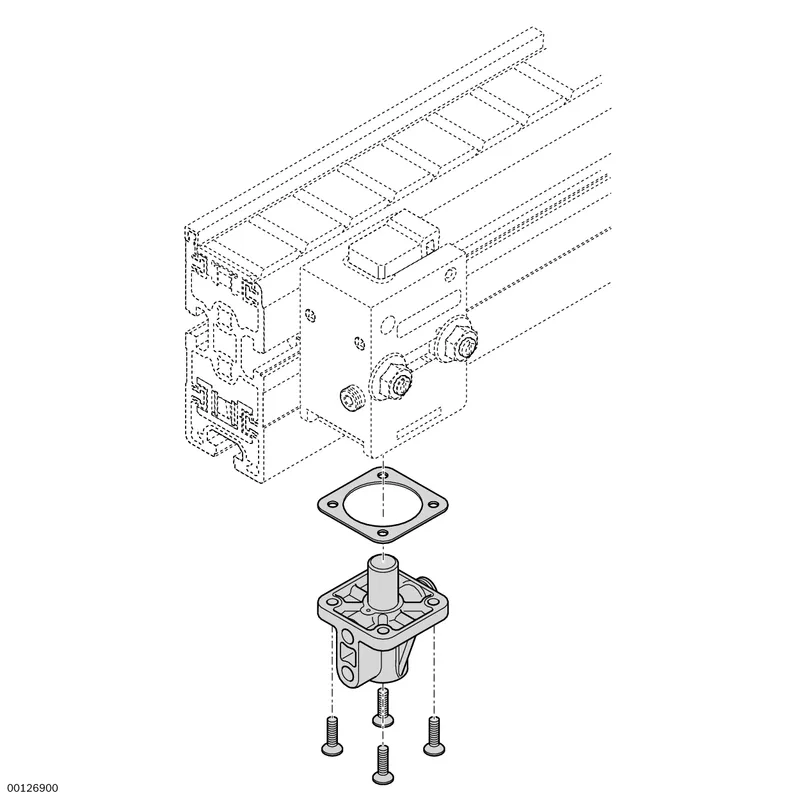

For retrofitting on the stop gates VE 2, VE 2/M, VE 2/L

For retrofitting on the stop gate VE-VF and VE-VF/M

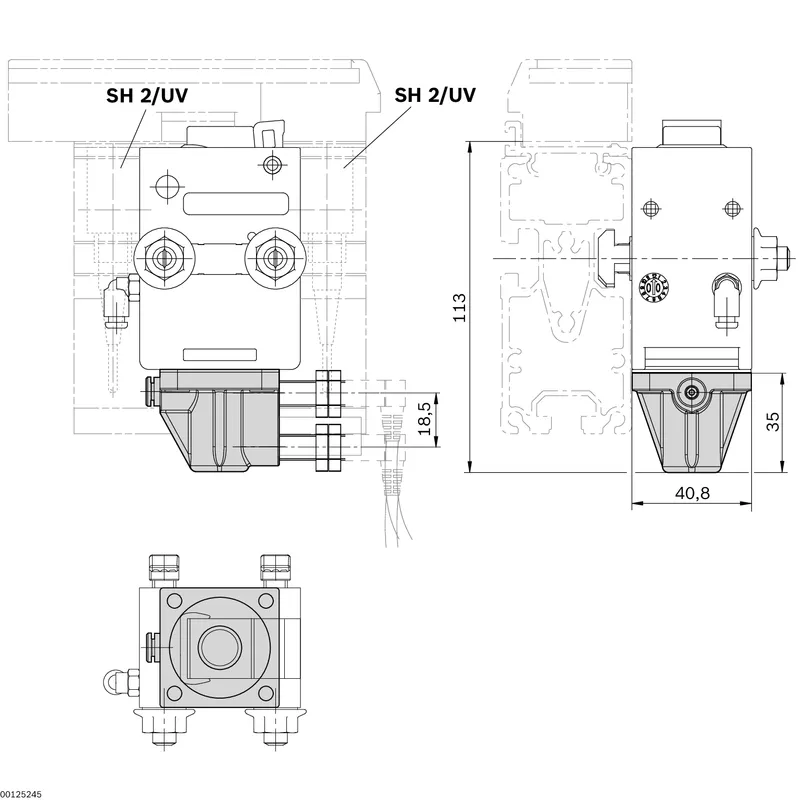

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Pneumatic straight connection [Ø] [mm]	4
Scope of delivery	Incl. fastening material
Material information	Fastening parts: Steel, galvanized; Position sensor: PA, black

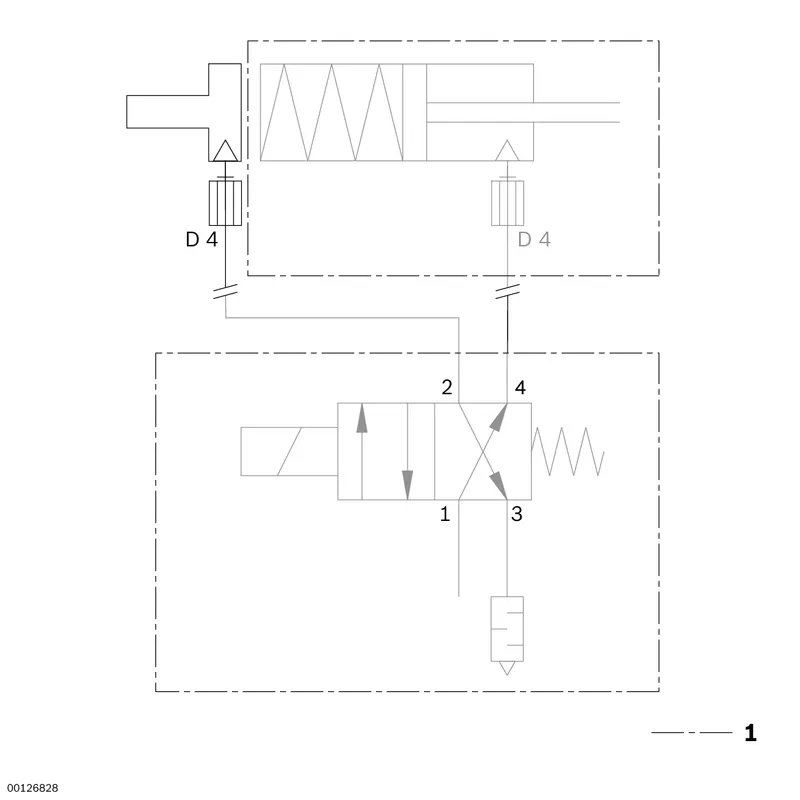

Pneumatic circuit diagram	1 Not included in the scope of delivery
Required accessories	2x sensor M8x1 with rated switching distance S<sub>N</sub> ≥ 2 mm, can be installed flush
Weight [kg]	0.06
