Bosch Rexroth 3842528808

SLIDE STOP VA 2

MPN: 3842528808
Category: Slide stops

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

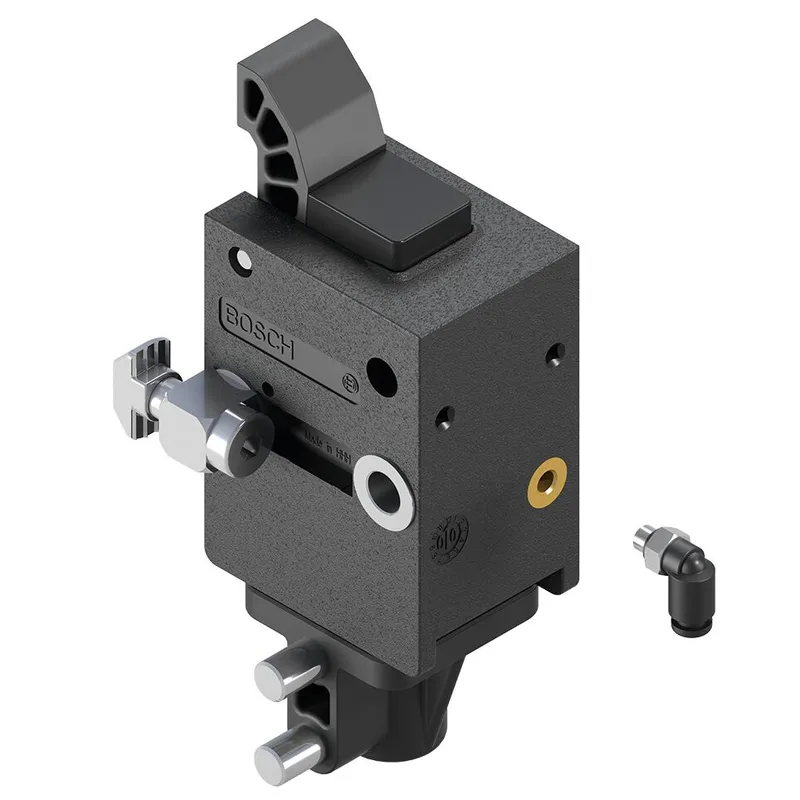

What is the Bosch Rexroth 3842528808?

Slide stop, can be lowered pneumatically

Reversible operation not permitted

Detachable position sensing of the slide stop position using sensors

Not suitable for ST 2...-H sections

Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS

The slide stop is used in a transverse section that connects more than two longitudinal sections and that requires supplementary stops

A lift transverse unit can feed in the workpiece pallet onto the longitudinal section when the slide stop is activated

When depressurized, the pneumatically lowered slide stop is extended to the upper end position

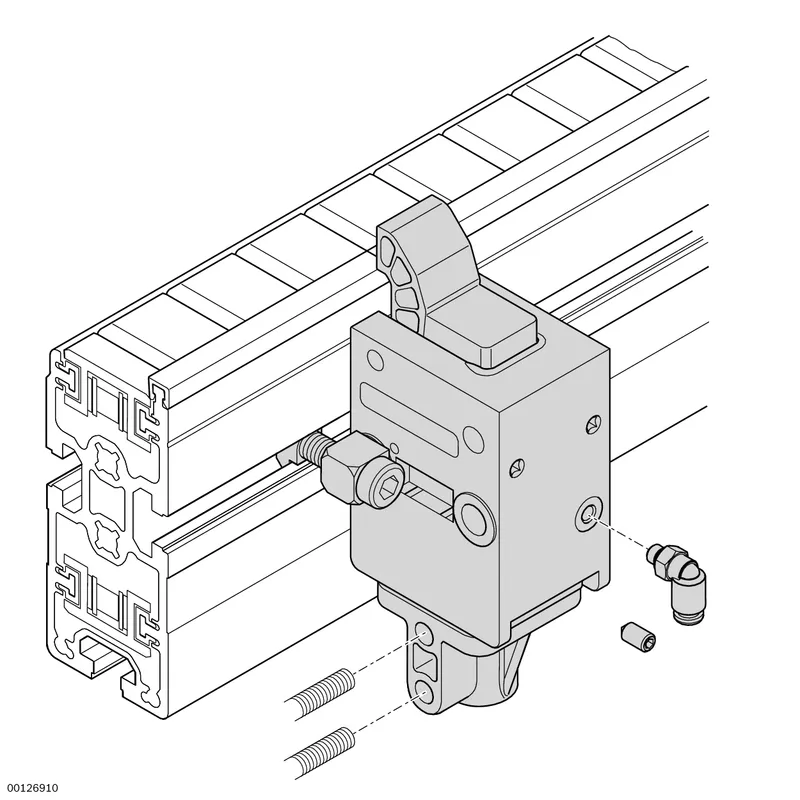

Mounted inside the tracks, directly on the conveyor section

Specifications

required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Operating temperature [T] max	+60 °C
Workpiece pallet total weight [mG] [kg]	50
Pneumatic straight connection [Ø] [mm]	4
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section; Position inquiry
Material information	Housing: PA 6; Safety catch: Brass; Stop cam: PA 66

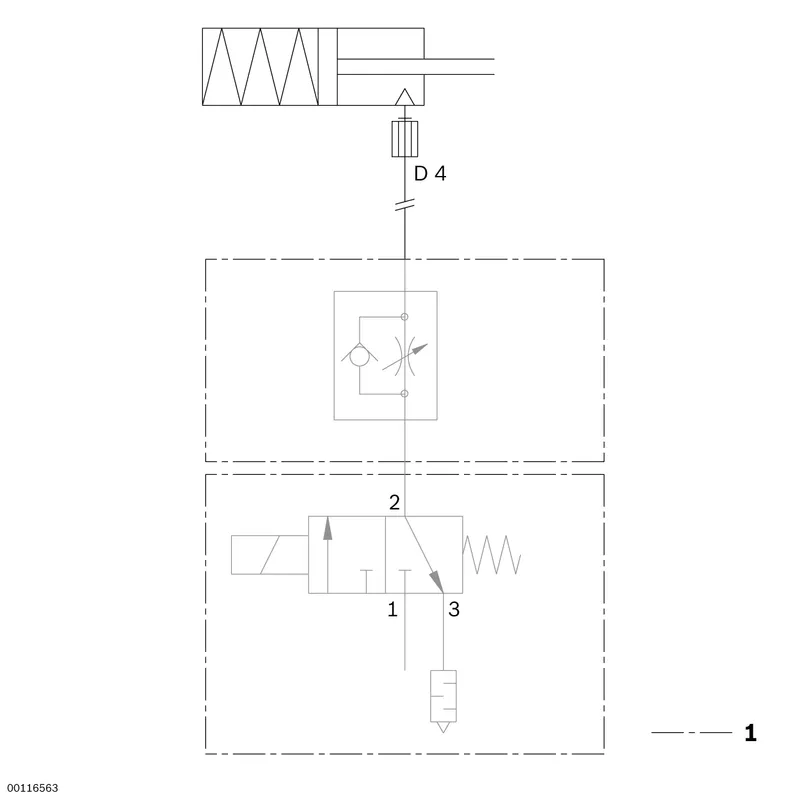

Pneumatic circuit diagram	1 Not included in the scope of delivery
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	50 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	50 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	35 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	25 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	20 kg
Recommended accessories	2x sensor M8x1
Weight [kg]	0.4
