Bosch Rexroth 3842525734

DAMPER DA 2/100-C

MPN: 3842525734
Category: Damper TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842525734?

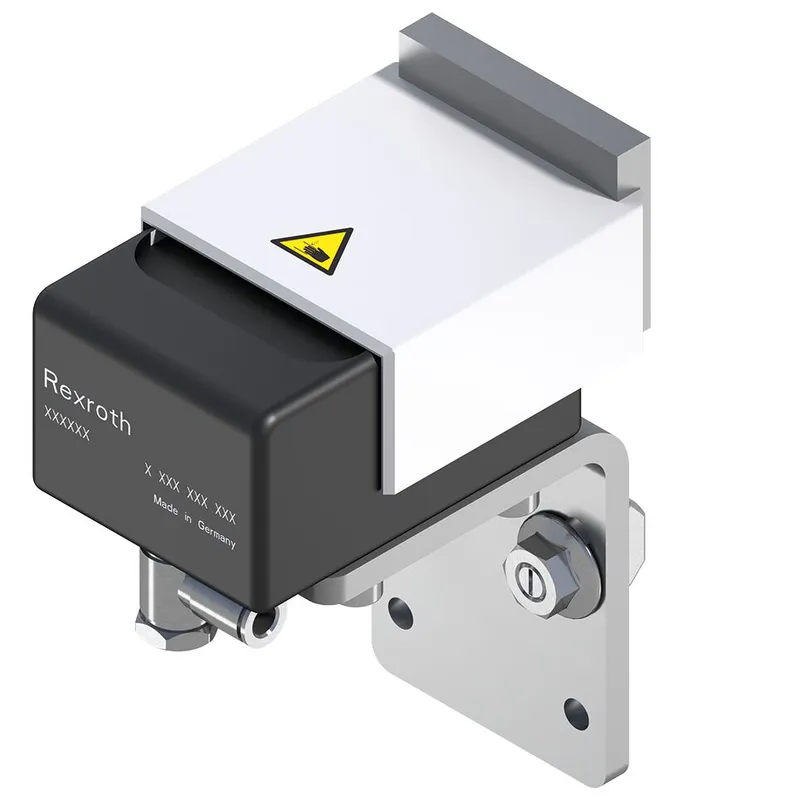

DA 2/100-C Damper

For permitted total weight of workpiece pallets up to 100 kg

Pneumatic damper

Infinitely adjustable

During infeeding in a longitudinal section

Optimal damping at a ratio of 2:1 between heavy and light workpiece pallets

Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H

Installation location: ST 2/... section, BS 2/... belt section

The damper cushions the impact of the arriving workpiece pallet

The DA 2/100-C is suitable for infeeding from a transverse section into a longitudinal section

It is mounted directly on the section profile of the longitudinal section

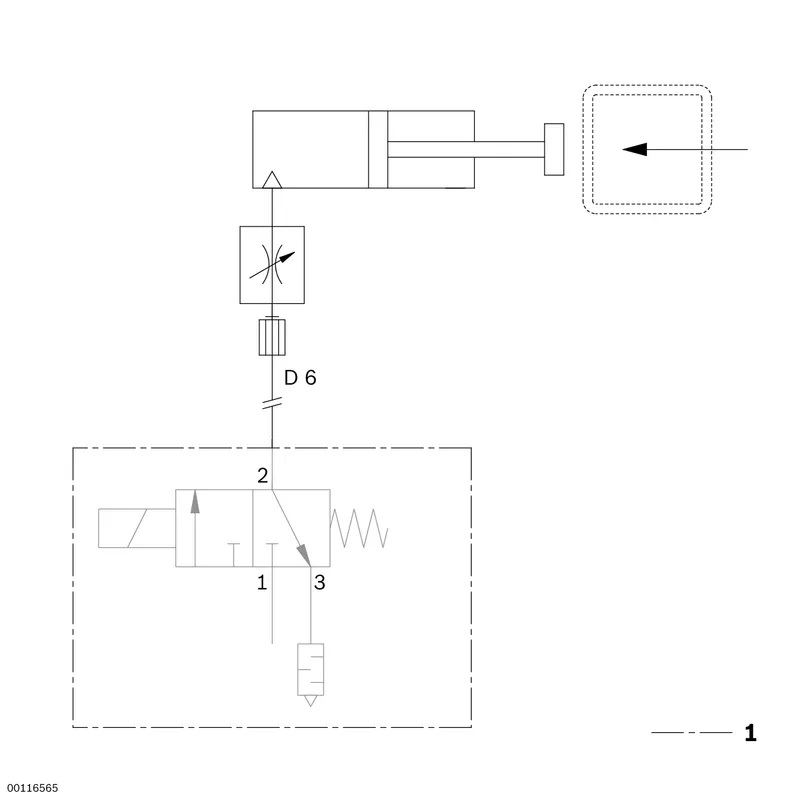

The pneumatic return occurs as the stop gate opens, which permits the workpiece pallet to move toward the damper

The damper is not traversable

Specifications

ESD	Yes
Operating temperature [T] max	0 ... +60 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	100; 100; 55; 95
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Damper DA 2/100-C for infieeding of the workpiece pallets WT 2 and WT 2/F; Incl. fastening material
Delivery information	Not assembled
Notice	High-temperature damper on request
Material information	Housing: Aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	5 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	95 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	55 kg
Weight [kg]	1.49
