Bosch Rexroth 3842525733

DAMPER DA 2/100-B

MPN: 3842525733
Category: Damper TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842525733?

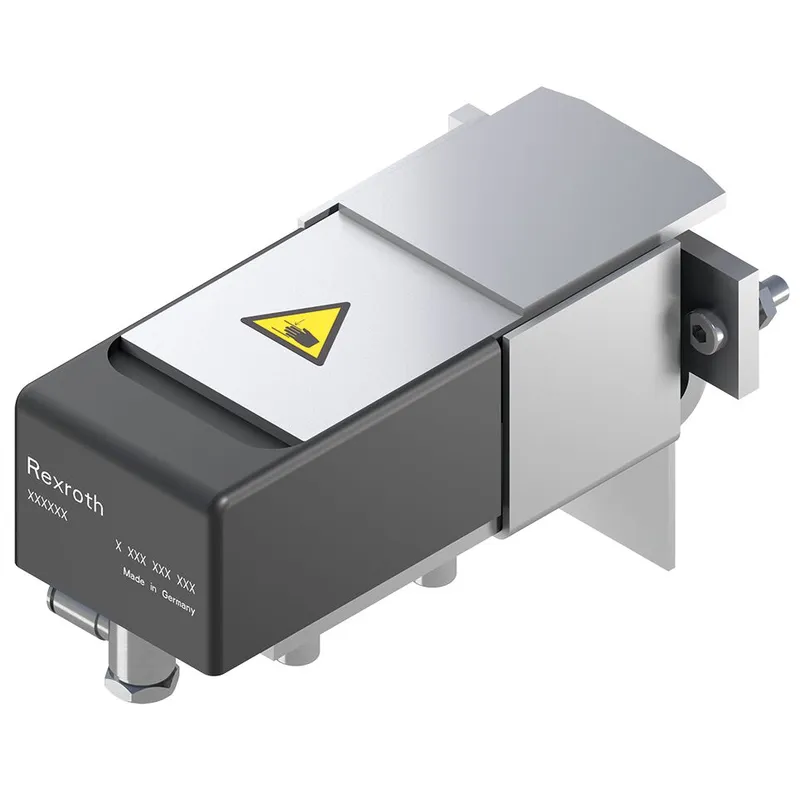

DA 2/100-B Damper

For permitted total weight of workpiece pallets up to 100 kg

Pneumatic damper

Infinitely adjustable

Before outfeeding via an HQ 2/U2 lift transverse unit

Optimal damping at a ratio of 2:1 between heavy and light workpiece pallets

Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H

Installation location: HQ 2/U2... lift transverse unit

The damper cushions the impact of the arriving workpiece pallet

The DA 2/100-B is suitable for outfeeding via a lift transverse unit HQ 2/U2

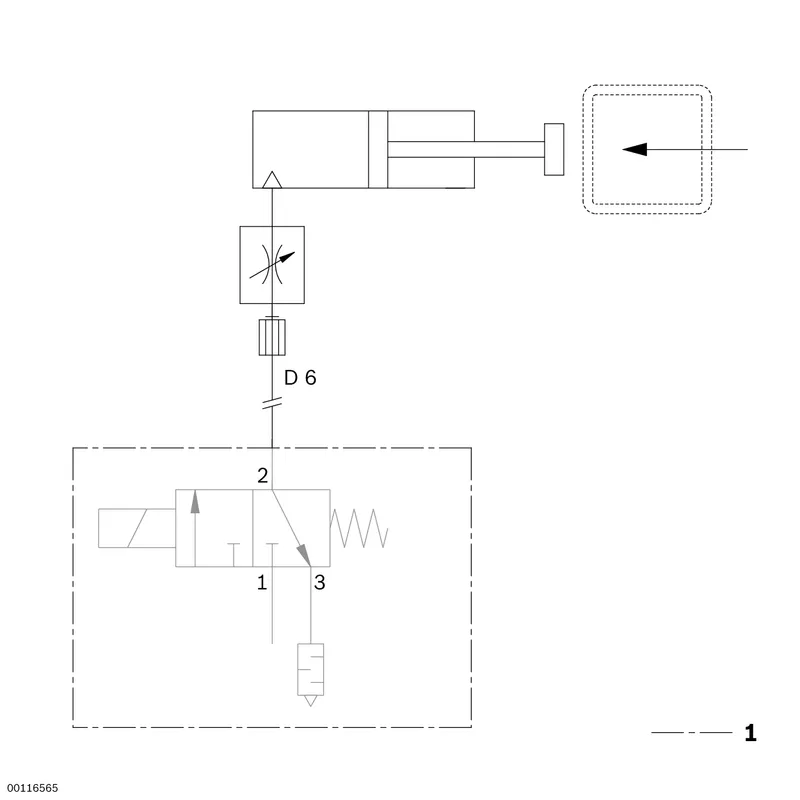

The pneumatic return occurs as the stop gate opens, which permits the workpiece pallet to move toward the damper

Mounted at the end or in the transverse conveyor directly on the conveyor section, since the damper is not traversable

Specifications

ESD	Yes
Operating temperature [T] max	+5 ... +60 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	100; 100; 55; 95
Pneumatic straight connection [Ø] [mm]	6

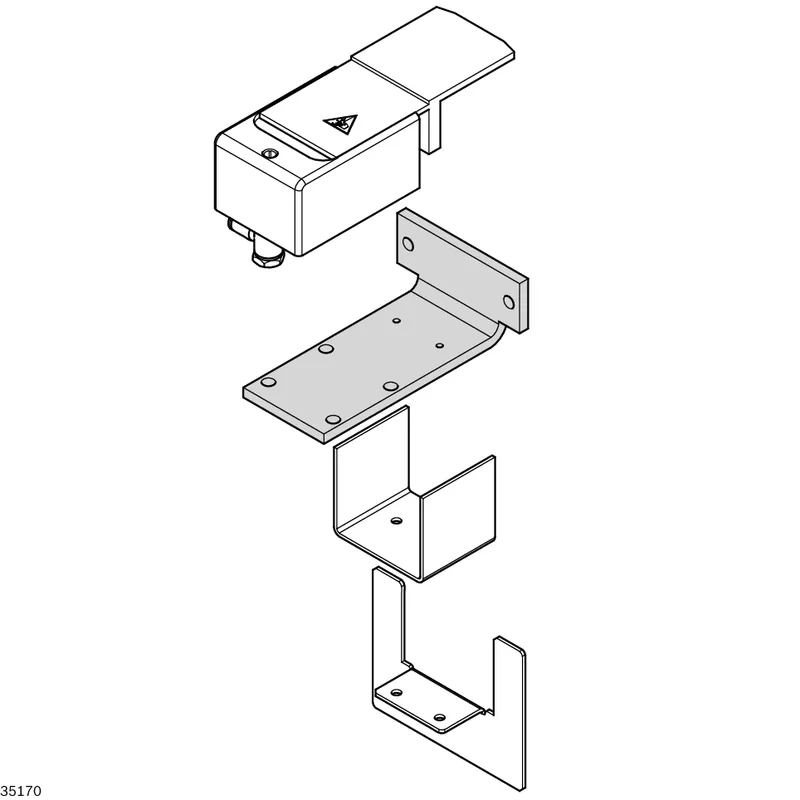

Scope of delivery	Damper DA 2/100-B for outfeeding the workpiece pallets WT 2, WT 2/F, WT 2/H or WT 2/F-H via an HQ 2/U2; Incl. fastening material; required at vN > 12 m/min or total mass of workpiece pallet > 1 kg/cm
Delivery information	Not assembled
Notice	High-temperature damper on request
Material information	Housing: Aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	5 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	95 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	55 kg
Weight [kg]	1.6
