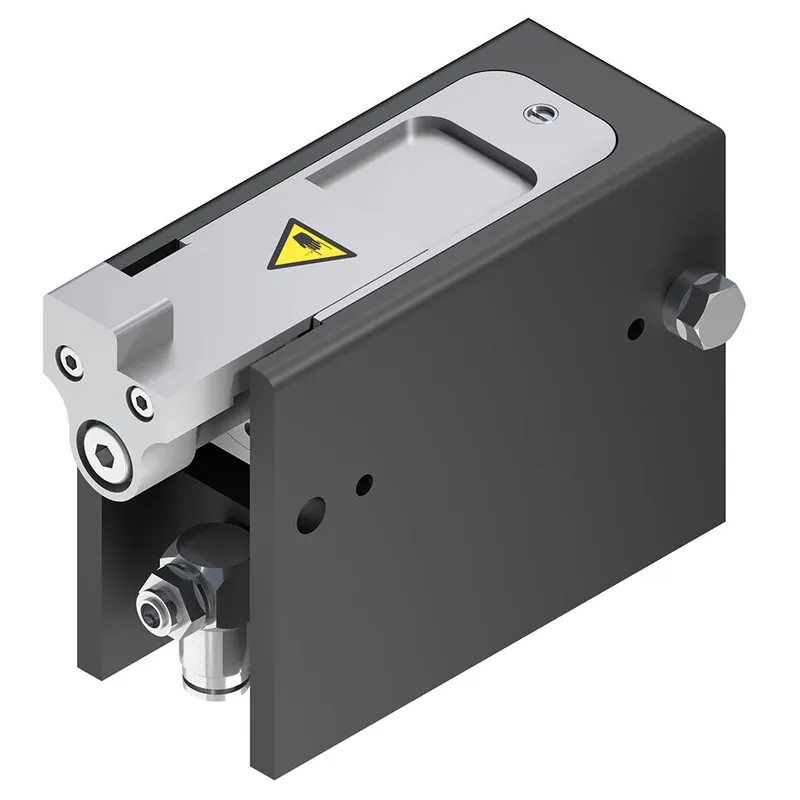

STOP GATE VE 2/D-200

Name: STOP GATE VE 2/D-200
Brand: Bosch Rexroth
SKU: 3842524895

MPN: 3842524895 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Dampened stop gates
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842524895 be shipped?

3842524895 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842524895 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842524895 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842524895, subject to availability and destination.

Dampened stopping of the first accumulating workpiece pallet Pneumatic stop gate Infinitely adjustable damping Optimum damping for workpiece pallet total weights between 50 kg and 200 kg Can be combined with WT 2 and WT 2/F When the pressure is released, the stop gate is held in the lock position by a spring and the workpiece pallet is stopped Stops one or more accumulating workpiece pallets at the defined stop surface Mounted inside the tracks, directly on the conveyor section <b>Notice:</b> Combination with WT 2/LS not possible

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Operating temperature [T] max	+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]	200
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Incl. all fastening material to mount on ST 2/... conveyor section
Delivery information	Fully assembled
Notice	High-temperature stop gate on request
Material information	Housing: Aluminum, hard anodized; Stop cam: Steel, hardened
Min. workpiece pallet weight m	5 kg

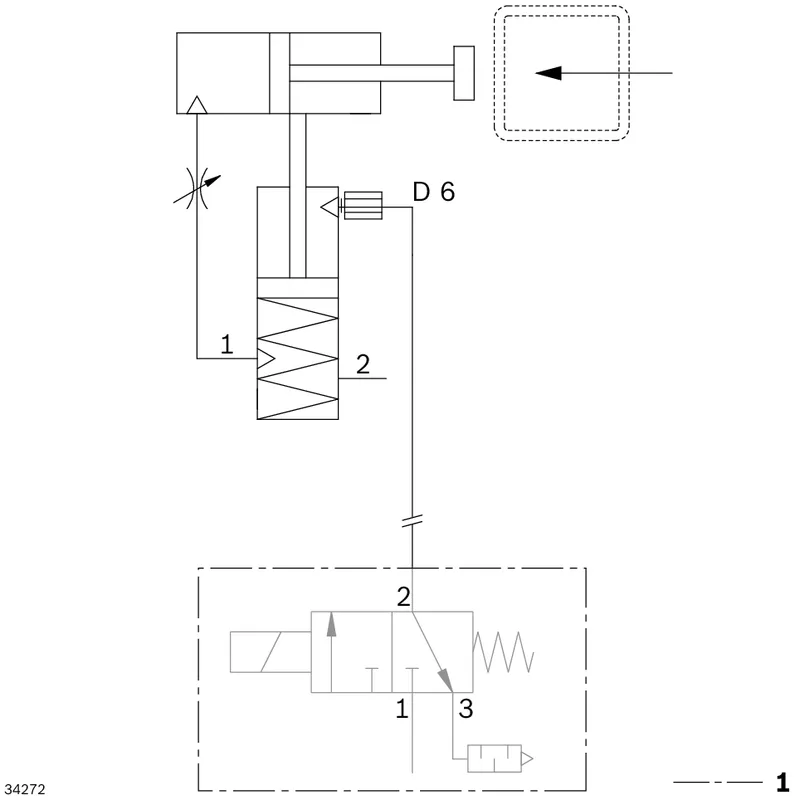

Pneumatic circuit diagram	1 Not included in the scope of delivery

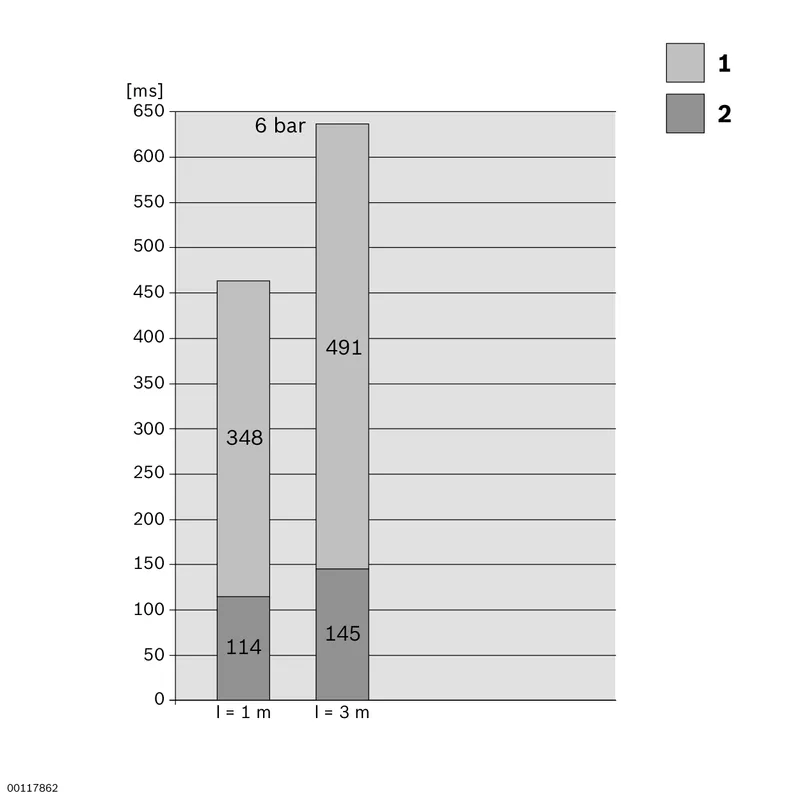

Opening/shutting times	1 Close; 2 Open at 4 bar; l = Hose length
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	200 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	140 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	100 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 24 m/min	55 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 30 m/min	35 kg
Recommended accessories	VE 2/RS Return Stop
Weight [kg]	1.94
