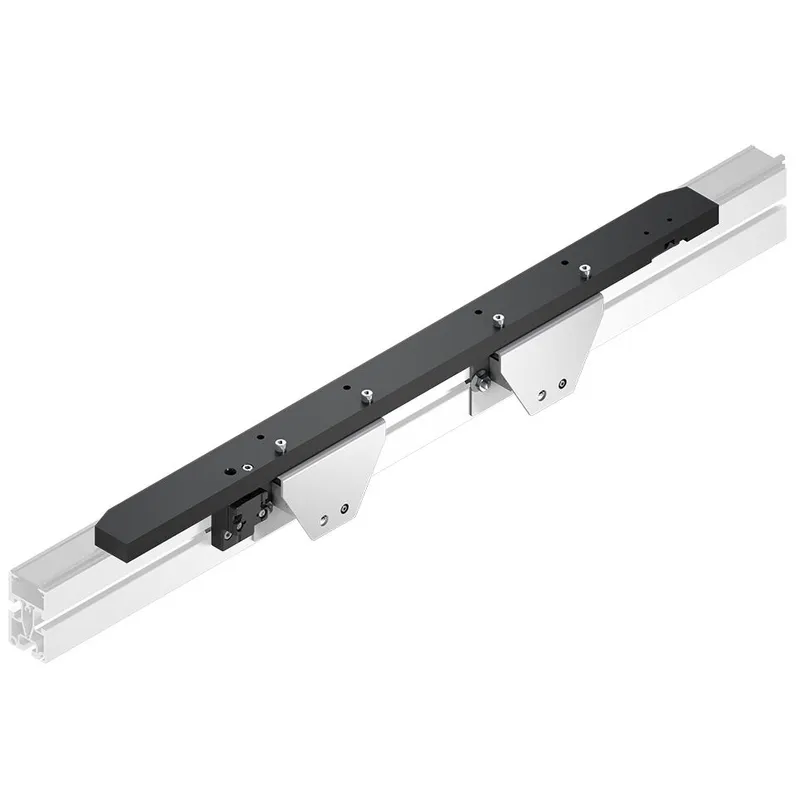

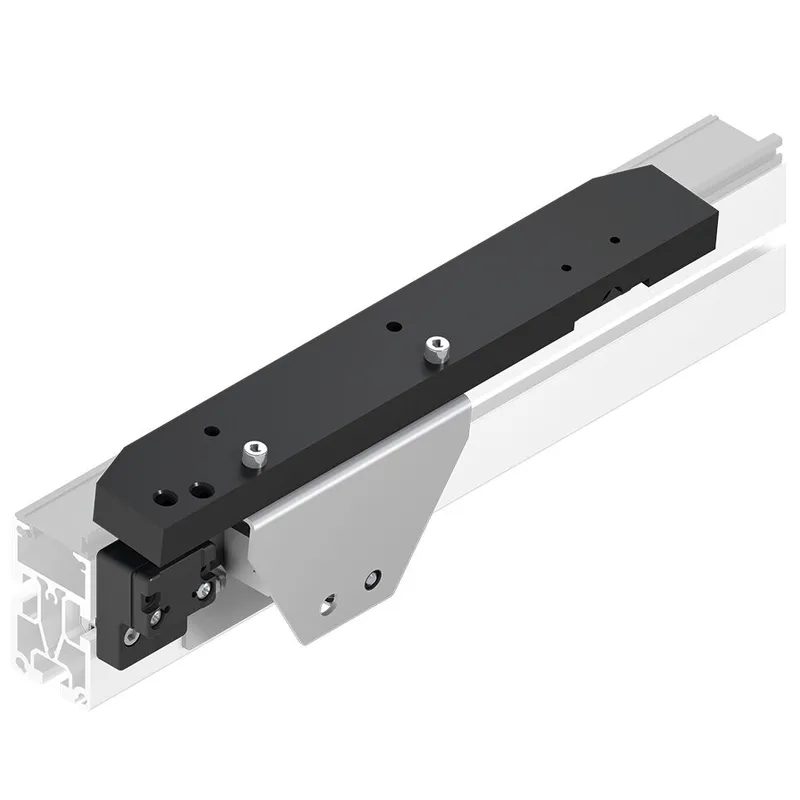

What is the Bosch Rexroth 3842348786?

Rocker WI 2, b Q 640

For area monitoring

For workpiece pallet recognition

As a stop for transverse conveying of workpiece pallets

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2, WT 2/F and WT 2/LS

Suitable for use in an EPA

Specifications

ESD	Yes
Length [l] [mm]	720
Track width in the transverse conveyor [bQ] [mm]	640
Mass [m] [kg]	3
Workpiece pallet total weight [mG] [kg]	30
Scope of delivery	Including fastening material for installation on ST 2/... conveyor section or BS 2/... belt section.
Length [L]	720.0
Notice	Max. total WT weight applies when infeeding from a transverse section into a main section; for area monitoring, only the max. system weight of 240 kg cannot be exceeded; Min. WT weight applies per rocker body
Monitoring range [mm]	670
Required accessories	Sensor M12 circular with rated switching distance S<sub>N</sub> = 4 mm at vertical installation; Sensor M12 circular with rated switching distance S<sub>N</sub> = 8 mm at horizontal installation
Weight [kg]	1.86
