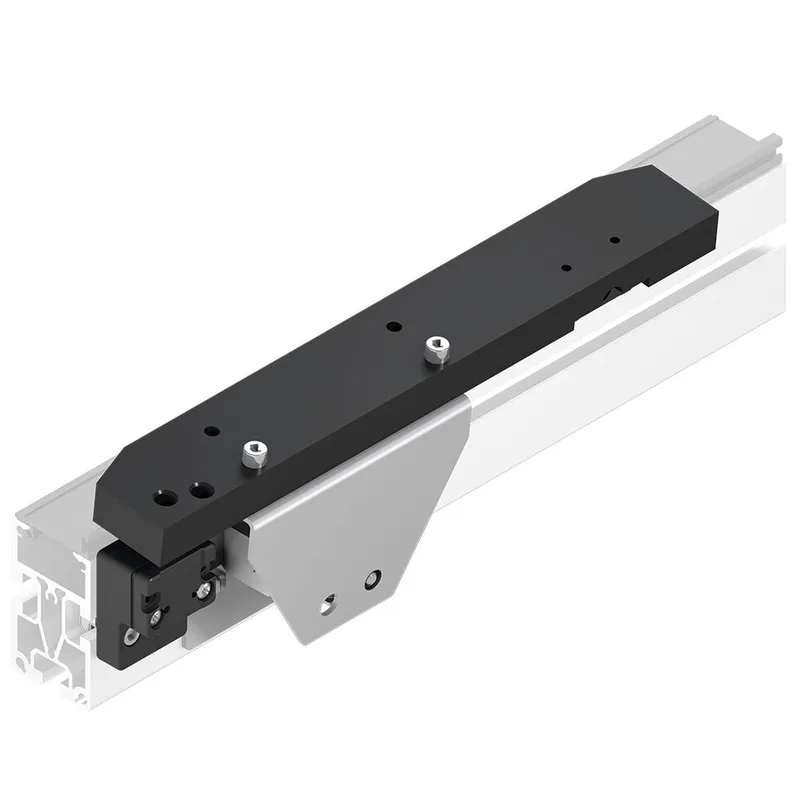

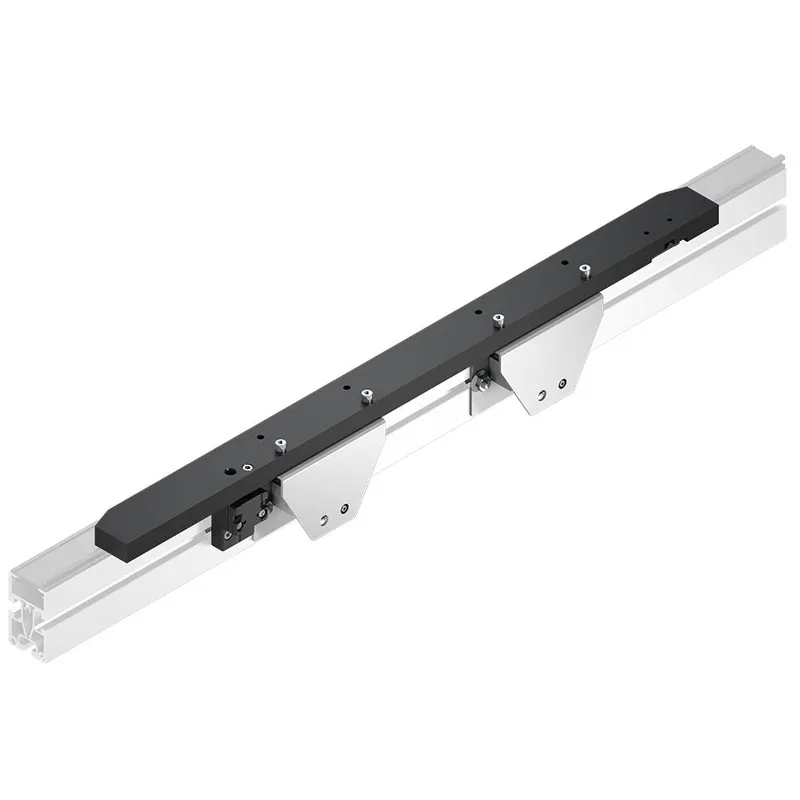

Bosch Rexroth 3842348782

ROCKER WI 2 BQ=320

MPN: 3842348782
Category: Rockers

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842348782?

Rocker WI 2, b Q 320

For area monitoring

For workpiece pallet recognition

As a stop for transverse conveying of workpiece pallets

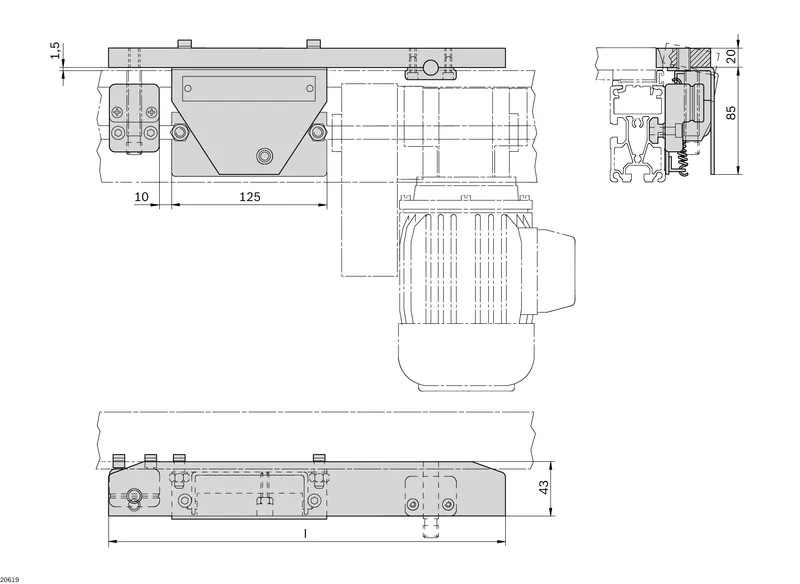

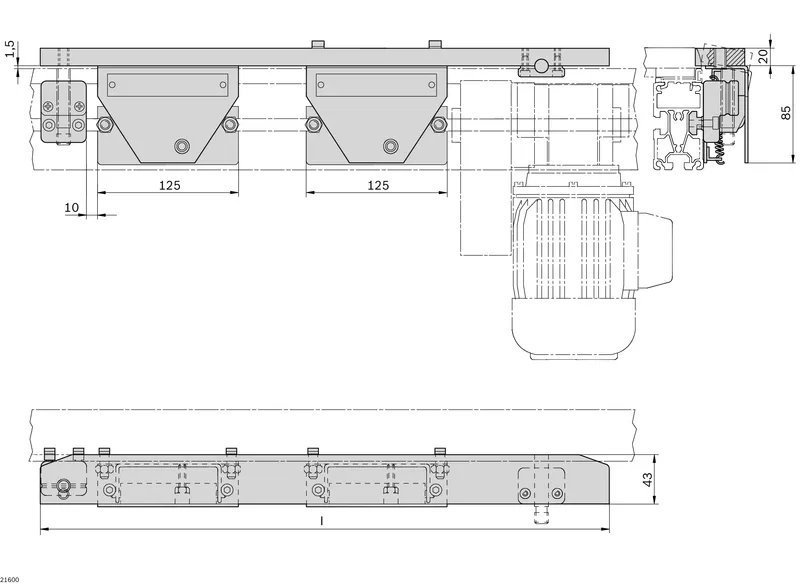

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2, WT 2/F and WT 2/LS

Suitable for use in an EPA

Specifications

ESD	Yes

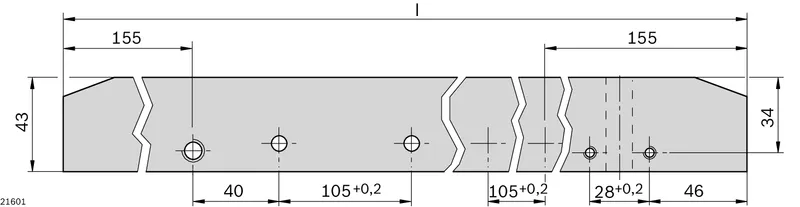

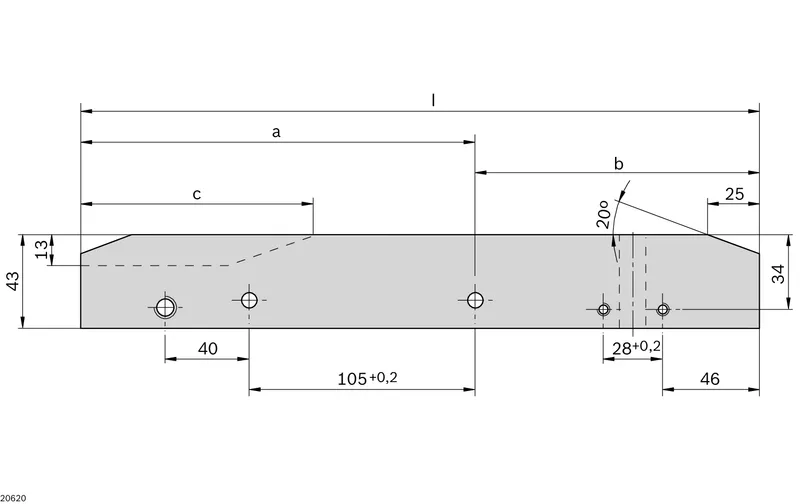

Dimension [a] [mm]	245
Dimension [b] [mm]	155
Length [l] [mm]	400
Track width in the transverse conveyor [bQ] [mm]	320
Dimension [c] [mm]	25
Mass [m] [kg]	1.5
Workpiece pallet total weight [mG] [kg]	30
Scope of delivery	Including fastening material for installation on ST 2/... conveyor section or BS 2/... belt section.
Length [L]	400.0
Notice	Max. total WT weight applies when infeeding from a transverse section into a main section; for area monitoring, only the max. system weight of 240 kg cannot be exceeded; Min. WT weight applies per rocker body
Monitoring range [mm]	350
Required accessories	Sensor M12 circular with rated switching distance S<sub>N</sub> = 4 mm at vertical installation; Sensor M12 circular with rated switching distance S<sub>N</sub> = 8 mm at horizontal installation
Weight [kg]	1.04
