Bosch Rexroth 3842174303

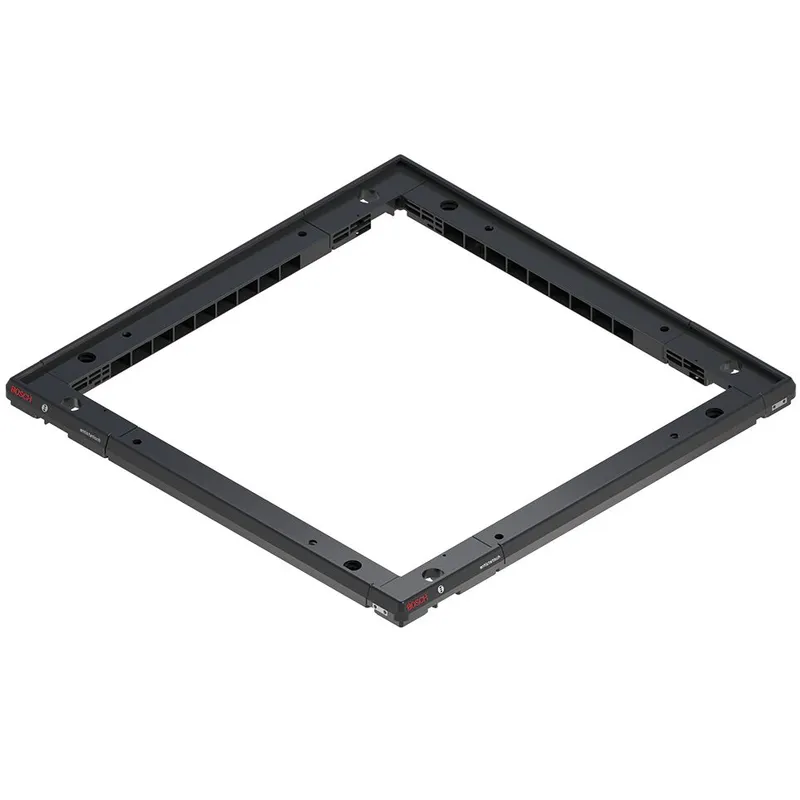

FRAME MODULE WT320 A

MPN: 3842174303
Category: Standard frame module

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842174303?

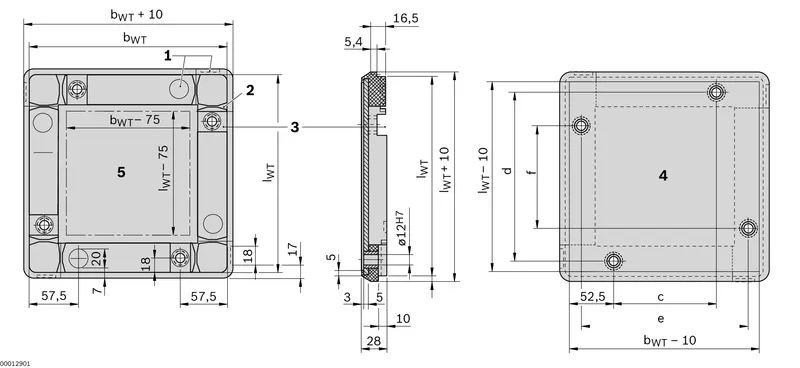

Standard frame module, corner module (PA) 320

Corner modules with standard side lengths of 160 to 400 mm

320 mm frame extension module

Material:

- Corner/extension module (PA) with PA (= polyamide) wear pad or

- Corner/extension module (PA) with PE (= polyethylene) wear pad

For overall weights m W > 50 kg and for conveying speeds v N >12 M/min, reinforced frame modules are required

Can be combined with WT 2 carrying plates

Specifications

Workpiece pallet total weight [mG] [kg]	50
Side lengths [bWT, lWT] [mm]	320
Weight [kg]	0.14
