Bosch Rexroth 3842168840

SWITCH BRACKET SH 2/SF

MPN: 3842168840
Category: Switch bracket TS 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842168840?

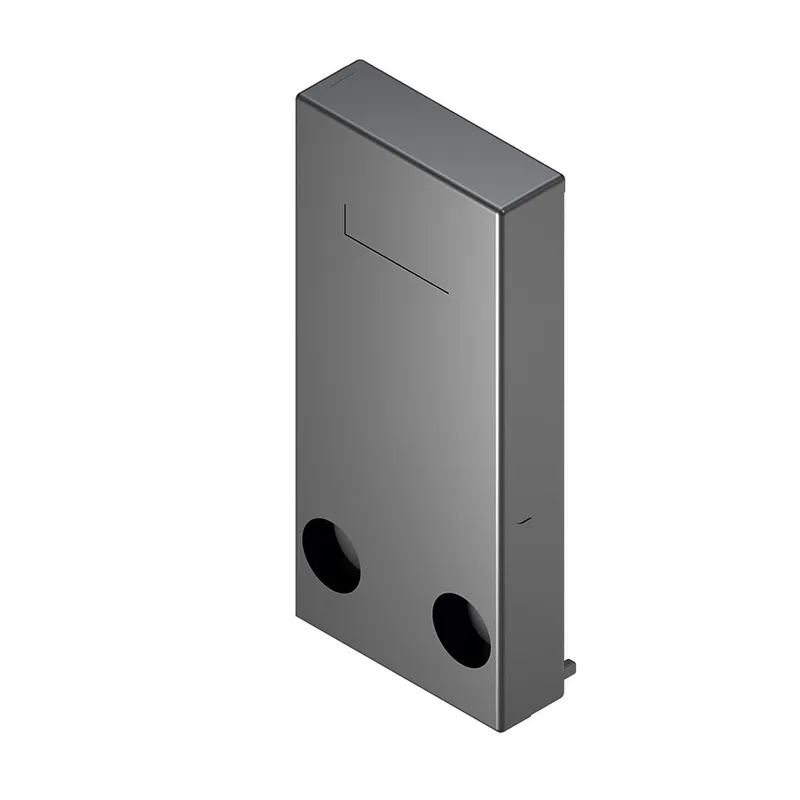

SH 2/SF Switch Bracket

For fastening a sensor with special flat design

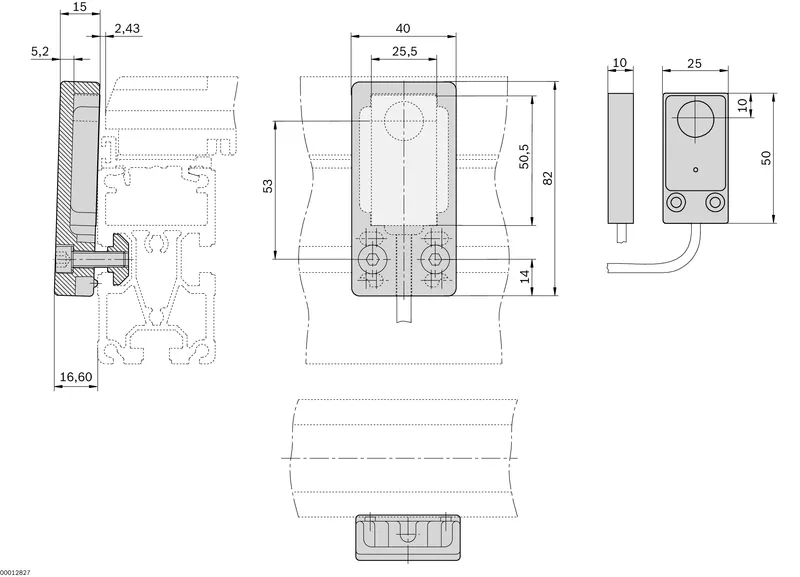

Installation in the upper groove on the side of a conveyor section

Notice: Not suitable for use in heavy duty profiles and sections with a profile width of 50 mm, for example ST 2/C-H, ST 2/R-H, BS 2/R-H, BS 2/C-H

The switch bracket can be used to fix a sensor in special flat form in place for lateral sensing of the workpiece pallet position

Specifications

Scope of delivery	Incl. fastening material
Delivery information	Not assembled
Material	PA 6
Required accessories	Sensor in flat special shape with rated sensing range S<sub>N</sub> ≥ 4 mm, e. g. Balluff BES 516-347-SA-2-03
Weight [kg]	0.07
