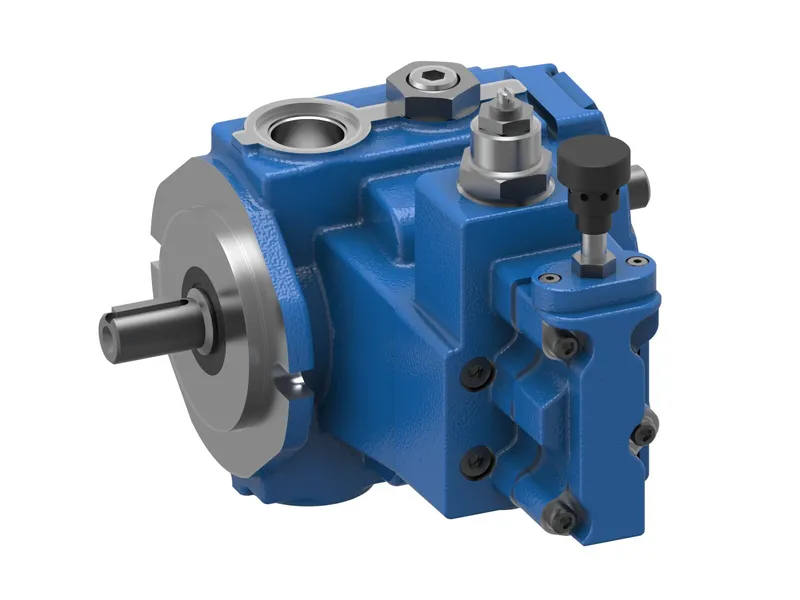

Bosch Rexroth 0513800248
VANE PUMP 0513R18C3VPV80SM21HYB05
- MPN
- 0513800248
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 0513800248?
High reliability thanks to a robust design. Low noise and pulsation level. Dynamic control behavior.
Pressure controller with optional hydraulic remote pressure adjustment
With limitation of the maximum flow
With FKM seals
Specifications
Specifications
| Displacement type | variable |
| Size [cm³] | 80 |
| Product family | VPV |
| Operating pressure, max. [bar] | 210.0 |
| Max. flow [l/min] | 144.0 |
| Controls | with hydraulic actuation |
| Through-drive | without |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 31.7 mm with fitting key |
| Mounting flange | 2-hole mounting flange 127-2 according to ISO 3019-1 |
| Connection type, working port | Flange connection |
| Hydraulic fluid | HEES; HEPG; HETG; HFDU; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Weight [kg] | 58 |
0513800248: frequently asked questions
When can 0513800248 be shipped?
0513800248 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0513800248 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0513800248 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0513800248, subject to availability and destination.
