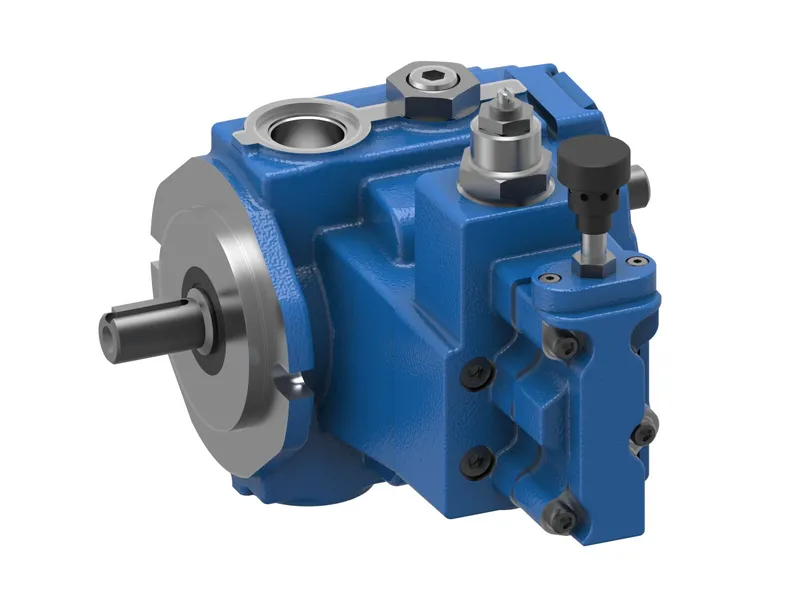

VANE PUMP 0513R18C3VPV80SM21HYB05P1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Rotary vane variable displacement pumps |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0513800238 be shipped?
0513800238 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0513800238 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0513800238 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0513800238, subject to availability and destination.
High reliability thanks to a robust design. Low noise and pulsation level. Dynamic control behavior. Pressure controller with optional hydraulic remote pressure adjustment With limitation of the maximum flow With FKM seals With through drive
Specifications
Specifications
| Displacement type | variable |
| Size [cm³] | 80 |
| Product family | VPV |
| Operating pressure, max. [bar] | 210.0 |
| Max. flow [l/min] | 144.0 |
| Controls | with hydraulic actuation |
| Through-drive | with |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 31.7 mm with fitting key |
| Mounting flange | 2-hole mounting flange 127-2 according to ISO 3019-1 |
| Connection type, working port | Flange connection |
| Hydraulic fluid | HEES; HEPG; HETG; HFDU; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | FKM |
| Weight [kg] | 58 |
