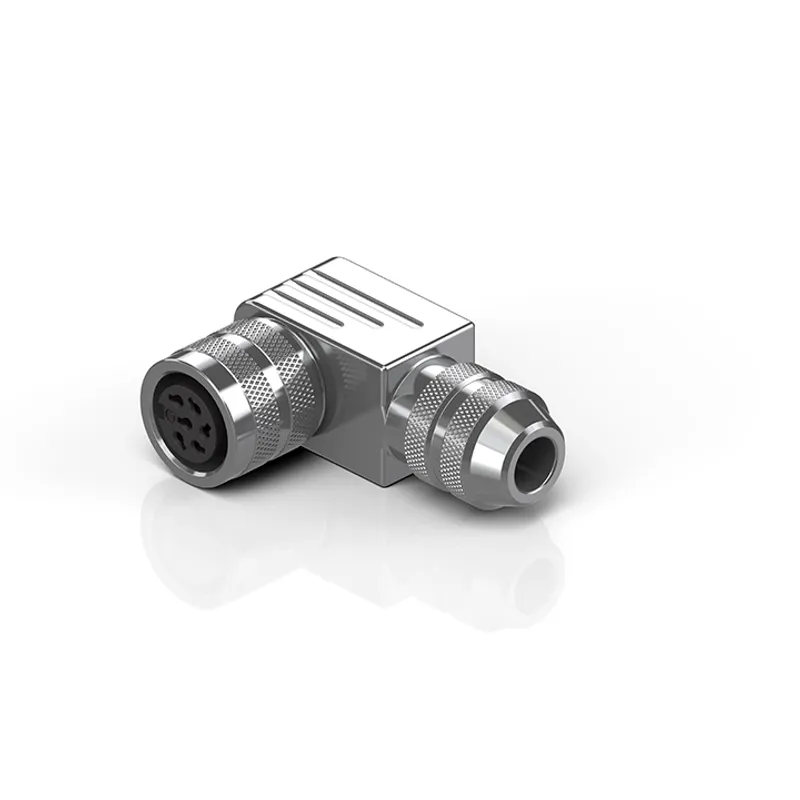

Beckhoff ZS3100-0841

Socket field assembly, PROFIBUS-DP, IP67, shielded

MPN
ZS3100-0841
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZS3100-0841?

Socket field assembly, Profibus-DP, IP67, M16, angled, female, 6-pin

Specifications

Specifications

Shieldingyes
Installation sizeM16
Connector typesocket
Contact typefemale
Number of positions (face)6-pin
Rated current5 A at 40°C
Rated voltage250 V
Mating cycles≥ 500
Wire terminationsolder connection
Max. wire cross-sectionAWG20 (0.5 mm²)
Max. cable outer diameter6.0...8.0 mm
A154.00 mm
A237.40 mm
A320.00 mm
A430.80 mm
A5Ø18
A6M16 x 0.75 mm

ZS3100-0841: frequently asked questions

When can ZS3100-0841 be shipped?

ZS3100-0841 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZS3100-0841 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZS3100-0841 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS3100-0841, subject to availability and destination.
