Beckhoff ZS3100-0831

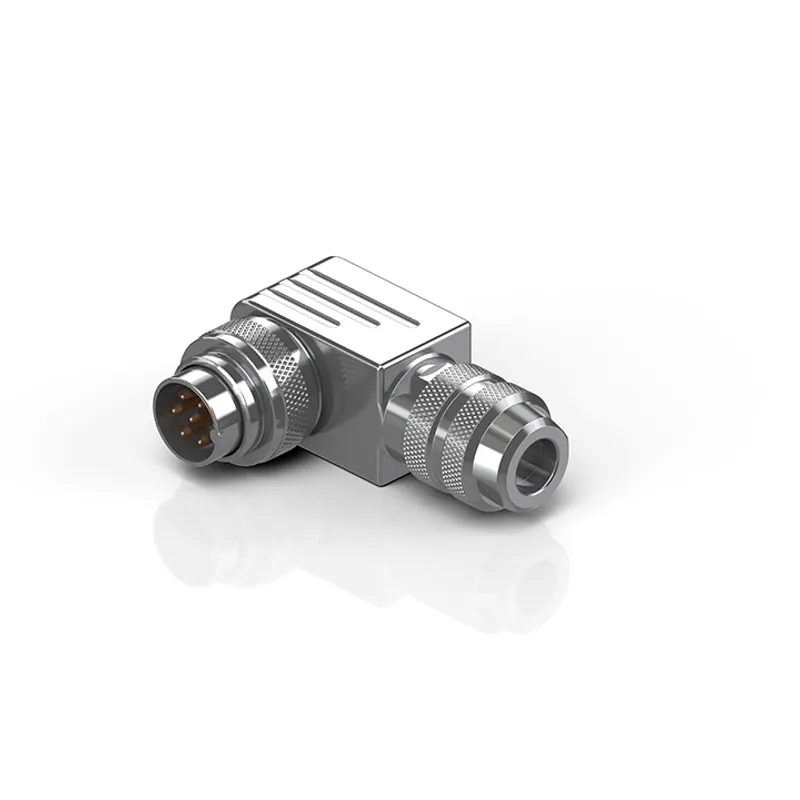

Plug field assembly, PROFIBUS-DP, IP67, shielded
- MPN
- ZS3100-0831
- Category
- EtherCAT and fieldbus connectors
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZS3100-0831?
Plug field assembly, Profibus-DP, IP67, M16, angled, male, 6-pin
Specifications
Specifications
| Shielding | yes |
| Installation size | M16 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 6-pin |
| Rated current | 5 A at 40°C |
| Rated voltage | 250 V |
| Mating cycles | ≥ 500 |
| Wire termination | solder connection |
| Max. wire cross-section | AWG20 (0.5 mm²) |
| Max. cable outer diameter | 6.0...8.0 mm |
| Material | metal |
| A1 | 55.00 mm |
| A2 | 37.10 mm |
| A3 | 20.00 mm |
| A4 | 30.80 mm |
| A5 | Ø18 |
| A6 | M16 x 0.75 mm |
No matching specifications
ZS3100-0831: frequently asked questions
When can ZS3100-0831 be shipped?
ZS3100-0831 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZS3100-0831 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZS3100-0831 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS3100-0831, subject to availability and destination.
