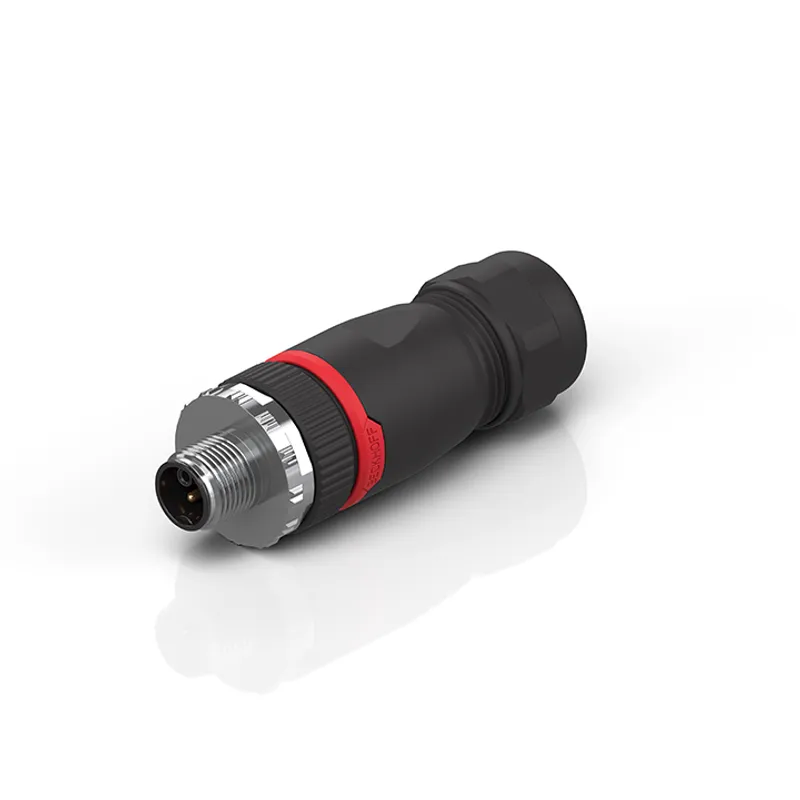

M12, power, field assembly, plug, straight, male, 5-pin, K-coded, IP67
M12, plug, straight, male, 4-pin
| Installation size | M12 |
| Connector type | plug |
| Contact type | male + female (PE inverse) |
| Number of positions (face) | 5-pin (4+PE) |
| Coding | K-coded |
| Rated current | 12 A at 40°C (according to IEC 61076-2-111) |
| Rated voltage | 63 V AC/DC |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 |
| Wire termination | screw connection |
| Max. wire cross-section | AWG20…AWG12 (0.75 mm²…2.50 mm²) |
| Max. cable outer diameter | 8.0…12 mm |
| A1 | ~70 mm |
| A2 | Ø 24 mm |
| A3 | AF22 |
No matching specifications
ZS2020-2711 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for ZS2020-2711 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS2020-2711, subject to availability and destination.
