Power connectors Parts
Beckhoff

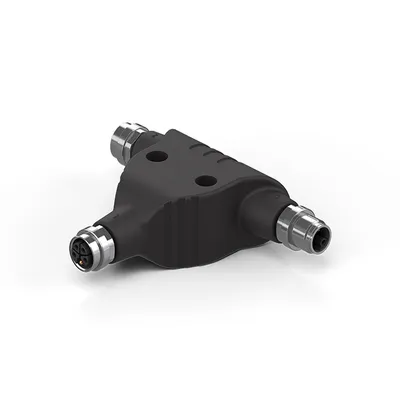

ZS2030-4812M12, T splitter, 1 x M12, plug, straight, male, L-coded – 2 x M12, socket, straight, female, L-coded, pin assignment 1:1
Compare Power connectors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connector type | Number of positions (face) | Max. wire cross-section | A1 | A2 |
|---|---|---|---|---|---|
| ZS2000-2310 | plug | 4-pin | AWG20 (0.5 mm²) | 47.00 mm | Ø 14.00 mm |

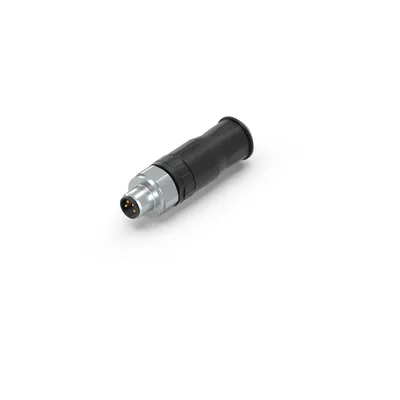

| ZS2000-2311 | plug | 4-pin | AWG22 (0.34 mm²) | 47.00 mm | Ø 14.00 mm |

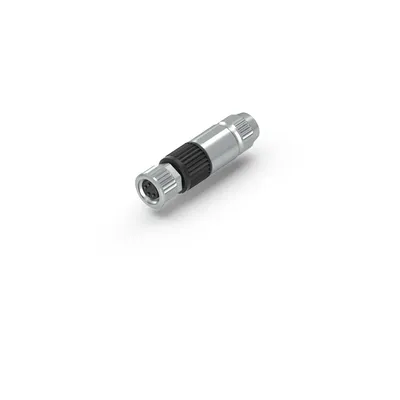

| ZS2000-1323 | socket | 4-pin | AWG26 ... AWG22 (0.14 mm² ... 0.34 mm²) | 42.00 mm | 11.50 mm |

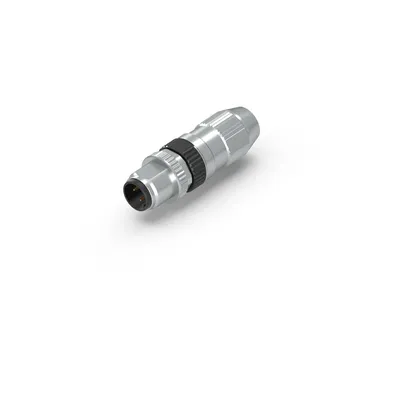

| ZS2000-1613 | plug | 4-pin | AWG26 ... AWG22 (0.14 mm² ... 0.34 mm²) | 47.00 mm | 15.50 mm |

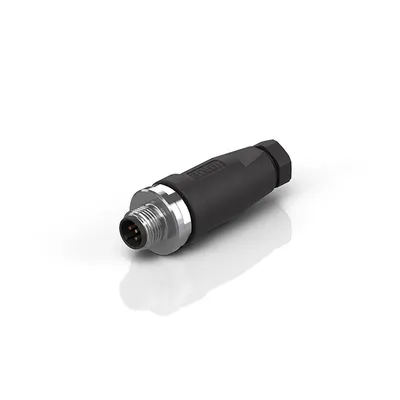

| ZS2000-6610 | plug | 4-pin | max. 0.75 mm² (AWG18) | 61.00 mm | 20.00 mm |

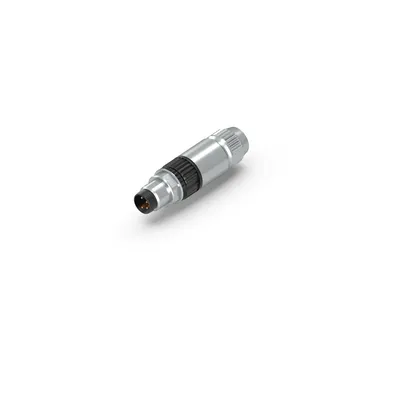

| ZS2000-1313 | plug | 4-pin | AWG26 ... AWG22 (0.14 mm² ... 0.34 mm²) | 41.00 mm | 11.50 mm |
| ZS2000-2321 | socket | 4-pin | AWG22 (0.34 mm²) | 40.00 mm | Ø 14.00 mm |

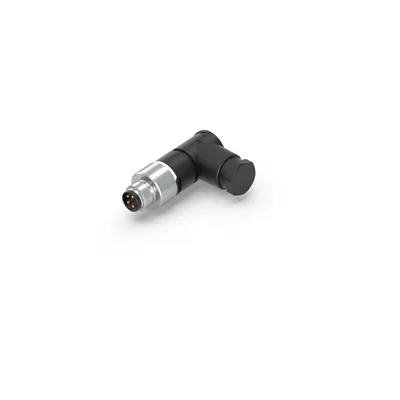

| ZS2000-2331 | plug | 4-pin | AWG24 (0.25 mm²) | 35.00 mm | Ø 12.00 mm |
| ZS2000-2340 | socket | 4-pin | AWG26...AWG20 (0.14 mm²...0.5 mm²) | 28.50 mm | Ø12.00 mm |

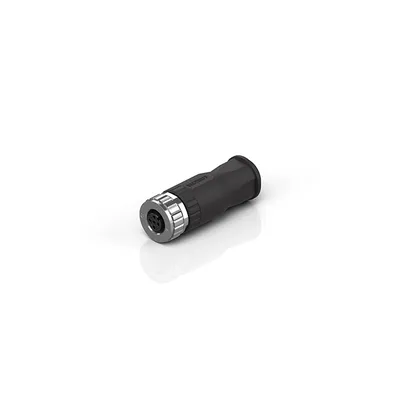

| ZS2000-6620 | socket | 4-pin | max. 0.75 mm² (AWG18) | 44.00 mm | Ø 20.00 mm |

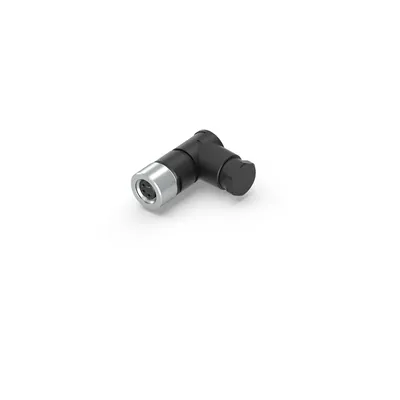

| ZS2000-2341 | socket | 4-pin | AWG24 (0.25 mm²) | 28.50 mm | Ø12.00 mm |
| ZS2000-2330 | plug | 4-pin | AWG26...AWG20 (0.14 mm²...0.5 mm²) | 35.00 mm | Ø 12.00 mm |
| ZS2000-2220 | socket | 3-pin | AWG20 (0.5 mm²) | 41.00 mm | 14.00 mm |
| ZS2000-2221 | socket | 3-pin | AWG22 (0.34 mm²) | 41.0 mm | Ø14.0 mm |

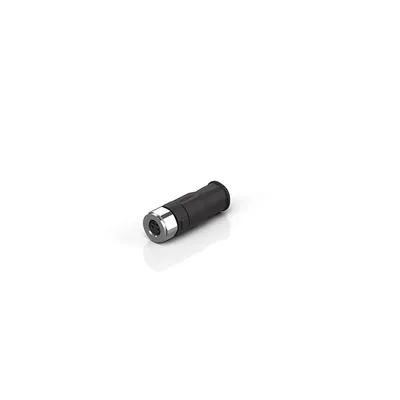

| ZS2000-2320 | socket | 4-pin | AWG20 (0.5 mm²) | 40.00 mm | Ø 14.00 mm |

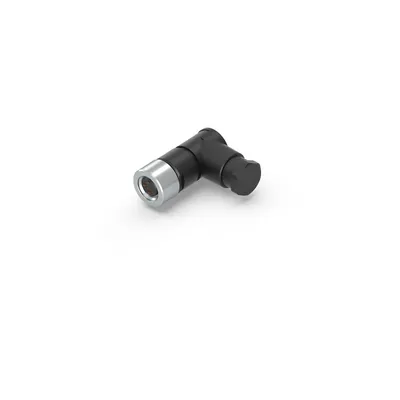

| ZS2000-2241 | socket | 3-pin | AWG24 (0.25 mm²) | 25.00 mm | 28.00 mm |

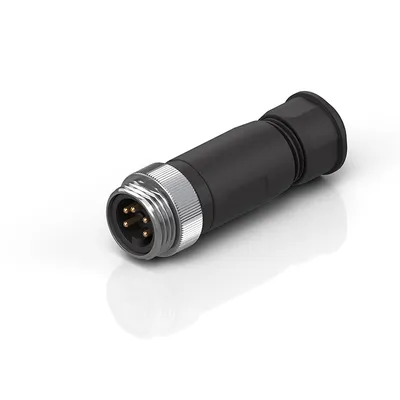

| ZS2020-2810 | plug | 5-pin | AWG16 (1.5 mm²) | — | — |

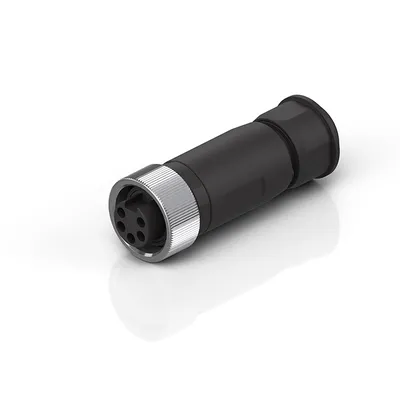

| ZS2020-2820 | socket | 5-pin | AWG16 (1.5 mm²) | — | — |

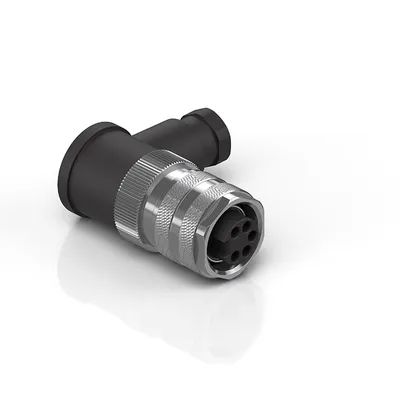

| ZS2020-2840 | socket | 5-pin | AWG16 (1.5 mm²) | — | — |

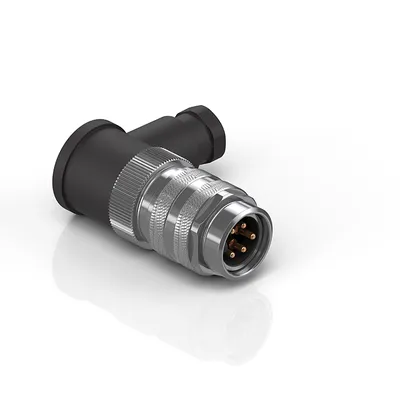

| ZS2020-2830 | plug | 5-pin | AWG16 (1.5 mm²) | — | — |
| ZS2030-4812 | T splitter | 5-pin (4+FE) | — | — | — |

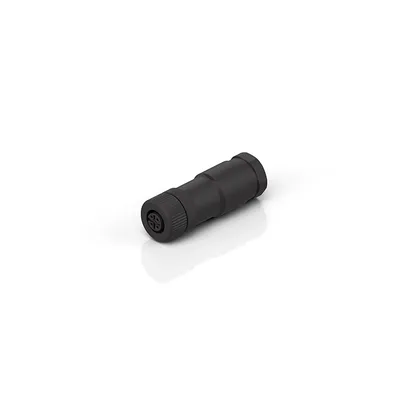

| ZS2000-2760 | socket | 5-pin | max. 0.75 mm² (AWG18) | 58.00 mm | Ø 20.00 mm |
| ZK2030-1112-0000 | flange | 5-pin | — | — | — |

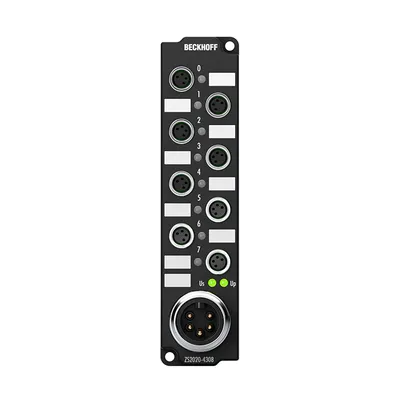

| ZS2020-4308 | — | — | — | — | — |
