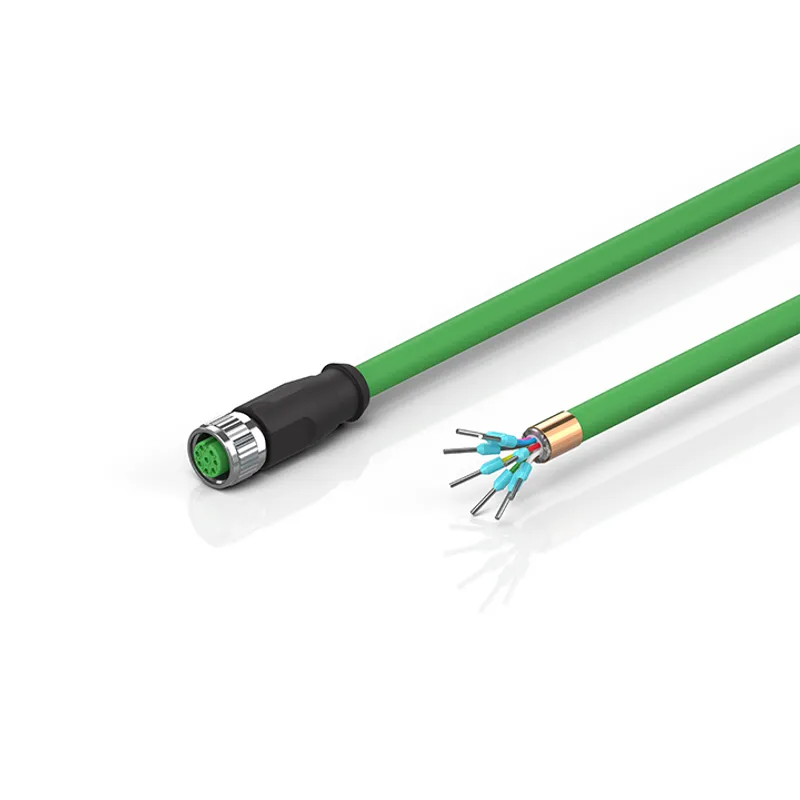

Beckhoff ZK4000-8200-2xxx
Encoder connection cable 0.25 mm² with M12 plug, drag-chain suitable
- MPN
- ZK4000-8200-2xxx
- Category
- Motor cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK4000-8200-2xxx?
M12, socket, straight, female, 8-pin, A‑coded – open end, 8-wire +
Specifications
Specifications
| Shielding | yes |
| Installation size | open end |
| Connector type | socket |
| Contact type | female |
| Number of positions (face) | 8-wire + shield |
| Coding | A‑coded |
| Rated current | 2 A at 40°C (according to IEC 61076-2-101) |
| Rated voltage | 30 V (according to IEC 61076-2-101) |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 (according to IEC 60512-9a) |
| Operating voltage | max. 300 V AC (UL), Uo/U 300/300 V (VDE) |
| Cross-section | 4 x 2 x 0.25 mm² |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 7.5 mm ± 0.3 mm (0.2952" ± 0.0118") |
| Min. bending radius, fixed installation | 8 x outer cable diameter |
| Max. number of cycles | 5 million |
| Jacket color | green |
| A1 | 44.00 mm |
No matching specifications
ZK4000-8200-2xxx: frequently asked questions
When can ZK4000-8200-2xxx be shipped?
ZK4000-8200-2xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK4000-8200-2xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK4000-8200-2xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK4000-8200-2xxx, subject to availability and destination.
