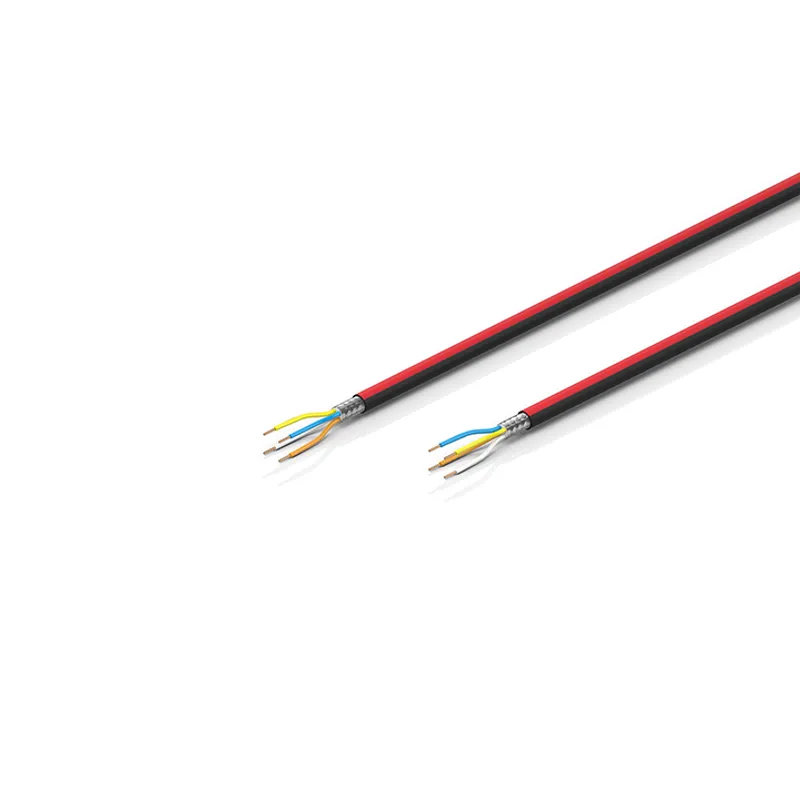

Beckhoff ZB7005
EtherCAT P cable, shielded, PUR, drag-chain suitable, 1 x 4 x AWG24, black with red stripe, OD = 5.7 mm (±0.3 mm), bending radius (R) = 40 mm
- MPN
- ZB7005
- Category
- EtherCAT and fieldbus cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff ZB7005?
EtherCAT P cable, shielded, PUR, drag-chain suitable, (1 x 4 x AWG24), black with red stripe, OD = 5.7 mm
Specifications
Specifications
| Operating voltage | ≤ 300 V |
| Cross-section (Ethernet) | 1 x 4 x 0.25 mm² (AWG24) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 5.7 mm ± 0.3 mm (0.2244" ± 0.0118") |
| Min. bending radius, moved | 10 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 10 million with R = 90 mm, 5 million with R = 60 mm, 2 million with R = 40 mm, 5 million with 30 x D (v = 2 m/s, a = 30 m/s²) |
| Jacket color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
ZB7005: frequently asked questions
When can ZB7005 be shipped?
ZB7005 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZB7005 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZB7005 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZB7005, subject to availability and destination.
