Home / I/O / Accessories / Cable by the meter / EtherCAT and fieldbus cables

EtherCAT and fieldbus cables Parts

Beckhoff

ZB9032

Industrial Ethernet/EtherCAT cable, shielded, PUR, 1 x 4 x AWG26, drag-chain suitable, Cat.5, green

Beckhoff

ZB9010

Industrial Ethernet/EtherCAT cable, shielded, PVC, 1 x 4 x AWG22, fixed installation, Cat.5, green

Beckhoff

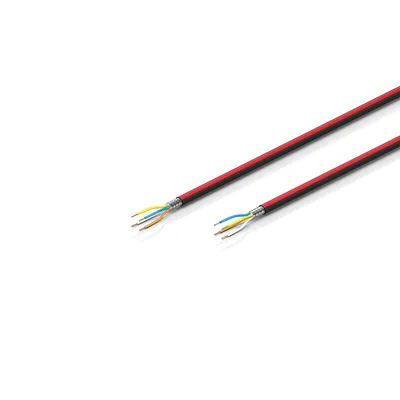

ZB7000

EtherCAT P cable, shielded, PUR, drag-chain suitable, 1 x 4 x AWG22/7, black with red stripe, OD = 6.5 mm (±0.2 mm)

Beckhoff

ZB9030

Industrial Ethernet/EtherCAT cable, shielded, PVC, 1 x 4 x AWG26, fixed installation, Cat.5, green

Beckhoff

ZB9031

Industrial Ethernet/EtherCAT cable, shielded, PUR, 1 x 4 x AWG26, drag-chain suitable, Cat.5, green

Beckhoff

ZB3200

PROFIBUS cable, 12 Mbaud, PVC, 1 x 2 x 0.34 mm², fixed installation

Beckhoff

ZB5200

DeviceNet® cable, 2 x 2 x 0.32 mm² (AWG22), PVC, shielded, fixed installation

Beckhoff

ZB7003

EtherCAT P cable, shielded, PUR, fixed installation, 1 x 4 x AWG22/7, black with red stripe, OD = 5.1 mm (±0.15 mm)

Beckhoff

ZB9013

Industrial Ethernet/EtherCAT cable, shielded, PVC, 2 x 2 x AWG22, fixed installation, Cat.5, yellow

Beckhoff

ZB9035

Industrial Ethernet/EtherCAT cable, shielded, PUR, 1 x 4 x AWG26, drag-chain suitable, Cat.5, yellow

Beckhoff

ZB9020

Industrial Ethernet/EtherCAT cable, shielded, PUR, 1 x 4 x AWG22, drag-chain suitable, Cat.5, green

Beckhoff

Z1190

EtherCAT cable, POF

Beckhoff

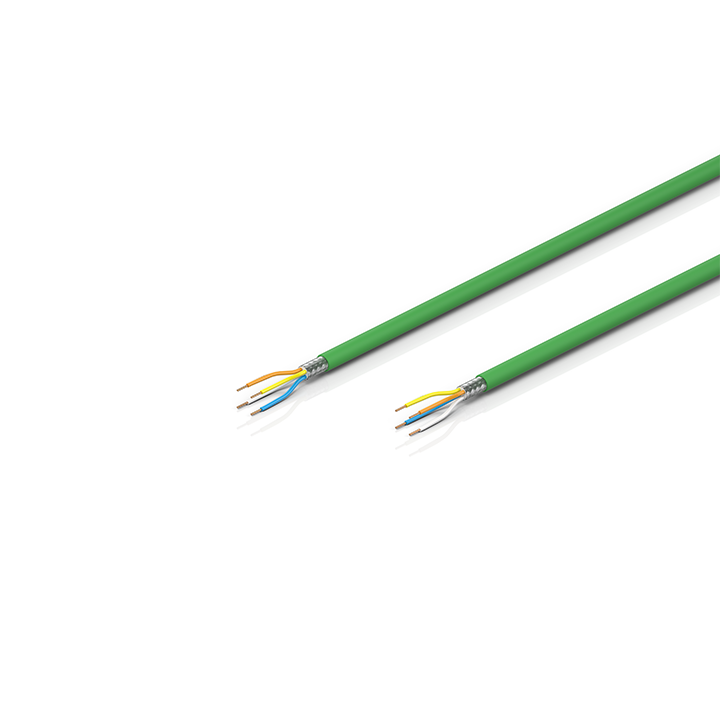

ZB9021

Industrial Ethernet/EtherCAT cable, shielded, PUR, 1 x 4 x AWG22, capable of torsion, Cat.5, green

Beckhoff

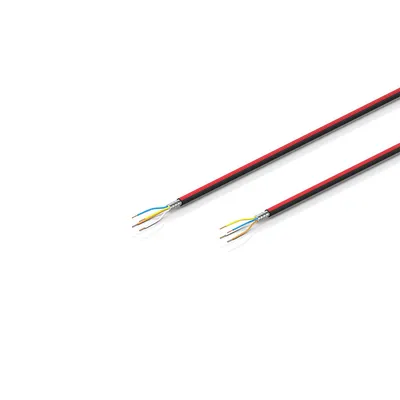

ZB7001

EtherCAT P cable, shielded, PUR, drag-chain suitable, 1 x 4 x AWG24/7, black with red stripe, OD = 5.2 mm (±0.2 mm)

Beckhoff

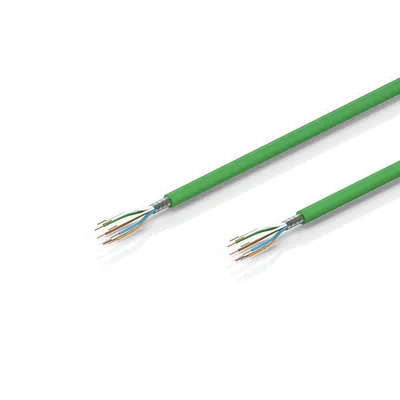

ZB9060-Rxxx

Industrial Ethernet cable, S/FTP, PUR, 4 x 2 x AWG26, fixed installation, Cat.7, green

Beckhoff

ZB9024

Industrial Ethernet/EtherCAT cable, shielded, PUR, 1 x 4 x AWG22, drag-chain suitable, Cat.5, yellow

Beckhoff

ZB7004

EtherCAT P cable, shielded, PUR, capable of torsion, 1 x 4 x AWG22/7, black with red stripe, OD = 6.3 mm (±0.2 mm)

Beckhoff

ZB3300

PROFIBUS cable, 12 Mbaud, 2 x 0.25 mm² + 3 x 0.75 mm², 5-wire, drag-chain suitable

Beckhoff

ZB5100

CANopen cable, 2 x 2 x 0.25 mm² (AWG24), PVC, shielded, fixed installation

Beckhoff

ZB3102

PROFIBUS connector D-sub 180° turned, with switchable termination resistor, IP20, for field installation

Beckhoff

ZB3101

PROFIBUS connector D-sub, with switchable termination resistor, programming interface, IP20, for field installation

Beckhoff

ZB3100

PROFIBUS connector D-sub, with switchable termination resistor, IP20, for field installation

Beckhoff

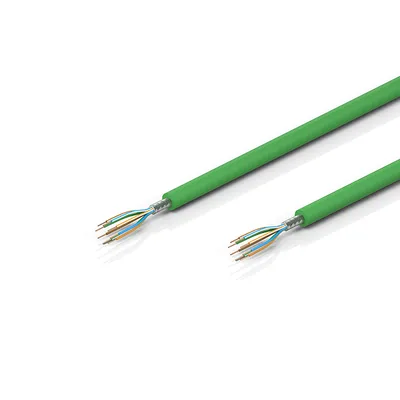

ZB9061-Rxxx

Industrial Ethernet/EtherCAT cable, SF/UTP, PUR, 4 x 2 x AWG26, drag-chain suitable, Cat.6, green

Beckhoff

ZB7005

EtherCAT P cable, shielded, PUR, drag-chain suitable, 1 x 4 x AWG24, black with red stripe, OD = 5.7 mm (±0.3 mm), bending radius (R) = 40 mm

Compare EtherCAT and fieldbus cables

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Cross-section (Ethernet)	Use	Material jacket	Outer cable diameter
ZB9032	1 x 4 x 0.14 mm² (AWG26)	drag-chain suitable	PUR (polyurethane)	5.4 mm ± 0.3 mm (0.213" ±0.0118")
ZB9010	1 x 4 x 0.34 mm² (AWG22)	fixed installation	PVC (polyvinyl chloride)	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")
ZB7000	1 x 4 x 0.34 mm² (AWG22)	drag-chain suitable	PUR (polyurethane)	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")
ZB9030	1 x 4 x 0.14 mm² (AWG26)	fixed installation	PVC (polyvinyl chloride)	4.9 mm ± 0.2mm (0.193" ± 0.0079")
ZB9031	1 x 4 x 0.14 mm² (AWG26)	drag-chain suitable	PUR (polyurethane)	4.8 mm ± 0.3 mm (0.189" ± 0.0118")
ZB3200	—	fixed installation	PVC (polyvinyl chloride)	8.0 mm ± 0.4 mm (0.3149" ± 0.0157")
ZB5200	—	fixed installation	PVC (polyvinyl chloride)	7.24 mm ± 0.2 mm (0.2850" ± 0.0079")
ZB7003	1 x 4 x 0.34 mm² (AWG22)	fixed installation	PUR (polyurethane)	5.1 mm ± 0.15 mm (0.200787" ± 0.0059")
ZB9013	1 x 4 x 0.34 mm² (AWG22)	fixed installation	PVC (polyvinyl chloride)	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")
ZB9035	1 x 4 x 0.14 mm² (AWG26)	drag-chain suitable	PUR (polyurethane)	5.4 mm ± 0.3 mm (0.213" ±0.0118")
ZB9020	1 x 4 x 0.34 mm² (AWG22)	drag-chain suitable	PUR (polyurethane)	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")
Z1190	—	drag-chain suitable	PUR (polyurethane)	6.4 mm
ZB9021	1 x 4 x 0.34 mm² (AWG22)	suitable for torsion/robotic application	PUR (polyurethane)	6.6 mm ± 0.2mm (0.259" ± 0.0079")
ZB7001	1 x 4 x 0.22 mm² (AWG24)	drag-chain suitable	PUR (polyurethane)	5.2 mm ± 0.2 mm (0.2047" ± 0.0079")
ZB9060-Rxxx	4 x 2 x 0.14 mm² (AWG26)	fixed installation	PUR (polyurethane)	6.2 mm ± 0.2mm (0.244" ± 0.0079")
ZB9024	1 x 4 x 0.34 mm² (AWG22)	drag-chain suitable	PUR (polyurethane)	6.5 mm ± 0.2 mm (0.2559" ± 0.0079")
ZB7004	1 x 4 x 0.34 mm² (AWG22)	suitable for torsion/robotic application	PUR (polyurethane)	6.3 mm ± 0.2 mm (0.248" ± 0.0079")
ZB3300	—	drag-chain suitable	PUR (polyurethane)	8.0 mm ± 0.4 mm (0.3149" ± 0.0157")
ZB5100	—	fixed installation	PVC (polyvinyl chloride)	6.90 ± 0.30 mm
ZB3102	—	—	—	—
ZB3101	—	—	—	—
ZB3100	—	—	—	—
ZB9061-Rxxx	4 x 2 x 0.14 mm² (AWG26)	drag-chain suitable	PUR (polyurethane)	7.80 ±0.20 mm
ZB7005	1 x 4 x 0.25 mm² (AWG24)	drag-chain suitable	PUR (polyurethane)	5.7 mm ± 0.3 mm (0.2244" ± 0.0118")
