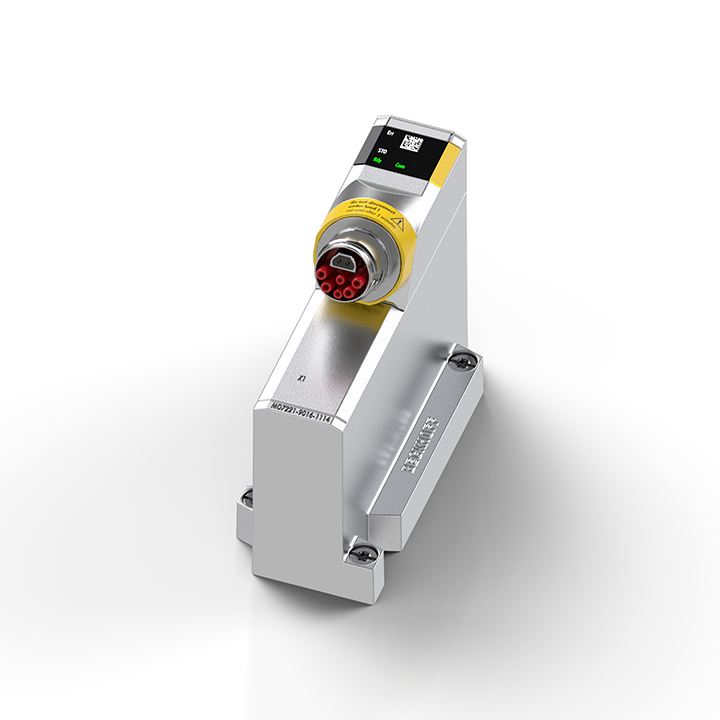

Beckhoff MO7221-9016-1114

1-channel motion interface, servomotor, 24 V DC/8 A, OCT, STO/SS1, B17

MPN: MO7221-9016-1114
Category: MO7xxx | Compact drive technology

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff MO7221-9016-1114?

The MO7221-9016-1114 allows the direct connection of a 24 V servomotor up to 8 A and the integration of STO/SS1 functions and TwinSAFE Logic. The encoder is integrated via an absolute value interface. Additionally, with One Cable Technology (OCT), the

Specifications

Product category	I/O modules
Category/version	compact drive technology
Connection method	B17 connector
Motor type	synchronous servomotors
Output voltage/current	24 V DC/8 A
Feedback	OCT
Peak current	16 A
Safety functions	STO, SS1, integrated TwinSAFE logic
Baseplate interface	data connector
Number of data slots	1
Operating temperature	0…50°C
Storage temperature	-25…+60°C
Protection rating	IP65/67
Approvals/markings	CE, UL (in preparation)
