MO7xxx | Compact drive technology Parts
Beckhoff

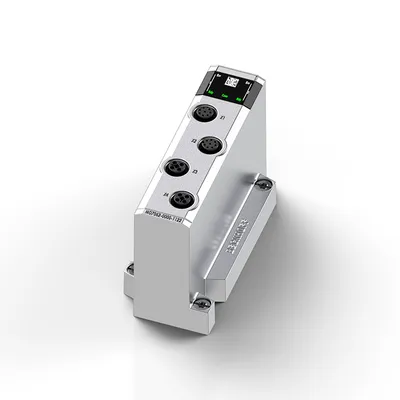

MO7062-0100-11222-channel motion interface, stepper motor, 48 V DC/3 A, with incremental encoder, M12
Beckhoff
MO7062-0100-11122-channel motion interface, stepper motor, 24 V DC/3 A, with incremental encoder, M12
Compare MO7xxx | Compact drive technology
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection method | Motor type | Output voltage/current | Feedback |
|---|---|---|---|---|
| MO7221-9016-1114 | B17 connector | synchronous servomotors | 24 V DC/8 A | OCT |
| MO7221-9016-1124 | B17 connector | synchronous servomotors | 48 V DC/8 A | OCT |
| MO7221-9018-1124 | B17 connector | synchronous servomotors | 48 V DC/8 A | OCT |
| MO7221-9018-1114 | B17 connector | synchronous servomotors | 24 V DC/8 A | OCT |
| MO7062-0100-1122 | M12 connector | stepper motor | 48 V DC/3 A | incremental encoder |
| MO7062-0100-1112 | M12 connector | stepper motor | 24 V DC/3 A | incremental encoder |
Common to all listed parts
| Product category | I/O modules |
| Category/version | compact drive technology |
| Baseplate interface | data connector |
| Number of data slots | 1 |
| Operating temperature | 0…50°C |
| Storage temperature | -25…+60°C |
| Protection rating | IP65/67 |
| Approvals/markings | CE, UL (in preparation) |
