Beckhoff KL9181

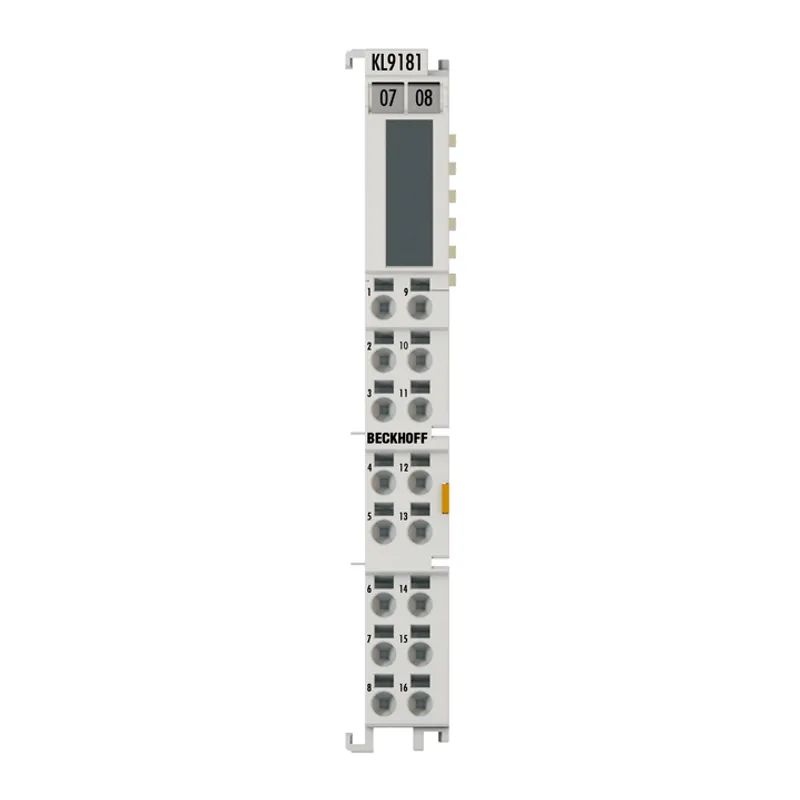

Potential distribution terminal, 8 x 2 potentials

MPN: KL9181
Category: KL9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9181?

The potential distribution terminal KL9181 provides 16 terminal points for potential distribution and enables the voltage to be picked up without further bus terminal blocks or wiring. The power contacts are fed through to the next terminal without

Specifications

Number of separate potentials	2
Terminal points per potential	8
Current load	max. 10 A (per terminal point)
Power LED	–
Defect LED	–
Current consumption K-bus	–
Nominal voltage	≤ 60 V AC/DC
Electrical isolation	500 V (K-bus/field potential)
Shield connection	–
K-bus, looped through	yes
Power contacts looped through	yes (2 power contacts)
Bit width in the process image	–
Electrical connection to DIN rail	–
Configuration	no address or configuration setting
Special features	2 x 8-way bridges
Weight	approx. 60 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	solid conductors (s): direct plug-in technique; fine-stranded conductors (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Stripping length	8…9 mm
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
