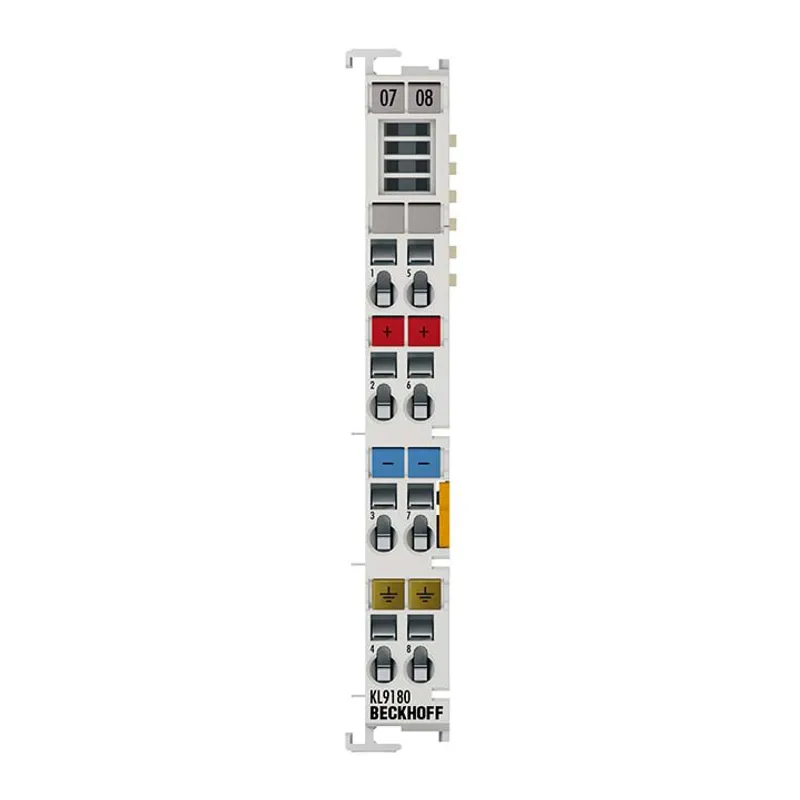

Beckhoff KL9180

Potential distribution terminal, 2 x 24 V DC; 2 x 0 V DC, 2 x PE

MPN: KL9180
Category: KL9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL9180?

The KL9180 Bus Terminal allows the supply voltage to be accessed a number of times via spring force terminals. The Bus Terminal makes it unnecessary to use additional terminal blocks on the terminal

Specifications

Current load	≤ 10 A
Integrated fine-wire fuse	–
Power LED	–
Defect LED	–
Diagnostics	–
Current consumption K-bus	–
Nominal voltage	arbitrary up to 230 V AC
Electrical isolation	–
Reported to K-bus	–
Shield connection	–
Renewed infeed	–
Connection facility to additional power contact	2
K-bus, looped through	yes
Bit width in the process image	0
Electrical connection to DIN rail	–
Housing width	12 mm
Weight	approx. 50 g
Side by side mounting on Bus Terminals with power contact	yes
Side by side mounting on Bus Terminals without power contact	–
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE, CCC, UL, ATEX, IECEx, DNV
Ex marking	ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
