Beckhoff KL2545

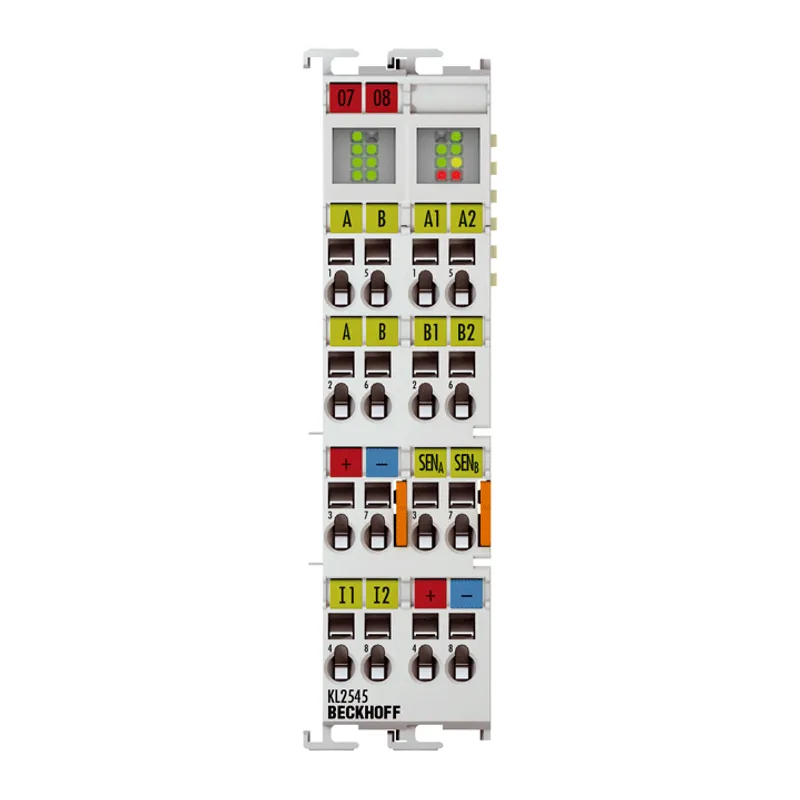

Bus Terminal, 2-channel PWM output, 8…50 V DC, 3.5 A, current-controlled

MPN: KL2545
Category: KL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KL2545?

The KL2545 output terminal controls an output current via pulse width control of the supply voltage. It is galvanically isolated from the K-bus. The current value (0 to ±3.5 A) is specified by the automation device via a 16 bit value. The output stage is

Specifications

Number of outputs	2
Nominal voltage	8…50 V DC
Load type	inductive > 1 mH, valves, coils
Max. output current	2 x ±3.5 A (short-circuit proof, thermal-overload proof for both channels together)
PWM clock frequency	36 kHz
Duty factor	0…100% (current-controlled)
Resolution	max. 12 bit
Electrical isolation	500 V (K-bus/field potential)
Current consumption power contacts	typ. 30 mA + load
Current consumption K-bus	typ. 100 mA
Bit width in the process image	48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status
Configuration	no address setting, configuration via Bus Coupler or controller
Weight	approx. 100 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Pluggable wiring	for all KSxxxx Bus Terminals
Approvals/markings	CE
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	24 mm x 100 mm x 68 mm
