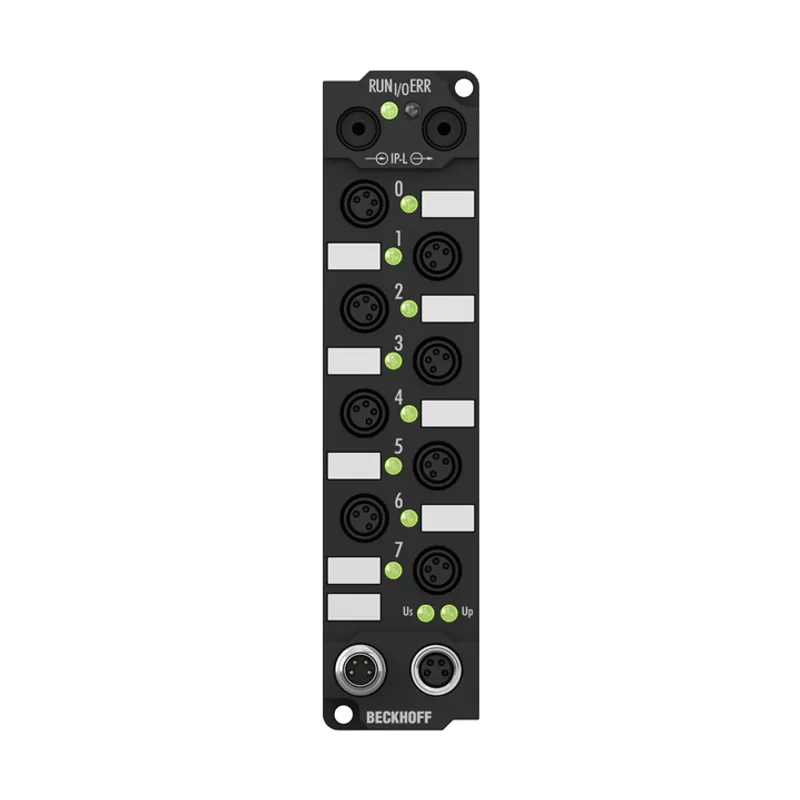

Beckhoff IE2400

Extension Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8

MPN
IE2400
Price and lead time confirmed within 1 business day

Discontinued by Beckhoff — we can still source the original IE2400 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff IE2400?

The IE2400 digital I/O module has sixteen channels that can be used as eight inputs and eight outputs. The device can therefore be flexibly adapted to the requirements of the application. The signals are connected through snap type 8 mm diameter

Beckhoff IE2400 — Extension Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, Ø8. Beckhoff service-phase product: no longer in the current range. PartnerPLC sources discontinued and surplus Beckhoff automation parts — request a quote for price, condition and lead time.

Specifications

Technical data

LifecycleService phase (discontinued, no longer in Beckhoff's product range)
Number of channels8 inputs + 8 outputs
Input/output connections8 mm, snap type
Input filter3 ms
Signal voltage “0”-3…+5 V
Signal voltage “1”11…30 V, 6 mA input current (EN 61131-2, type 2)
Sensor supplyfrom control voltage, max. 0.5 A, short-circuit proof in total
Load typeresistive, inductive, lamp load
Rated load voltage24 V DC (-15%/+20%)
Max. output current0.5 A per channel, individually short-circuit proof
Short-circuit currenttyp. 1.5 A
Auxiliary power currenttyp. 20 mA per channel
Current consumption from U S (without sensor current)25 mA
Power supply connectionfeed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, A-coded
Bit width in the process image8 inputs + 8 outputs
Electrical isolationchannels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link
Operating temperature0…55°C
Storage temperature-45…+85°C
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.IP65/66/67 (conforms to EN 60529)/variable
Approvals/markingsCE, UL

IE2400: frequently asked questions

Can I still buy the IE2400 now that it is discontinued?

Yes. Beckhoff has discontinued the IE2400, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can IE2400 be shipped?

IE2400 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up IE2400 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for IE2400 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for IE2400, subject to availability and destination.
