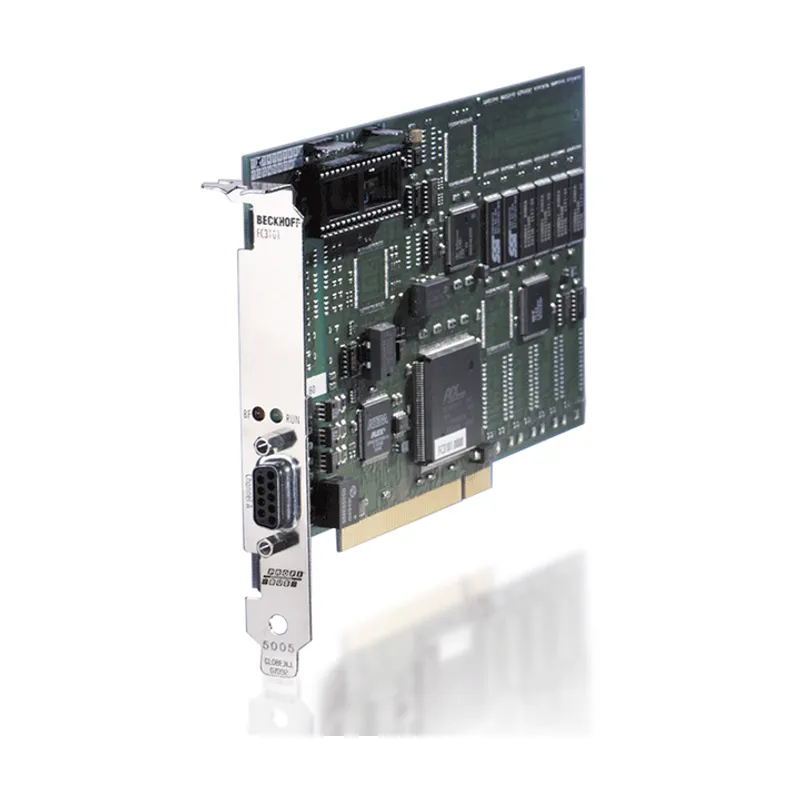

Beckhoff FC3101

PROFIBUS master/slave card, 1 channel, PCI™

MPN: FC3101
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff FC3101?

PROFIBUS DP, DP-V1 and DP-V2 (MC): the PROFIBUS PCI™ Fieldbus Cards from Beckhoff can master the PROFIBUS protocol with all its features. Thanks to the PROFIBUS chip developed in-house, the cards are equipped with the latest version of the PROFIBUS

Specifications

Fieldbus	PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant)
PC interface	PCI™
Number of channels	1
Data transfer rates	9.6 kbaud…12 Mbaud
Bus interface	1 x D-sub socket, 9-pin, galvanically decoupled
Cycle time	differing DP cycle times per slave are possible using the CDL concept
Bit width in the process image	per channel total max.: 3 kbyte input and output data
NOVRAM	–
Hardware diagnostics	2 LEDs per channel
Dimensions (W x H x D)	single slot, approx. 106 mm x 175 mm
Operating temperature	0…55°C
